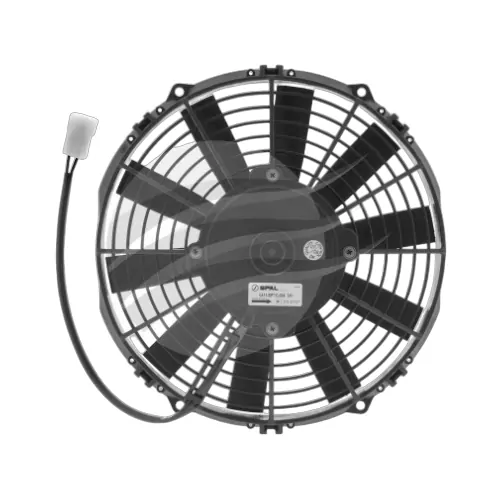

The VA11-BP7/C-29A (EF3513) 24v 10" SPAL Puller Fan is a Low-Profile Thermo Fan featuring a Finger Guard Shroud and a Straight Blade Design which can pull up to 765cfm / 1300m3/h.
The EF3513 10" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3513 10" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA11-BP7/C-29A |
| Voltage | 24V |
| Flow Type | Puller |
| Blade Diam. | 10 inch (255mm) |
| Blade Type | Straight |
| Shroud Type | Finger Guard |
| Amps | 4.7 |
| CFM | 765 |
| M3/H | 1300 |
| Spec. Sheet | View Specifications  |
| EF3513 10" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 269mm / 10.59" |
| B | 284mm / 11.18" |
| C | 142mm / 5.49" |
| D | 247mm / 9.74" |
| E | 52mm / 2.05" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. title=" More" href=" ?filter.p.tag=SPAL+Accessory">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3513 |
|---|---|
| Barcode # | 9316042080896 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.052m |
| Shipping Height | 0.284m |
| Shipping Length | 0.269m |
