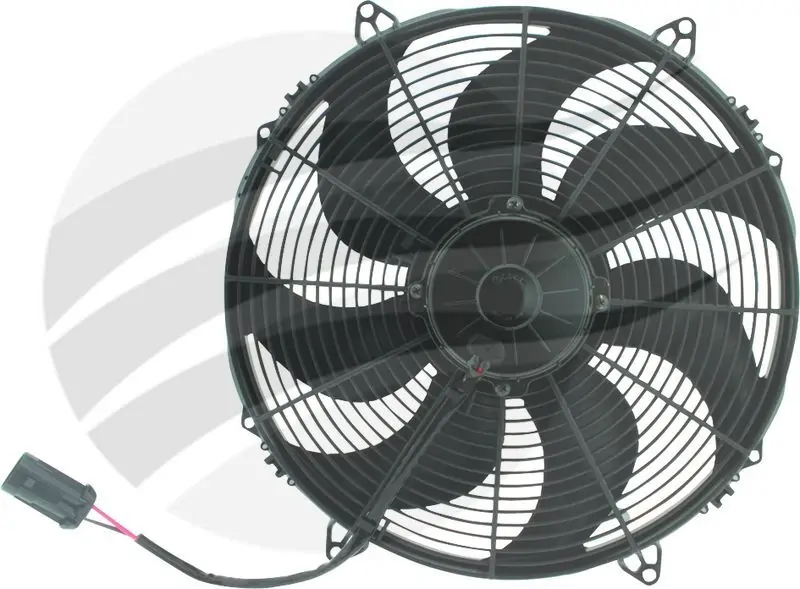

The VA33-AP91/LL-65A (EF3560) 12v 16" SPAL Puller Fan features a Skew (curved) Blade Design which can pull up to 2016cfm / 3417m3/h.
Individually balanced for long life, the EF3560 16" SPAL Puller Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3560 16" SPAL THERMO FAN DETAILS | |
|---|---|
| Spal Fan Model # | VA33-AP91/LL-65A |
| U.S. Part # | 30102803 |
| Voltage | 12V |
| Flow Type | Puller |
| Blade Diam. | 16 inch (385mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 29.1 |
| CFM | 2016 |
| M3/H | 3417 |
| Spec. Sheet | View Specifications  |
| Included | SPAL Fan w/Metri Pack Connector See SPAL Accessories for Mounts etc. |
| EF3560 16" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 399mm / 15.71" |
| B | 382.4mm / 15.04" |
| C | 220.8mm / 8.69" |
| D | 399mm / 15.71" |
| E | 112.1mm / 4.41" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. title=" More" href=" ?filter.p.tag=SPAL+Accessory">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3560 |
|---|---|
| Barcode # | 9316042393262 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.112m |
| Shipping Height | 0.382m |
| Shipping Length | 0.399m |
