Without Housing
Replaces 5007972
Fits 200-300HP (2009 & Up)

Contains

BLA Code	Description	O.E #	Qty
S18-2557	Gasket, Water Pump	338484	1
S18-4579	Plate, Outer Wear	338485	1
S18-7963	Seal, Impeller Plate	331353	1
S18-3059	Impeller	5001593	1
S18-71336	O-Ring, Impeller to Plate	302035	1
S18-3299	Key, Impeller	331107	1
S18-4549	Cup, Insert	338486	1
S18-7143	O-Ring, Cup to Housing	331188	1
S18-4571	Housing, Impeller	360347	1
S18-71338	O-Ring, Water Tube	346865	4
S18-9084	Cover, Impeller Housing	354578	1
S18-1597	Screw, Housing	302325	4
S18-3135	Screw, Cover to Housing	306643	2
S18-2704	Grommet, Pump to Exhaust Housing	320943	1
S18-1824	Grommet, Sleeve, 20" Models	349354	1
S18-1826	Grommet, Sleeve, 25" and 30"	338601	1
S18-1822	Sleeve, Extension 25" Models	354580	1

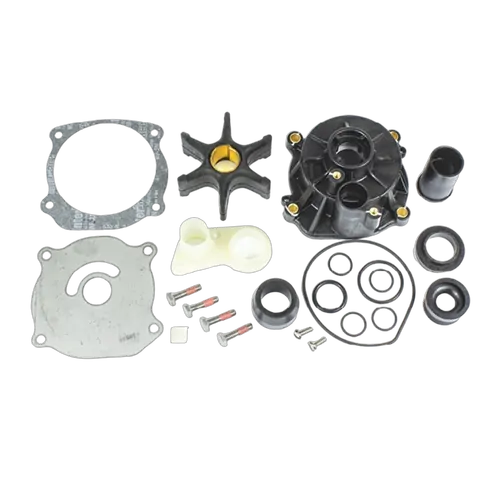

Sierra Water Pump Kit BRP With Housing

SKU: S18-3472

Sold out

$218.99 MATES’ RATE

Unlock Mates'Rate and Save. Login or Join Free

SAVE $80.91

REG $299.90

$299.90 REG

$218.99 MATES’ RATE
