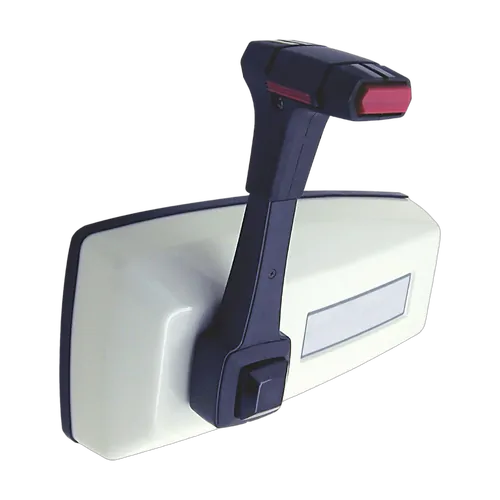

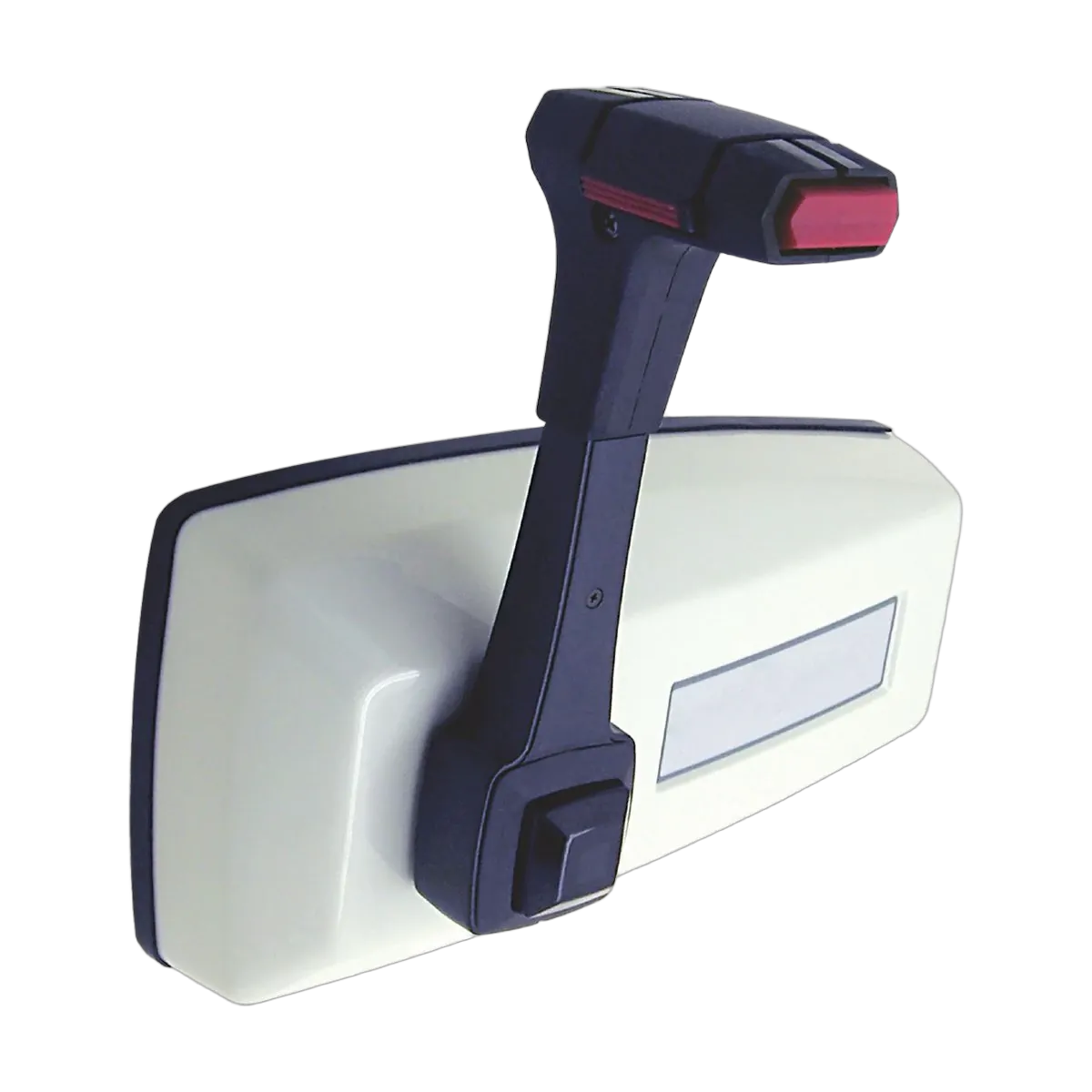

Dual Function Control

Side mount outboard style single lever control, suitable for use with outboards and stern drives, but can be used with inboards with hydraulic gearboxes.

Features
• Lever operates both shift and throttle
• Surface mounts horizontally or vertically on port or starboard
• Easy distinctive action with positive detent for shifts
• Adjustable throttle friction
• Push button disengagement of shift for neutral throttle warm up
• Can only shift at low RPM thereby protecting gearbox
• Dual station capability (requires exchangers – refer page 1238)
• Optional neutral safety switch to ensure engine start can only occur when in neutral

Cables
Accepts universal 3300/33C series Cables, CC230, CC330, CC332, CX632 and CCX633.

Materials
• Die-cast zinc alloy frame
• Gold passivated steel link plates
• High impact ABS dress covers

Accessories
301025 Optional neutral safety switch
