Built for life on the move, the Scanstrut Ventura Series delivers compact, durable utility sockets for overlanders, vanlifers, and RV explorers. The Ventura XT60 Solar Connector works seamlessly with the rest of the Ventura Series, integrating power, water, solar, and more into a compact, clean, and unified look for your exterior connections.

This Ventura product utilises the 30A, 500V DC XT60EW-M gold-plated 2-pin connector commonly used in solar power systems and portable power stations (power banks). This compact, robust and reliable connector allows you to easily connect a range of devices, from charging or maintaining your onboard battery using solar panels or mains chargers, to powering gear outside your vehicle.

Designed using Scanstrut's renowned marine engineering expertise, this Ventura Series product has been rigorously tested for UV exposure and waterproofing. Featuring marine-grade 316 stainless steel components, it will deliver long-lasting performance in the harshest environments. It features a sleek, low-profile design, IP68 & IP69K waterproof rating, and a spring-loaded, click-shut lid, keeping your connections safe and your adventures powered, wherever the road takes you.

Features

• IP68 & IP69K waterproof  - seals out everything from desert dust to torrential downpours & industrial-grade washdowns

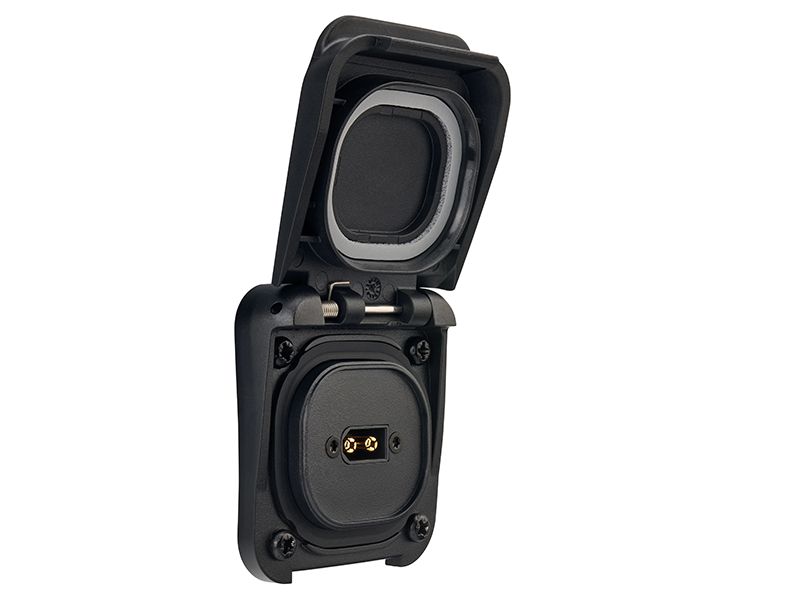

• Spring-loaded lid - premium-feel, click-shut lid with 90° hold-open feature keeps water off your plug while in use
• Rugged durability - marine-grade 316 stainless-steel hardware stands up to the harshest conditions
• UV resistant  - materials resist fading & degradation during prolonged sun exposure

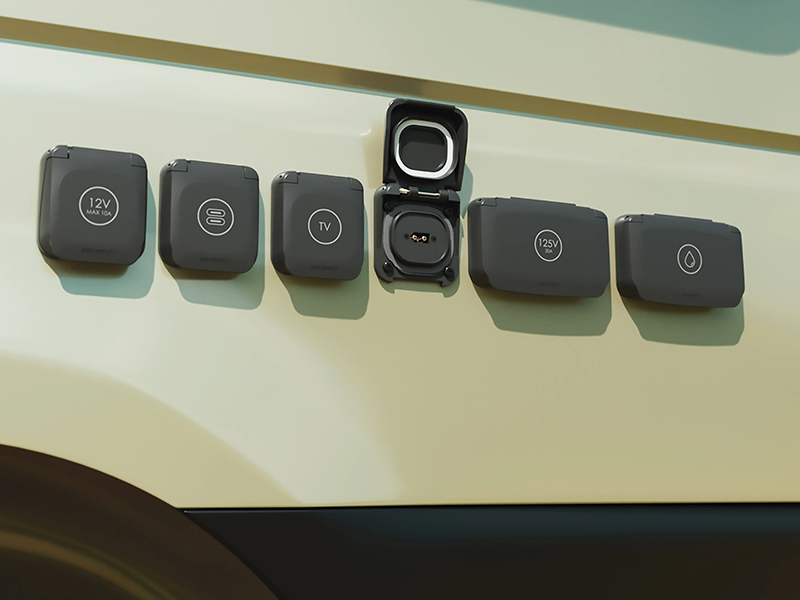

• Cohesive look - consistent design across every product in the Ventura Series
• Compact & uniform - low-profile socket fits tight panel spaces
• Connectivity - fast, easy external connection for powering and charging
• Easy installation - standard hole size and integrated gasket for fast, watertight mounting

Specifications

• Connector type: Amass XT60EW-M Male Waterproof Type
• Compatible connectors: XT60W-F Female Waterproof Type (IP65 in use) & XT60-F Standard Female Type
• Max. connector current: 30A continuous (60A surge)
• Max. connector voltage: 500V DC
• Power delivery: 360W@12V | 720W@24V | 1440W@48V
• Ingress protection rating: IP68, IP69K front only - lid closed

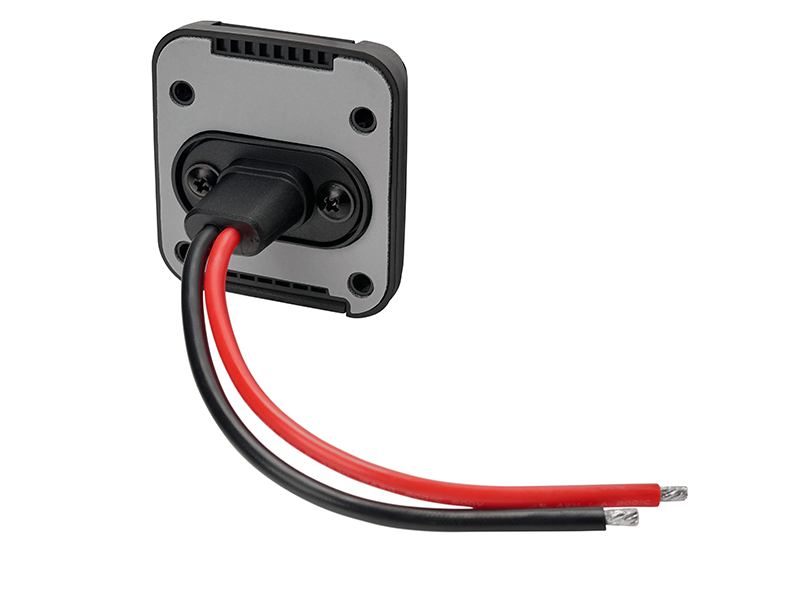

• Cable connection: 4mm2 (12AWG) tinned copper cable, 150mm long
• Overall dimensions of outlet (visible part): 60.3 (W) x 68.0 (H) x 16.0 (D) mm
• Depth required behind mounting surface: approx. 50mm minimum
• Maximum height with lid open: 119mm
• Certification: CE, UKCA, ROHS
