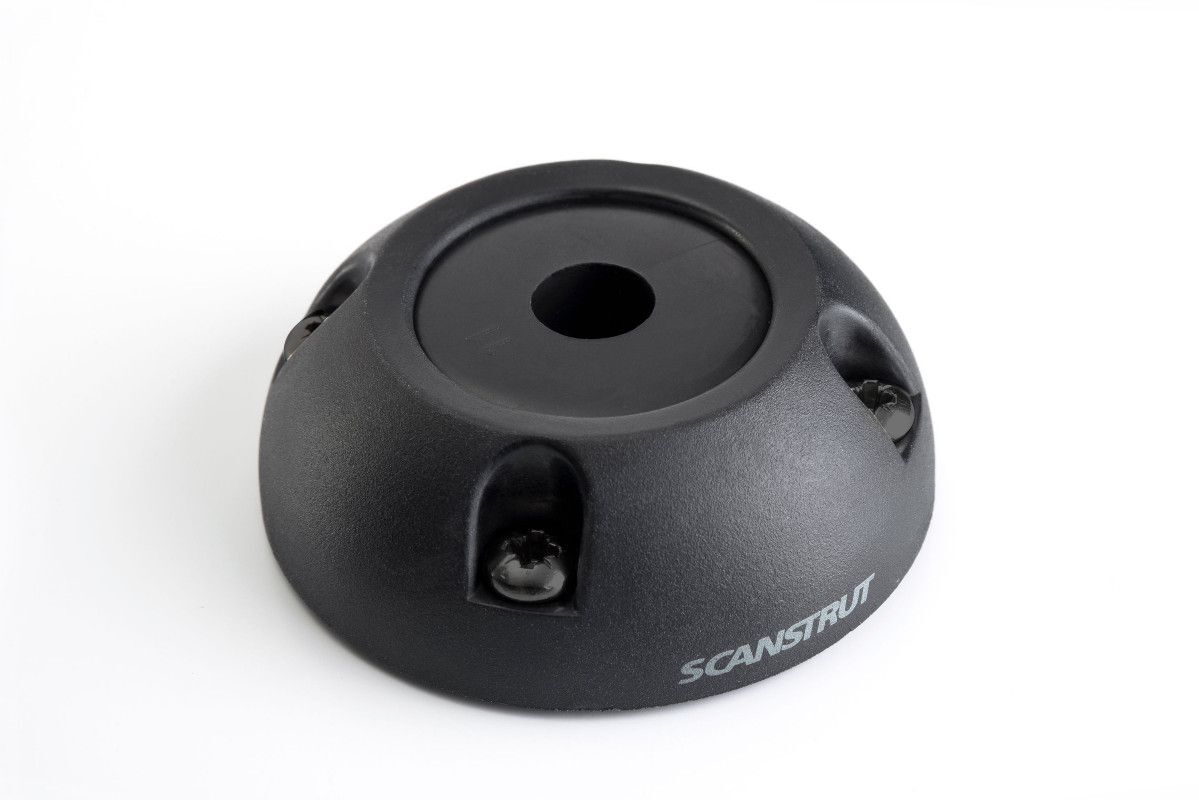

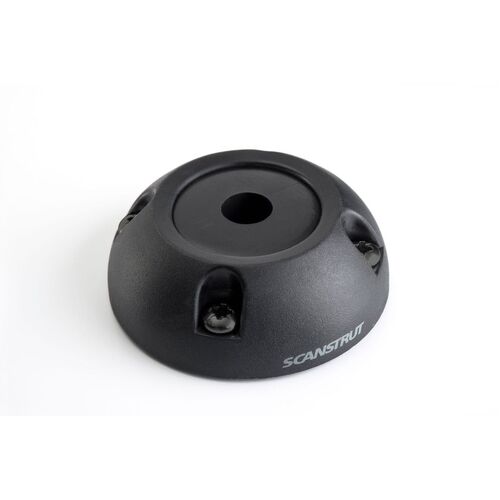

For cable seals from 9-14mm (0.16""-0.35"") and connectors up to Ø30mm (1.18""). The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.
Watertight Installation
The tapered bung is supplied with a closed base seal, to form a watertight seal, ensuring an IP68-rated watertight seal.
Easy and Reliable Installation
Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Split Bungs
The split-seal option makes installation even easier, as it does not require connectors up to Ø30mm (1.18"") to be removed during installation.
Key Features
- IP68 waterproof rated
- Made from premium marine-grade UV-stable materials
- Includes 316 stainless steel fixings and a waterproof 3M gasket
- Captive nuts ensure an easy and reliable repeat installation
- No messy sealant on bungs
- Split bungs for ease of installation
- Install connectors up to Ø30mm (1.18"") in diameter
- Fully customizable with self-drill bung options
Technical Specification
| Material | High Impact Plastic |
| Height | 20.5mm (0.81"") |
| Colour | Black |
| Diameter of Cable Seal | 59mm (2.32"") |
| Diameter of Cable | 9-14mm (0.35-0.55"") |
| Bungs | 1 x 9mm (0.35"") / 1 x 11mm (0.43"") / 1 x 13mm (0.51"") / 1 x Self Drill |
Installation Instructions : https://www.scanstrut.com/file/inline/upload/Cable_Seals/DS30-P-BLK/DS30_amp_DS40_Installation_Instructions_-_Issue_4_1.pdf
Technical Drawing : https://www.scanstrut.com/file/inline/upload/Cable_Seals/DS30-P-BLK/DS30-P-BLK-Techincal-Drawing.pdf
| SKU | 115686 |
|---|---|
| Barcode # | 9319786471500 |
| Brand | Scanstrut |
