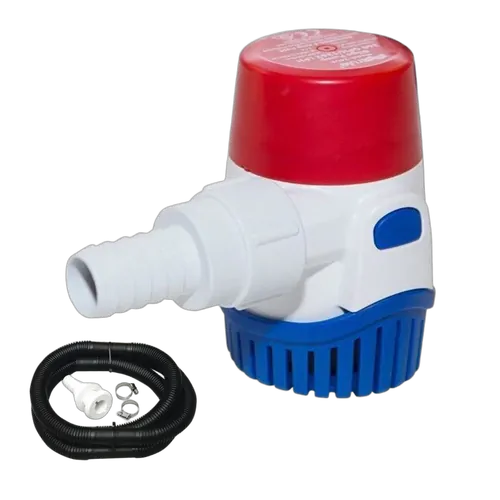

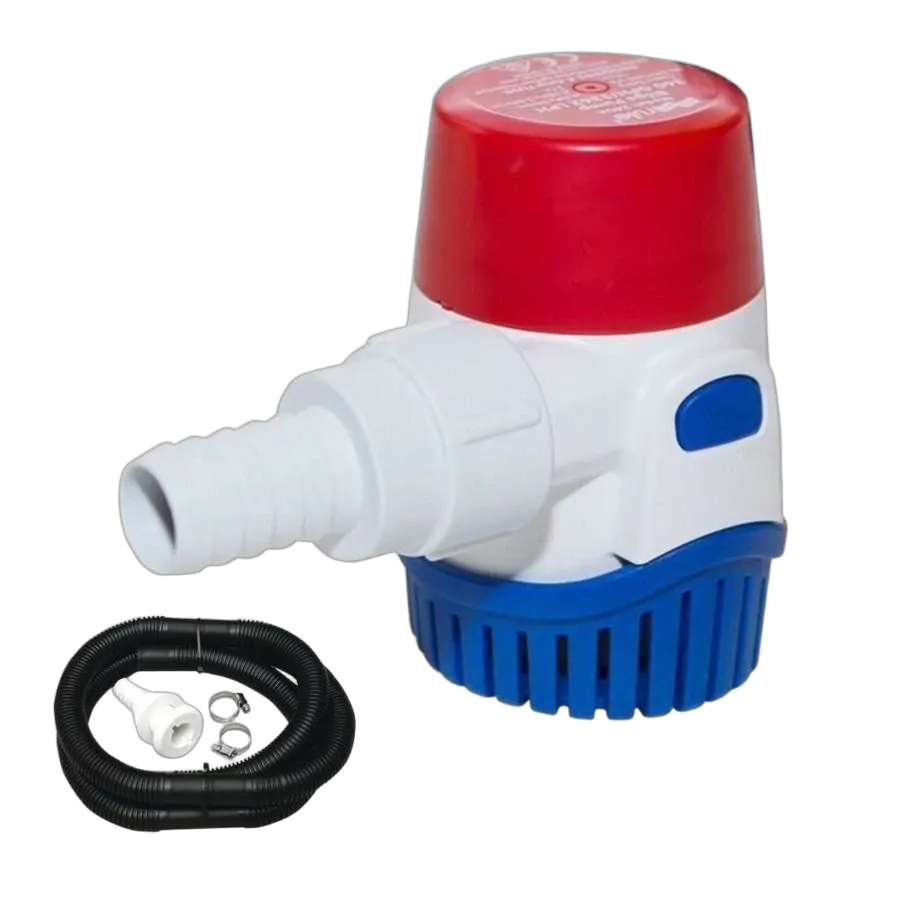

Next generation compact submersible 360 GPH electric pump for use as a bilge or bait pump on smaller craft. Totally submersible pump with water-cooled, ignition and TCO protected motor, stainless steel shaft and snap-on strainer base. This pump is extremely efficient, draws low current and offers high capacity output in a very compact housing, to fit into the smallest available space. NON-Automatic pump - requires a Rule float switch to operate automatically.

Please note - using the included check valve will reduce the output flow of the pump.
Available in 12 volts only. 3-year limited warranty.

• Fully submersible pump - 360 US gallons per hour - 23 liters per minute @12v
• Higher flow-optimized impeller to provide greater flow at the same amperage as the previous model
• High efficiency, low amp draw ignition protected motor includes true Electromagnetic suppression (EMC)
• 16 gauge tin coated copper electrical wiring with silicone infused water blocking feature to stop water wicking down inside the wiring
• Built-In thermal cut-out (TCO) in the motor provides additional protection for pump & vessel
• Backflow prevention - now includes a removable check valve in the discharge nozzle which reduces the amount of water draining back from the pump discharge hose into the bilge.
  Please note - using the check valve will reduce the rated output flow.
• Threaded discharge port - gives easier installation and maintenance.
  Discharge hose port is included with each pump
• Hidden air vents in the pump prevent air locking in challenging plumbing installations and helps with the check valve operation
• Compact - 99mm Height x 74mm Width x 64mm depth - not including discharge
• 2.1 amp draw @ 12v DC
• Threaded hose outlet suits 20mm (3/4") hose. 1 x straight port provide.

Convenient and practical submersible bilge pump installation kits available in two variants to suit 19mm (3/4″) or 28mm (11/8″) bilge systems.

Kit 131144 consists of 1.5 metres (5 feet) of 19mm (3/4″) convoluted spigoted bilge pump hose providing excellent bend characteristics, one 19mm (3/4″) quality nylon skin fitting and two marine grade stainless steel hose clamps to suit.
