Description
CDQ5000-W Feature: The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed. With a heavy duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent
Brand | RFI |
Mounting | Threaded Stud |
Length [mm] | 1010 |
Frequency MHz | 477 |
Tuned Bandwidth | Full. No tuning required |
Radome Diameter Mm | 22.5 - 15.6 |
VSWR | <1.5:1 |
Nominal Gain [dBi] | 5 |
Power [W] | 25 |
Frequency Range [MHz] | 470 - 490 |
Connector | FME(F), UHF(M) |
Band | 477MHz |
Tuning | Supplied pre-tuned |
Cable And Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
Whip Material | PCB radiating element housed in tapered high impact fibreglass |
Packaging | Clear hanging bag |
Antenna Type | Omni |
Antenna Application | Vehicle Antenna |
Frequency Band | UHF 380-520 MHz |
Antenna Configuration | SISO |
Specifications
SKU | CDQ5000-W |
---|---|
Barcode # | OEBC560300 |
Brand | RFI |
Shipping Weight | 1.2300kg |
Shipping Length | 1.200m |

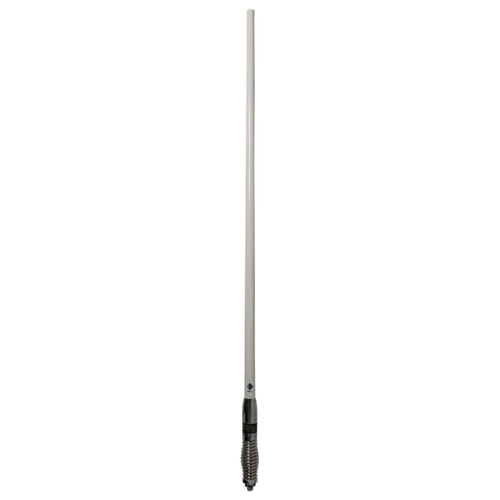

RFI UHF CB 5dBi Collinear Antenna (477 MHz); 5m FME(F) UHF(A) - White
