25%OffRRP

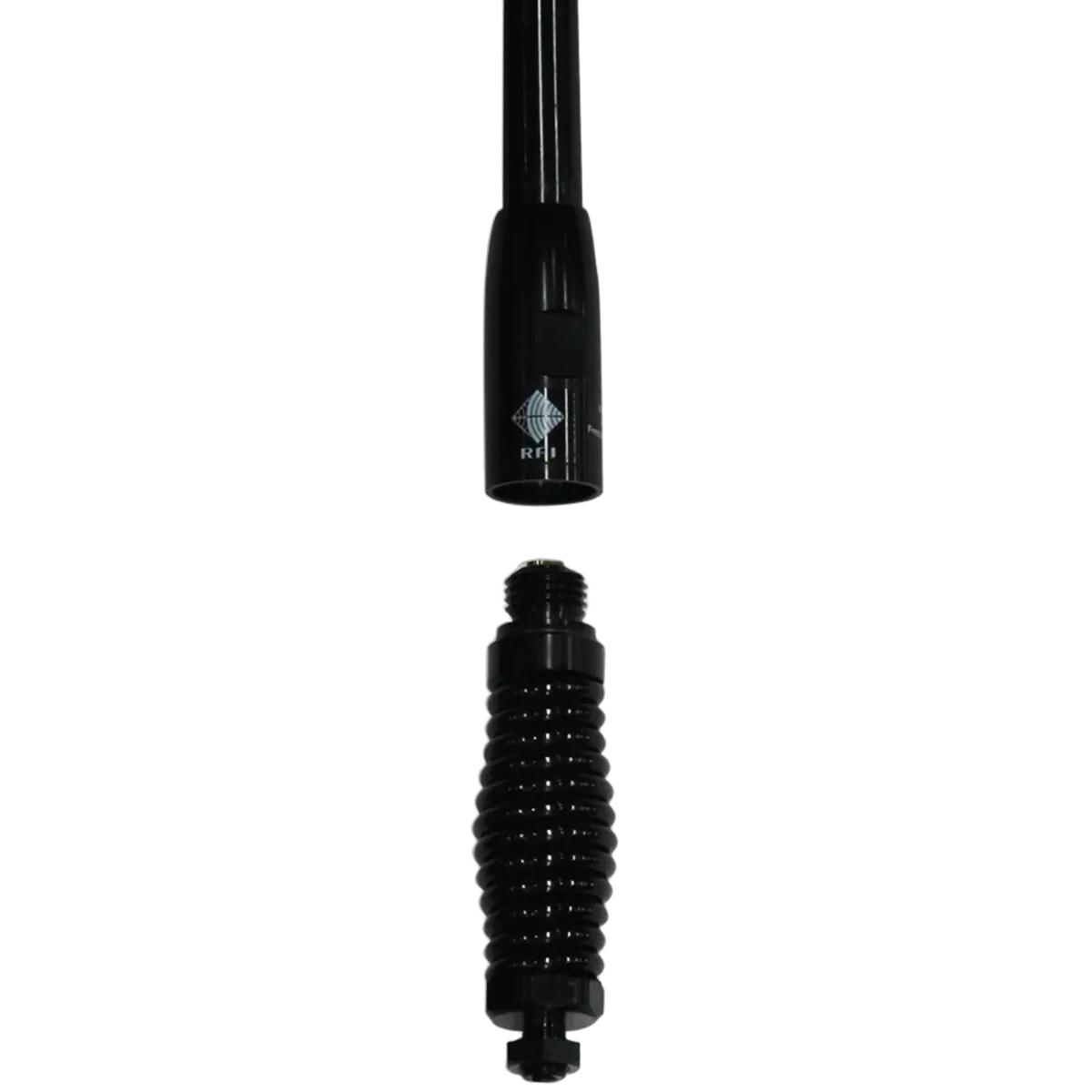

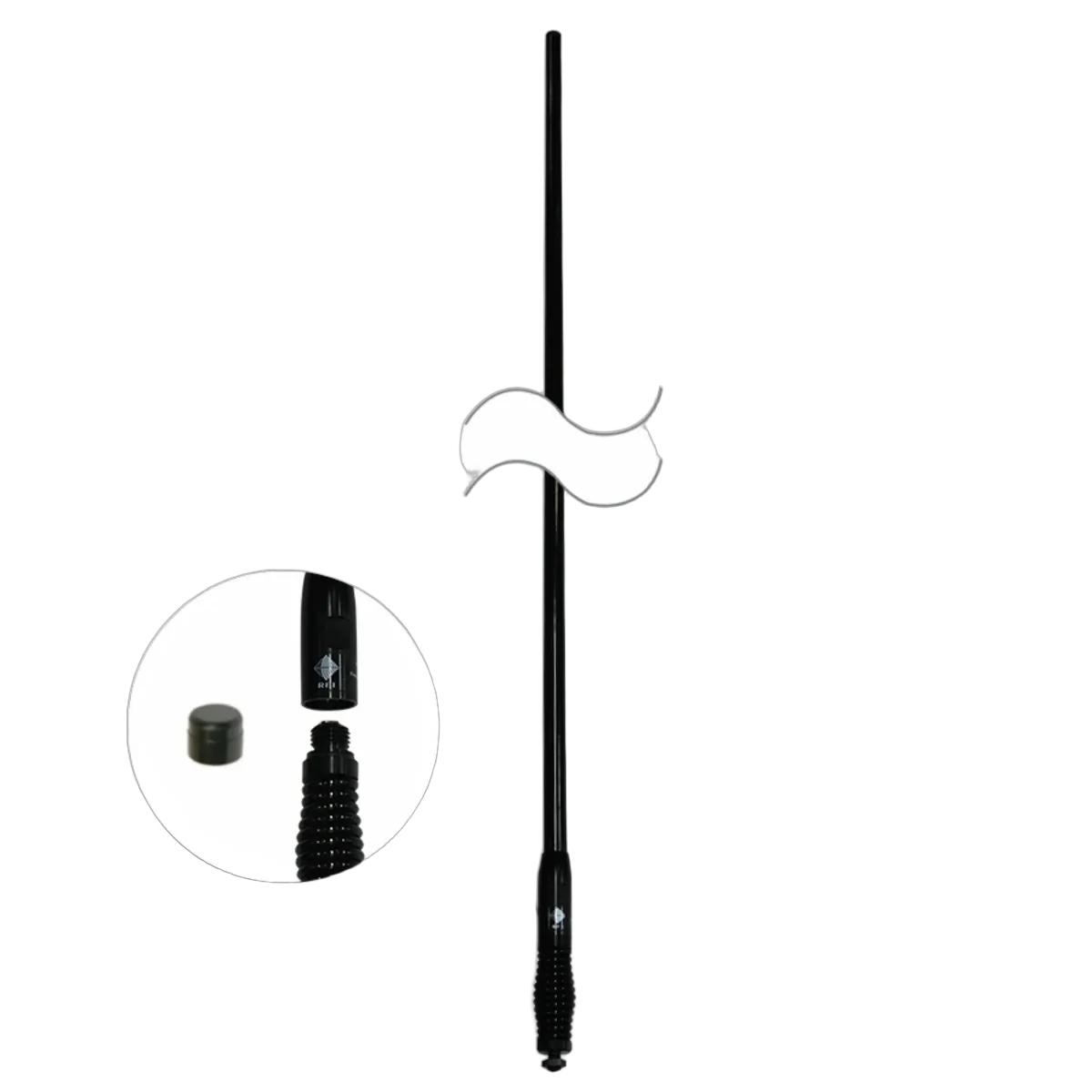

CDQ5000-B Feature: The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed. With a heavy duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi gain across the full 477 MHz UHF CB band. - Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent
BrandRFI
MountingThreaded Stud
Length [mm]1010
Frequency MHz477
Tuned BandwidthFull. No tuning required
Radome Diameter Mm22.5 - 15.6
VSWR<1.5:1
Nominal Gain [dBi]5
Power [W]25
Frequency Range [MHz]470 - 490
ConnectorFME(F), UHF(M)
Band477MHz
TuningSupplied pre-tuned
Cable And Connector5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Whip MaterialPCB radiating element housed in tapered high impact fibreglass
PackagingClear hanging bag
Antenna TypeOmni
Antenna ApplicationVehicle Antenna
Frequency BandUHF 380-520 MHz
Antenna ConfigurationSISO
SKU CDQ5000-B
Barcode # OEBC560298
Brand RFI
Shipping Weight 1.2000kg
Shipping Length 1.100m
SKU: CDQ5000-B

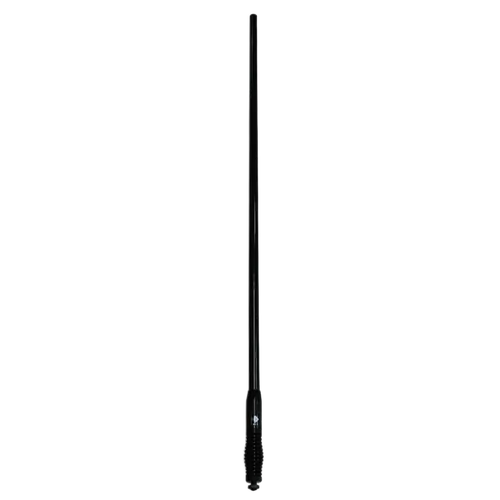

RFI UHF CB 5dBi Collinear Antenna (477 MHz); 5m FME(F) UHF(A) - Black
