Description
Features:
The antennas we supplied with our medium duty spring assembly which included 5 metres of low loss 9006 cable terminated with an FME female connector and includes a UHF to FME adaptor.
Features:
• Patented PCB based Meander™ collinear design offering the ultimate performance & robustness.
• 5 dBi gain across the full 477 MHz UHF CB band.
• Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security • Totally ground plane independent
• Patented PCB based Meander™ collinear design offering the ultimate performance & robustness.
• 5 dBi gain across the full 477 MHz UHF CB band.
• Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security • Totally ground plane independent
Brand | RFI |
Mounting | 13mm threaded stud |
Frequency MHz | 477 |
Tuned Bandwidth | Full. No tuning required |
Radome Diameter Mm | 16 |
VSWR | <1.5:1 |
Nominal Gain [dBi] | 5 |
Power [W] | 25 |
Frequency Range [MHz] | 470 - 490 |
Connector | FME(F), UHF(M) |
Band | 477MHz |
Tuning | Supplied pre-tuned |
Cable And Connector | 5.0m 9006 supplied terminated with an FME female connector and supplied with an FME to UHF adapter |
Whip Length mm | 930 |
Whip Material | PCB radiating element housed in tapered high impact fibreglass |
Packaging | Retail style plastic bag with header card |
Antenna Type | Omni |
Antenna Application | Vehicle Antenna |
Frequency Band | UHF 380-520 MHz |
Antenna Configuration | SISO |
Specifications
SKU | CDR5000-B |
---|---|
Barcode # | OEBC560295 |
Brand | RFI |
Shipping Weight | 1.0000kg |
Shipping Length | 0.950m |

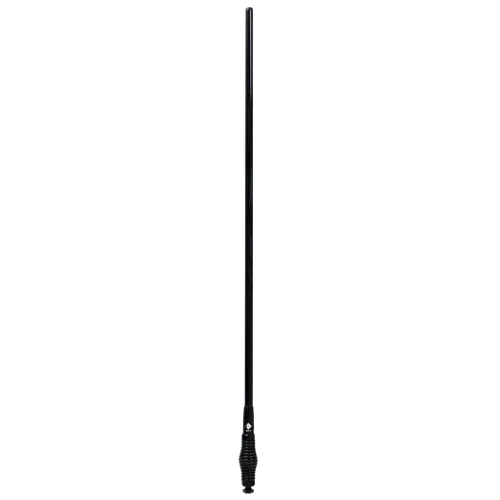

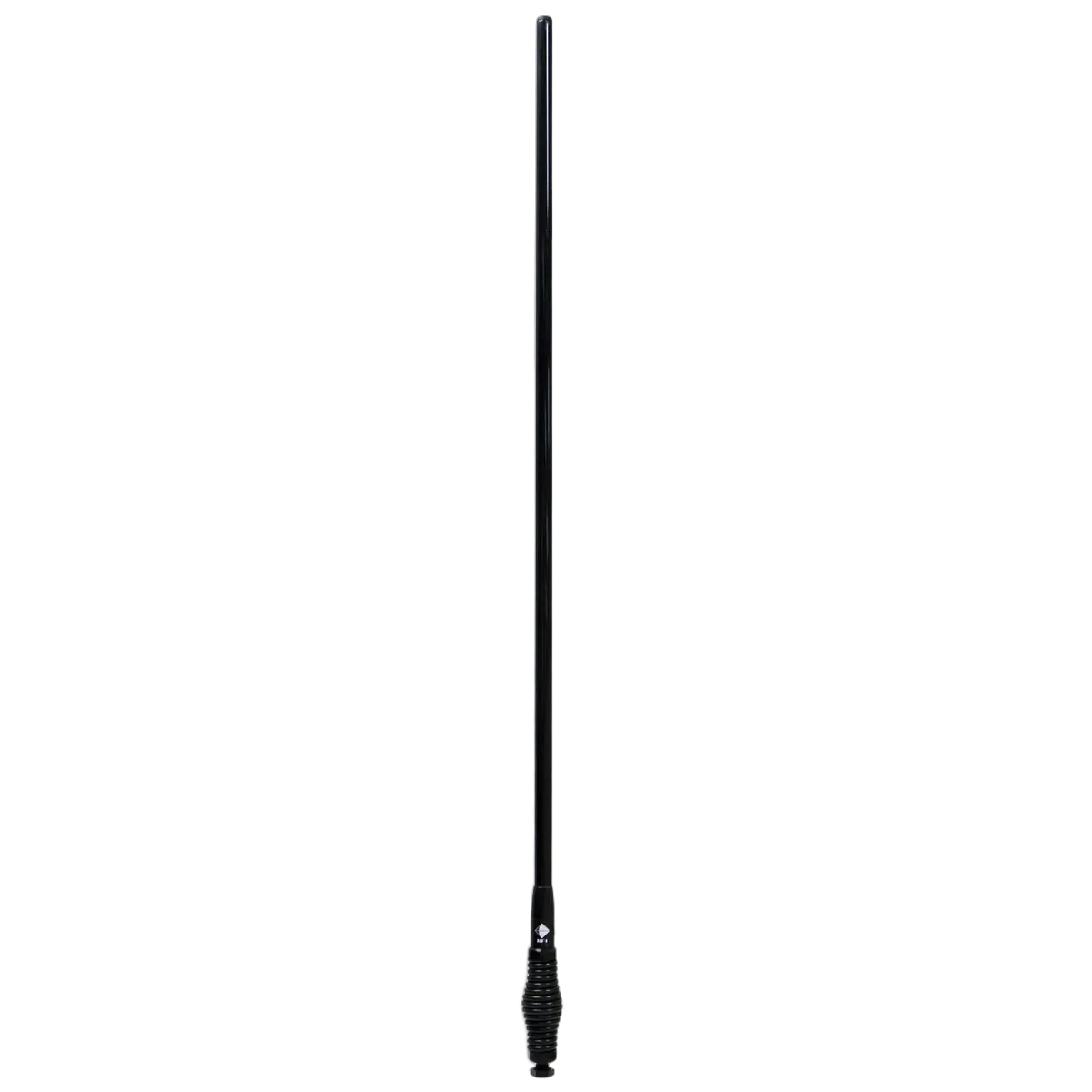

RFI UHF CB 5dBi Collinear Antenna (477 MHz); 5m FME(F) & UHF(M) Adaptor - Black
