Description
CDQ3000-B Feature:
The new compact CDQ3000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring, the CDQ3000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 3dBi gain across the full 477 MHz UHF CB band.

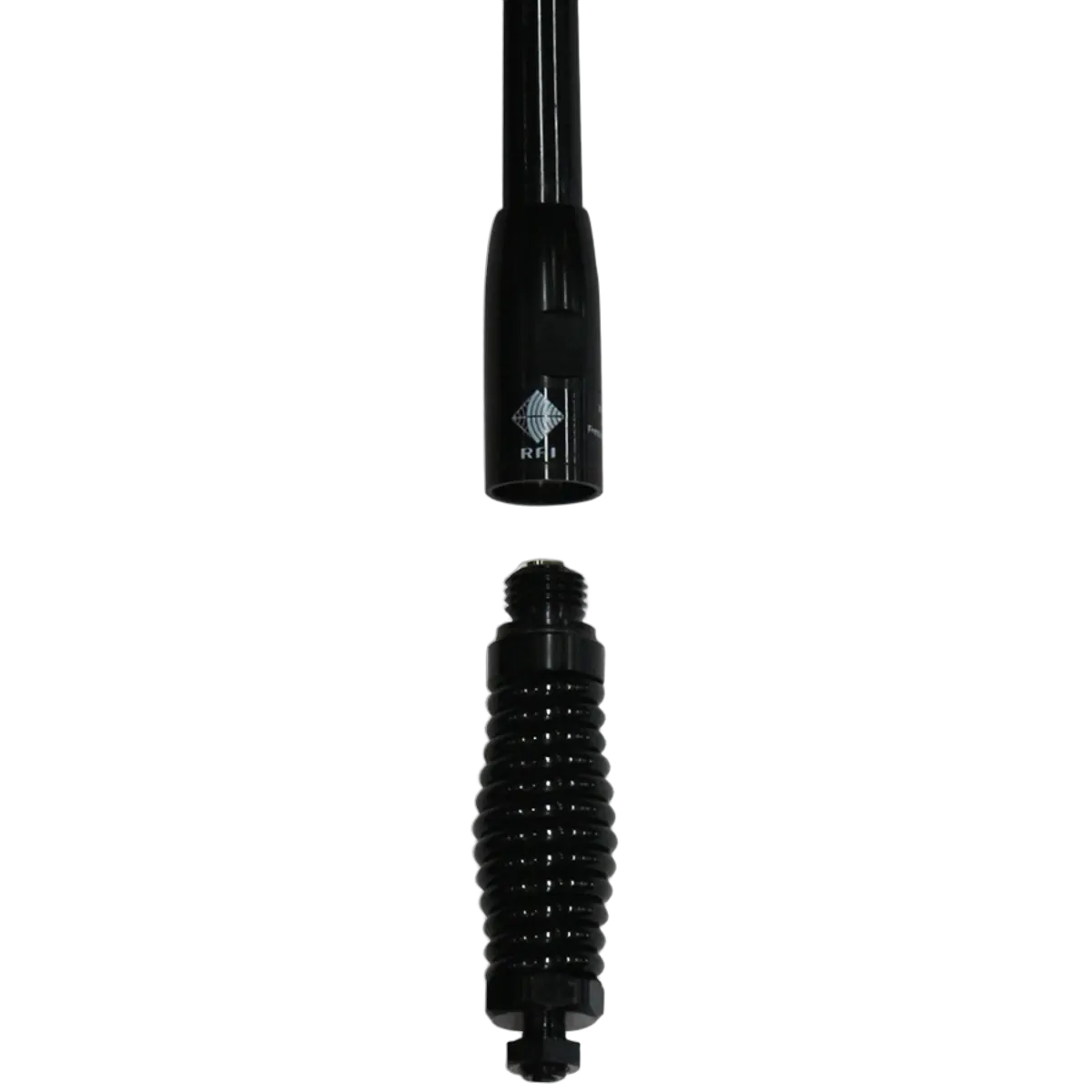

- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 3dBi gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent
Brand | RFI |
Mounting | Spring Assembly with threaded stud & nut |
Length [mm] | 515 |
Frequency MHz | 477 |
Tuned Bandwidth | Full. No tuning required |
Radome Diameter Mm | 22.5 – 18.5 |
VSWR | <1.5:1 |
Nominal Gain [dBi] | 3 |
Power [W] | 25 |
Frequency Range [MHz] | 470 - 490 |
Connector | FME(F), UHF(M) |
Band | 477MHz |
Tuning | Supplied pre-tuned |
Cable And Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
Whip Material | PCB radiating element housed in tapered high impact fibreglass |
Packaging | Clear hanging bag |
Antenna Type | Omni |
Antenna Application | Vehicle Antenna |
Frequency Band | UHF 380-520 MHz |
Antenna Configuration | SISO |
Specifications
SKU | CDQ3000-B |
---|---|
Barcode # | OEBC560297 |
Brand | RFI |
Shipping Weight | 1.0000kg |
Shipping Length | 0.580m |

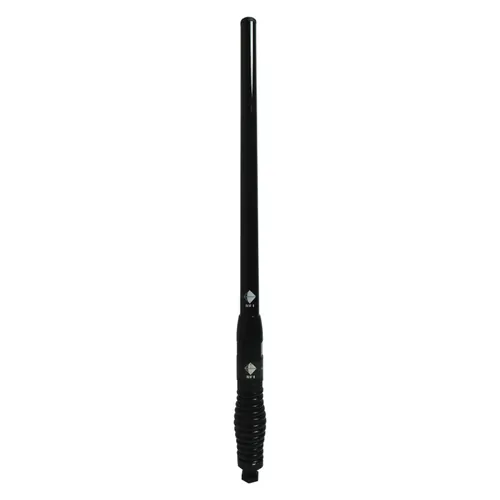

RFI UHF CB 3dBi Collinear (477 MHz) Antenna; 5m FME(F) & UHF(M) Adaptor - Black
