Description
It is our flagship product and is designed for harsh Australian conditions. includes an integrated spring with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and the N female connector on the spring assembly.
Key Features:
- Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low-height environments such as multi-story car parks, car washes, or for security.
Key Features:
- Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low-height environments such as multi-story car parks, car washes, or for security.
Height [mm] | 970 |
Brand | RFI |
IP Rating | IP67 |
Operating Temperature Range [°C] | -45 to +85 |
Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
Tuned Bandwidth | Full |
Mounting Area | 13- 16mm hole |
VSWR | <2.5:1 |
Polarisation | Vertical |
Nominal Gain [dBi] | 6.5 / 4.5 / 5.5 / 6.5 |
Power [W] | 10 |
Connector | SMA(M) |
Cable And Connector | 5m of 9006 low loss cable terminated with SMA male connector |
Whip Material | Fibreglass |
Packaging | Retail Hang Sell Pack |
Antenna Type | Omni |
Antenna Application | Vehicle Antenna |
Frequency Band | Multi-Band 700 to 2700 |
Antenna Configuration | SISO |
Specifications
SKU | CDQ8195-W |
---|---|
Barcode # | OEBC560288 |
Brand | RFI |
Shipping Weight | 1.0000kg |
Shipping Length | 0.100m |

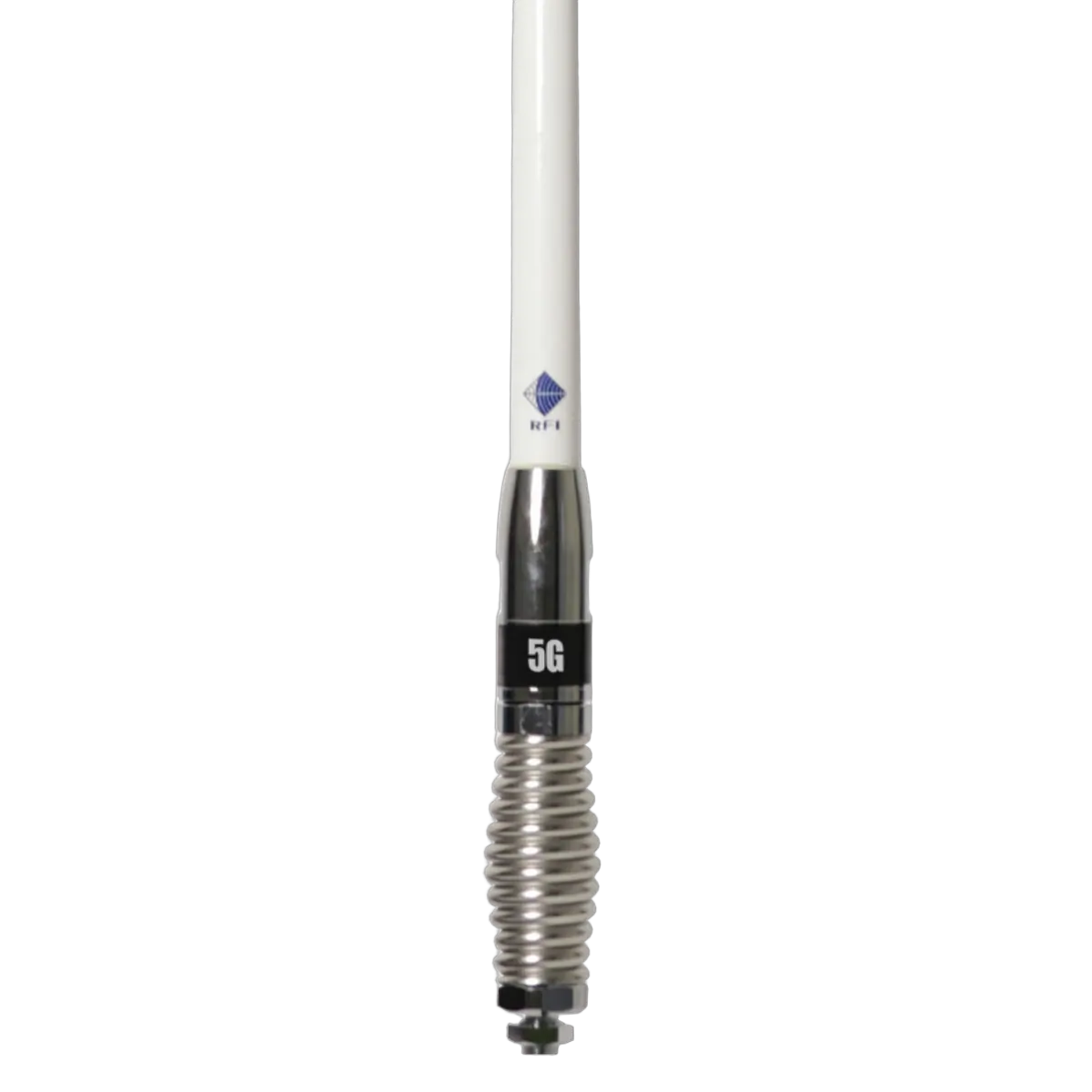

RFI 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - White
