Description
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.

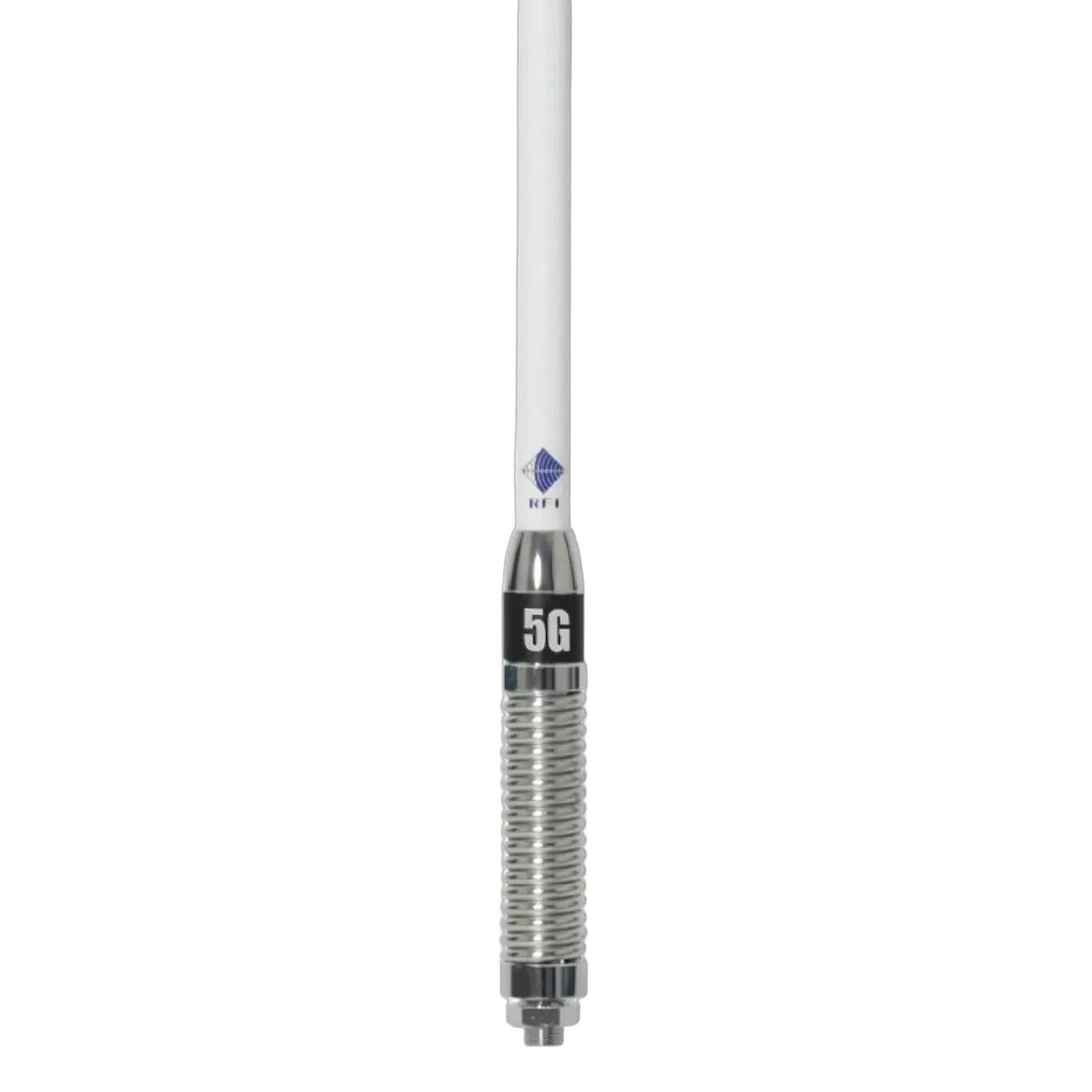

The CD8100 Series Includes an integrated spring with threaded stud/nut for easy installation on vehicles.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
Weight [kg] | 0.82 |
Height [mm] | 925 |
Brand | RFI |
IP Rating | IP65 |
Operating Temperature Range [°C] | -40 to +85 |
Length [mm] | 920 |
Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
Horizontal Beamwidth | Omni-directional |
Vertical Beamwidth | 25 / 30 / 20 / 15 |
Mounting Area | 13-16mm Diameter Hole |
VSWR | <2.5:1 |
Polarisation | Vertical |
Nominal Gain [dBi] | 6.5 / 4.5 / 5.5 / 6.5 |
Power [W] | 10 |
Frequency Range [MHz] | 1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960 |
Connector | SMA(M) |
Cable And Connector | 5m Low loss RG58 (9006) terminated with SMA male connector |
Whip Material | Fibreglass |
Packaging | Retail Hang Sell Bag |
Colour | White |
Technology Type | LTE |
Antenna Type | Omni |
Antenna Application | Vehicle Antenna |
Frequency Band | Multi-Band 700 to 3800 |
Application | Vehicle |
Antenna Configuration | SISO |
Specifications
SKU | CD8195-W |
---|---|
Barcode # | OEBC560282 |
Brand | RFI |
Shipping Weight | 0.8500kg |
Shipping Length | 0.950m |

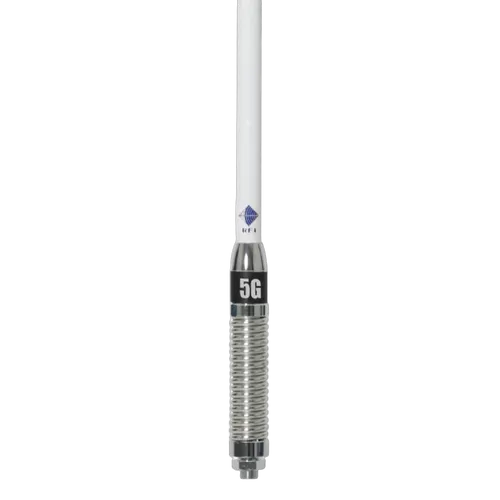

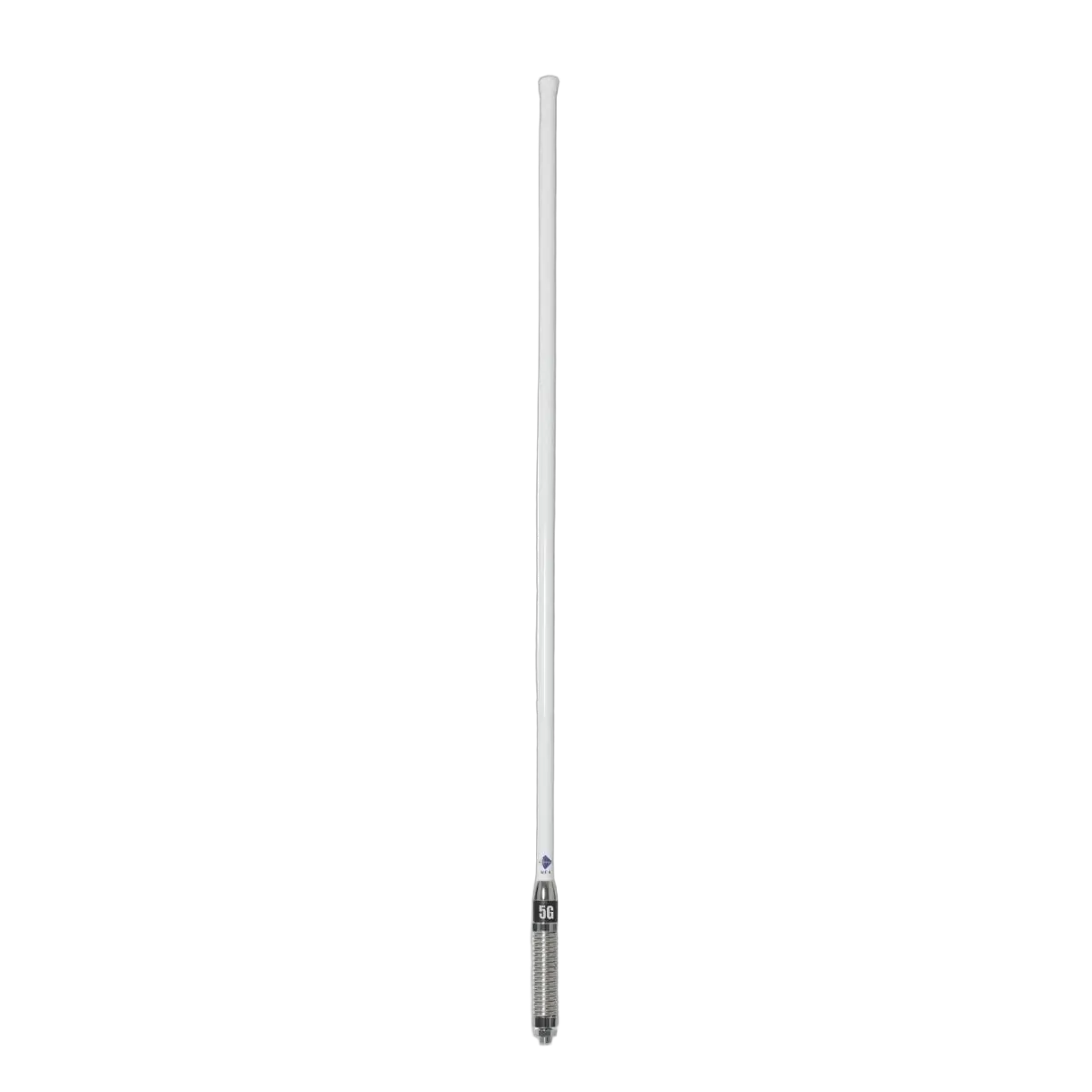

RFI 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - White
