Description
The CDR8100 Series sits neatly in between our lighter-duty CD8100 Series & our heavy-duty CDQ8100 Series. The CDR8100 Series whips can be removed via the integrated N male connector in the whip and the N female connector on the spring assembly.
Key Features:
- Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low-height environments such as multi-story car parks, car washes, or for security.
Key Features:
- Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low-height environments such as multi-story car parks, car washes, or for security.
Brand | RFI |
Length [mm] | 695 |
Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
Horizontal Beamwidth | Omni-directional |
Tuned Bandwidth | Full |
Mounting Area | 13-16mm diameter hole |
VSWR | <2.5:1 |
Polarisation | Vertical |
Nominal Gain [dBi] | 5.5 / 4.5 / 5.5 / 6.5 |
Power [W] | 10 |
Frequency Range [MHz] | 1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960 |
Connector | SMA(M) |
Cable And Connector | 5m RG58 (9006) low loss cable terminated with SMA male connector |
Whip Material | Fibreglass |
Packaging | Retail Hang Sell Bag |
Antenna Type | Omni |
Antenna Application | Vehicle Antenna |
Frequency Band | Multi-Band 700 to 2700 |
Antenna Configuration | SISO |
Specifications
SKU | CDR8194-B |
---|---|
Barcode # | OEBC560285 |
Brand | RFI |
Shipping Weight | 0.8000kg |
Shipping Length | 0.700m |

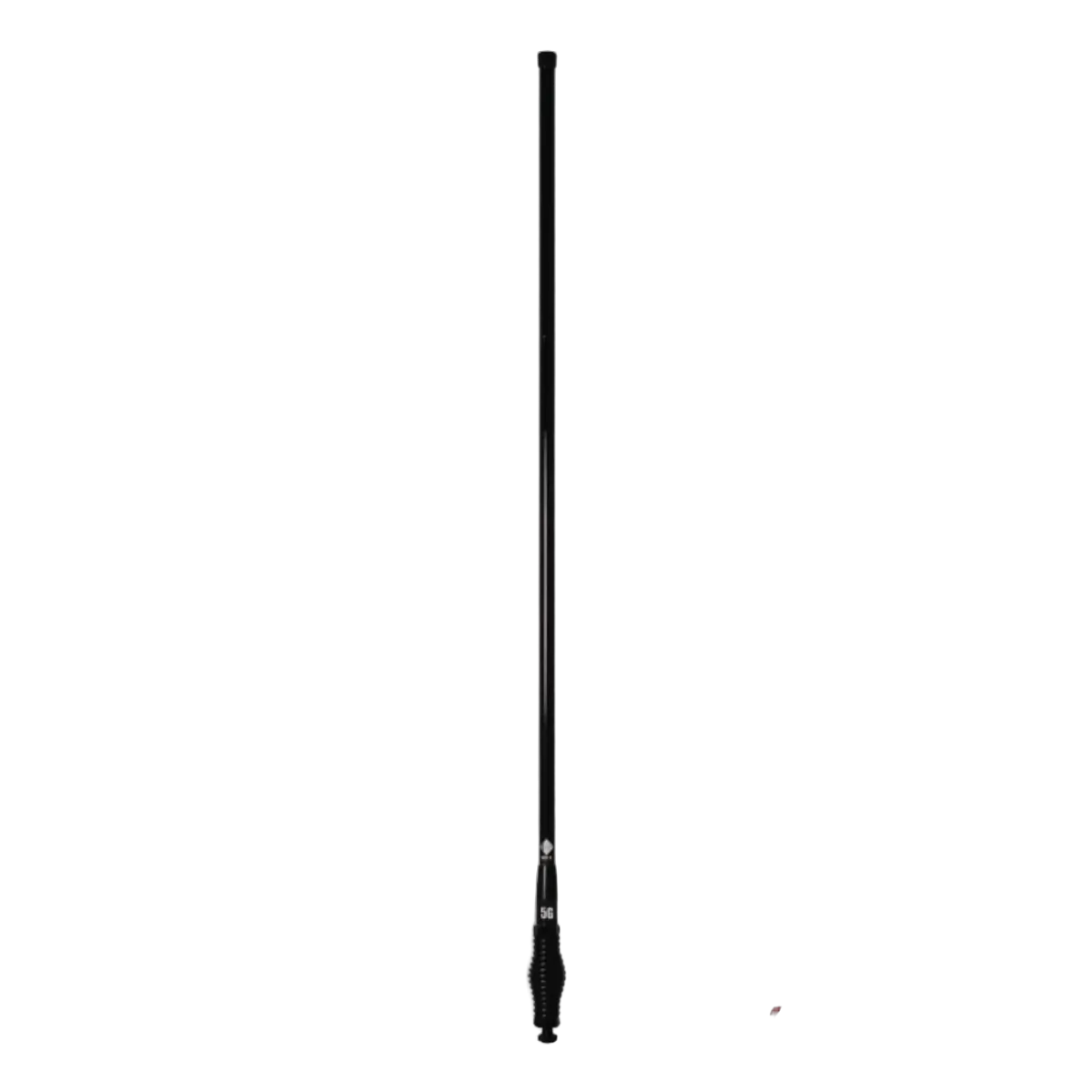

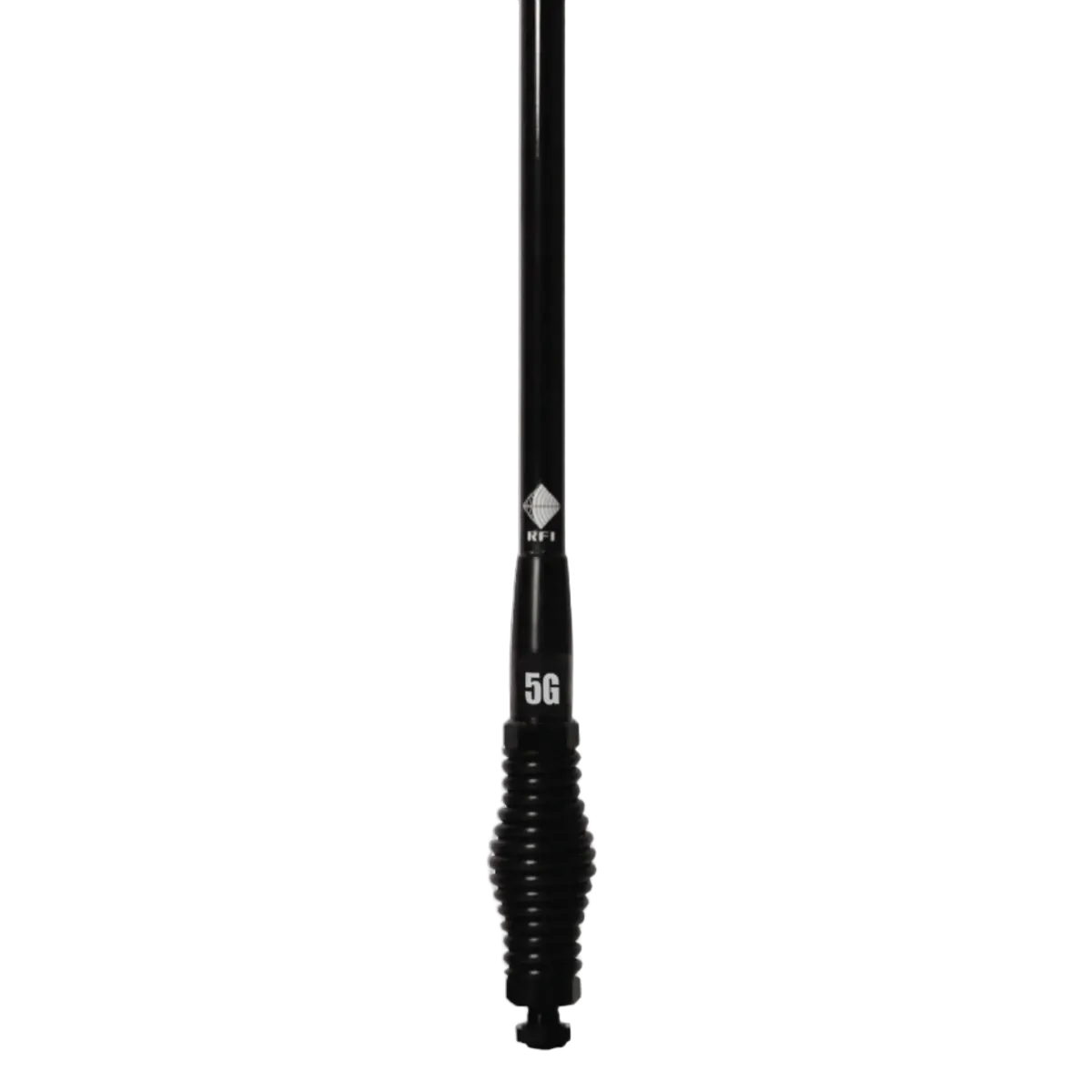

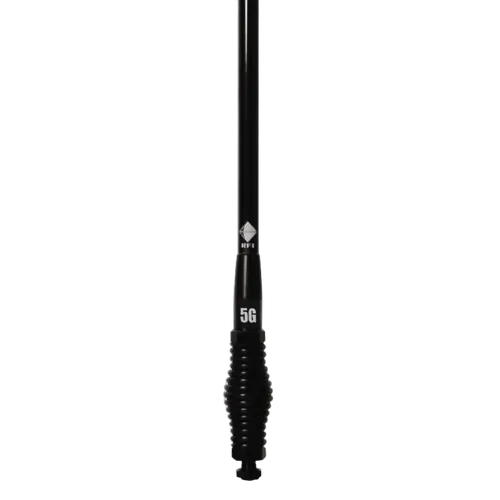

RFI 5G LTE 5.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black
