The US vehicle specific REDARC Tow-Pro TPH-006 wiring harness offers the ability to connect the Tow-Pro Elite electric brake directly into Ford, Mercury, Land Rover and Lincoln vehicles.
TOW-PRO WIRING HARNESSES TO SUIT IMPORTED US VEHICLES
The REDARC Tow-Pro TPH-006 US vehicle specific wiring harness offers the ability to connect the Tow-Pro Elite electric brake controller into Ford, Lincoln or Land Rover vehicles.The Tow-Pro Wiring Harness contains fitting instructions and the loom with compatible connector.
The Tow-Pro Harness allows you to connect to the Tow-Pro Elite electric brake controller to the vehicle’s factory fitted connector with an easy plug and play design.
Simply plug one end of the harness to the electric brake controller connector and then plug the other end to the factory fitted connector behind the vehicle dash.
| Make | Model | Type |
Start Year |
End Year |
| Ford | F-450 | Super Duty Cab & Chassis | 1999 | 2004 |
| Mercury | Mountaineer | w/Factory Tow Package | 2002 | 2010 |
| Lincoln | Navigator | - | 1998 | 2012 |
| Lincoln | Aviator | w/Factory Tow Package | 2003 | 2005 |
| Lincoln | Mark LT | - | 2006 | 2008 |
| Lincoln | MKT | w/Factory Tow Package | 2010 | 2011 |
| Land Rover | LR3 | - | 2005 | 2009 |
| Land Rover | Range Rover | - | 2005 | 2018 |
| Land Rover | Range Rover Sport | - | 2006 | 2018 |
| Land Rover | LR4 | - | 2010 | 2015 |
| Land Rover | Range Rover Evoque | - | 2012 | 2018 |
| Ford | Explorer | - | 2002 | 2019 |
| Ford | Explorer | w/Factory Tow Package | 2002 | 2019 |
| Ford | F-53 | Motorhome Chassis | 1999 | 2019 |
| Ford | Police Interceptor Utility | - | 2013 | 2018 |
| Ford | Expedition | - | 1997 | 2012 |
| Ford | Flex | w/Factory Tow Package | 2009 | 2011 |
| Ford | Explorer Sport Trac | w/Factory Tow Package | 2007 | 2010 |
| Ford | E-150 | - | 1992 | 2008 |
| Ford | E-250 | - | 1992 | 2008 |
| Ford | E-350 | - | 1992 | 2008 |
| Ford | E-350 | RV Cutaway, w/Factory Tow Prep Plug | 1992 | 2008 |
| Ford | F-150 | - | 1994 | 2008 |
| Ford | Van | - | 1994 | 2008 |
| Ford | E-450 | Super Duty RV Cutaway, w/Factory Tow Prep plug | 2003 | 2008 |
| Ford | Excursion | - | 2000 | 2005 |
| Ford | F-250 | - | 1994 | 2004 |
| Ford | F-350 | - | 1994 | 2004 |
| Ford | F-250 | Super Duty | 1999 | 2004 |
| Ford | F-350 | Super Duty | 1999 | 2004 |
| Ford | F-350 | Cab and Chassis | 1999 | 2004 |
| Ford | F-450 | Cab and Chassis | 1999 | 2004 |
| Ford | F-550 | Super Duty Cab & Chassis | 1999 | 2004 |
| Ford | F-550 | Cab and Chassis | 1999 | 2004 |
| Ford | F-150 | Heritage | 1999 | 2004 |
| Ford | Windstar | w/Factory Tow Package | 2004 | 2003 |
| Ford | E-450 | Super Duty Stripped RV Cutaway, w/Factory Tow Prep Plug | 1994 | 2002 |
| Ford | F-150 | Light Duty | 1997 | 1999 |
| Ford | F-250 | Light Duty | 1997 | 1999 |
| Ford | F-250 | Styleside | 1997 | 1999 |
| Ford | F-250 | Heavy Duty | 1997 | 1997 |
| Ford | F-350 | Heavy Duty | 1997 | 1997 |
| Ford | Bronco | - | 1994 | 1996 |
Visit the Tow-Pro Elite accessories page to discover our full range of wiring kits, switch inserts and mounting accessories.
Please note that most older Australian model vehicles do not have this plug/connector from factory. Some late/current model vehicles may have a dedicated electric brake harness connector to suit but is yet to be validated by REDARC. For Australian model suitability, please consult with your local OEM Dealership.
SPECIFICATIONS
| GTIN_BARCODE | 9338628004881 |
|---|---|
| BRAND | REDARC |
| CABLE LENGTH | 812.8 mm |
| WEIGHT | 95 g |
| WARRANTY | 2 Years |
| SKU | TPH-006 |
|---|---|
| Barcode # | OEBC662025 |
| Brand | Redarc |
| Shipping Weight | 0.0950kg |

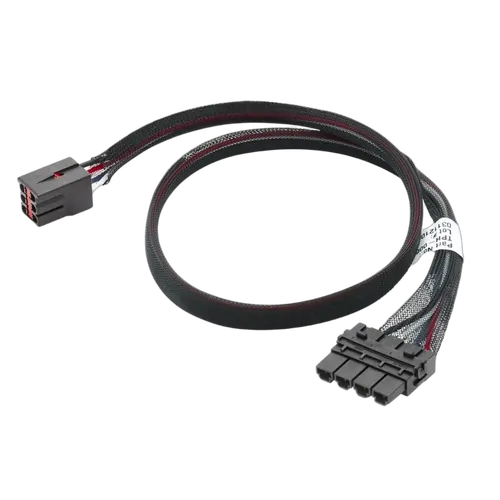

Redarc Ford/Lincoln Suitable Tow-Pro Brake Controller Harness (Tph-006)
