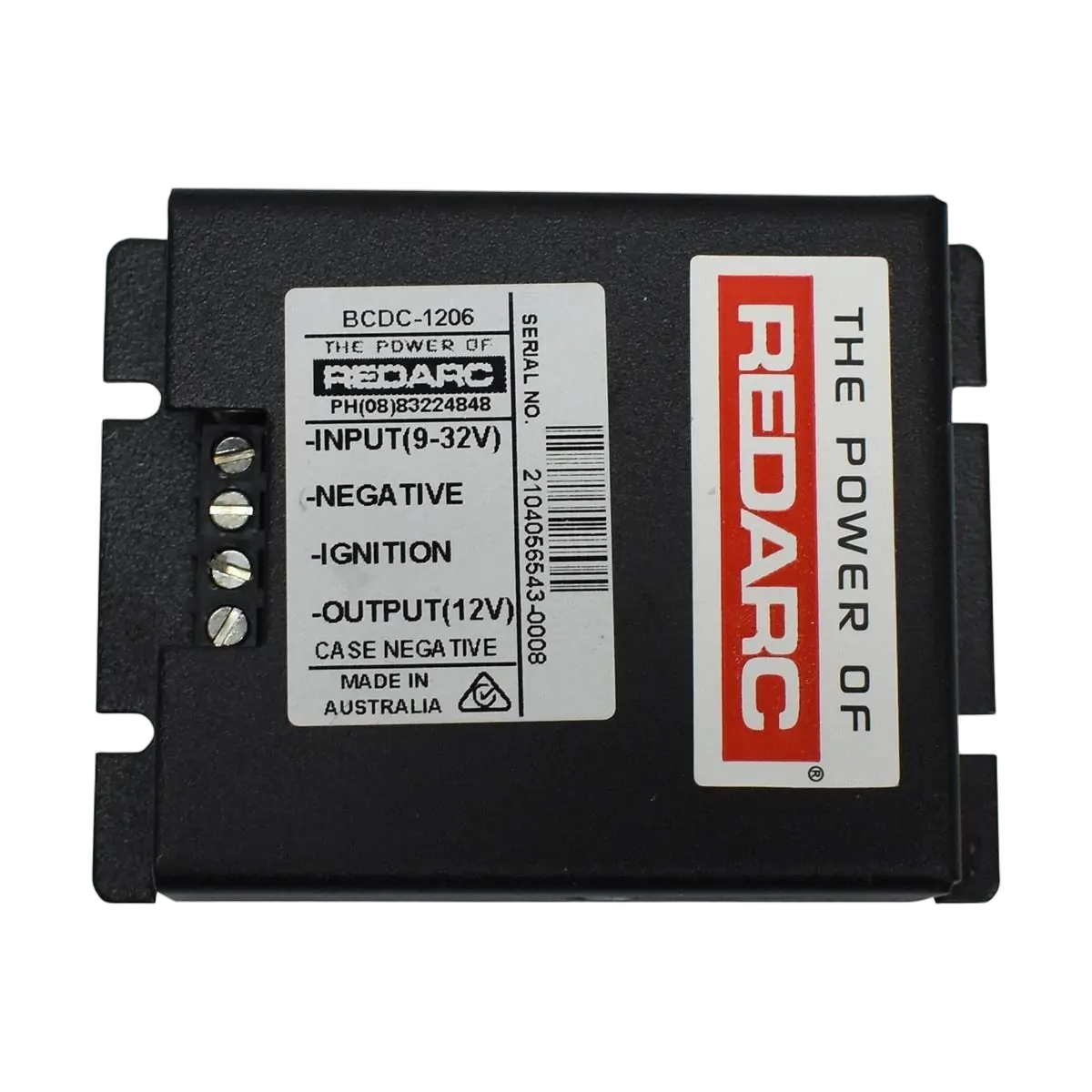

Operating at an input range of between 9V and 32V, the BCDC1206 REDARC Battery Charger is a DC-to-DC charger intended for charging an auxiliary 12V battery in situations where its distance from your main battery can cause significant drops in voltage. This is particularly useful for situations where a simple solution is required for charging trailer-mounted batteries.

This REDARC DC to DC charger features a raft of safety features and protections including over current and short circuit protections, over temperature protection, and safety shutdown when the input is under or over the correct voltage. Its compact size makes it an efficient choice for streamlining your system while the clear and easy-to-read LED indicator displays its output mode.

The REDARC DC-to-DC charger is delivered with a 2-year manufacturer's warranty covering faults and material defects.

Product Specifications:

• Input (Operating) Voltage: 9-32VDC
• Output System Voltage: 12VDC
• Maximum Charging Voltage: 14.5V
• Output Current Rating (Cont.): 6A
• Standby Current Draw: <150uA
• Protection: Over-current, Short circuit
• Length: 80mm
• Width: 60mm
• Height: 20mm
• Weight: 0.2kg
