Secure your mount using the Quad Lock 360™ Concealed Small Bases.

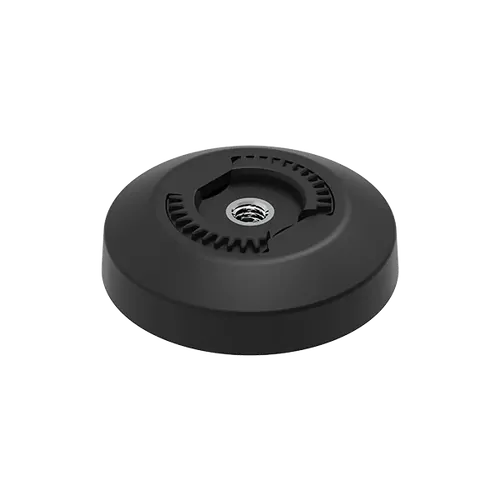

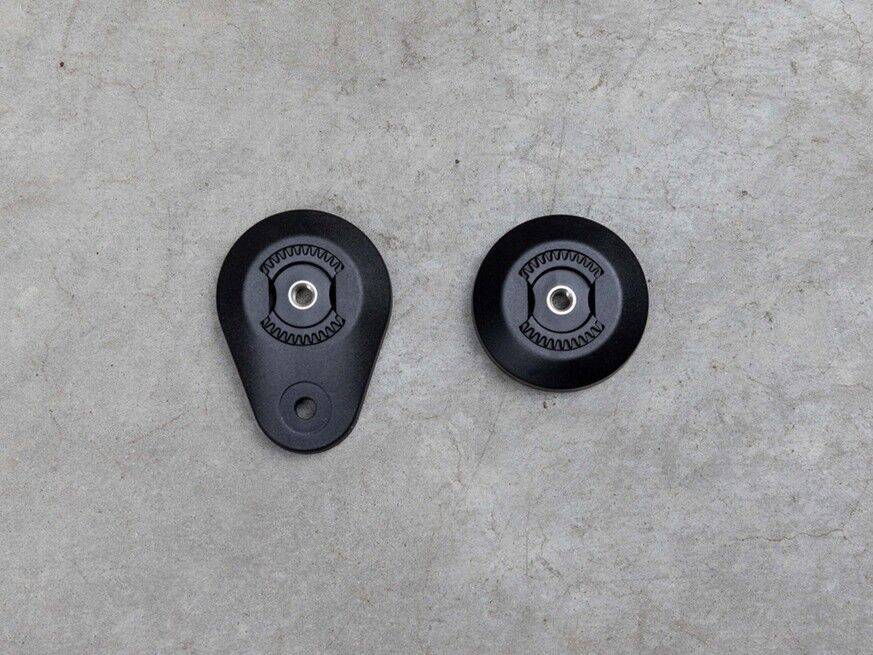

CONCEALED

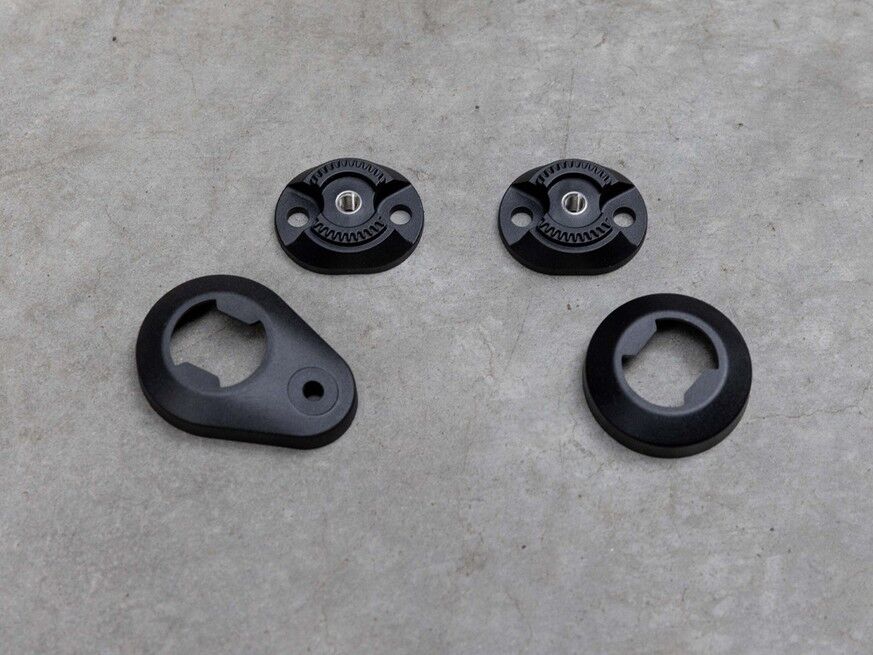

Two hole mounting pattern with small footprint and a cover to conceal the mounting screws and give a clean look. Once a Quad Lock 360™ Arm or Head is mounted on top the glamour cover is secured into place.

CONCEALED THROUGH CABLE
Two hole mounting pattern with small footprint, a cover to conceal the mounting screws for a clean look, and passthrough for the Quad Lock® 12V-24V Waterproof Wireless Charging Head cable.

Once a Quad Lock 360™ Arm or Head is mounted on top the glamour cover is secured into place.

WHAT'S INCLUDED

CONCEALED

• 1 x Quad Lock® Concealed Small Base with cover
• 1 x Quad Lock® 10mm Spacer
• 1 x M5 x 30 Countersunk hex socket screw (for connecting Spacer to Lever Head or Quad Lock 360™ Arms)
• 1 x M5 x 45 Countersunk hex socket screw (for connecting Spacer to Weatherproof Wireless Charger)

CONCEALED THROUGH CABLE

• 1 x Quad Lock® Concealed Through Cable Small Base with cover
• 1 x Quad Lock® 10mm Spacer
• 1 x M5 x 30 Countersunk hex socket screw (for connecting Spacer to Lever Head or Quad Lock 360™ Arms)
• 1 x M5 x 45 Countersunk hex socket screw (for connecting Spacer to Weatherproof Wireless Charger)

PLEASE NOTE:
Mounting screws not included

TECH SPECS

CONCEALED

• Tough glass filled nylon
• Stainless steel hardware
• Glamour cover to hide the screws
• Suits flat surfaces only
• 25mm (15/16") hole pitch
• M5 or 10G (gauge 10) pan head screws

CONCEALED THROUGH CABLE

• Tough glass filled nylon
• Stainless steel hardware
• Glamour cover to hide the screws
• Suits flat surfaces only
• 25mm (15/16") hole pitch
• M5 or 10G (gauge 10) pan head screws
• Grommet compatible with Quad Lock® 12V - 24V Waterproof Wireless Charging Head cable
• Grommet not compatible with the following cables: USB-A to USB-C cables, USB-C to USB-C cables, SAE connector cables, Quad Lock® Motorcycle USB Charger cable, Quad Lock® 12V to USB Smart Adaptor cable, Quad Lock® USB Weatherproof Wireless Charging Head
