Mean Mother has built the EDGE series to appeal to the 4WD enthusiast who is passionate about quality but wants value for money. The EDGE series ticks all those boxes with standard features not found on comparable winches.
Each winch in the EDGE series features a three stage planetary gearbox with sintered steel bushings which have been pressed and stamped (no pop rivets) into the gear carrier. A sliding ring gear clutch provides maximum strength and efficiency in forward and reverse winching operations with ease of free spool functionality.
Each gear box is assembled and lubricated using synthetic grease and conforms to our strict assembly guidelines. Providing strength and enduring the pulling forces exerted is a hardened seamless steel drum assembly. Delivering maximum safety during a recovery is an automatic load holding in-drum brake system.
Please Note: When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).

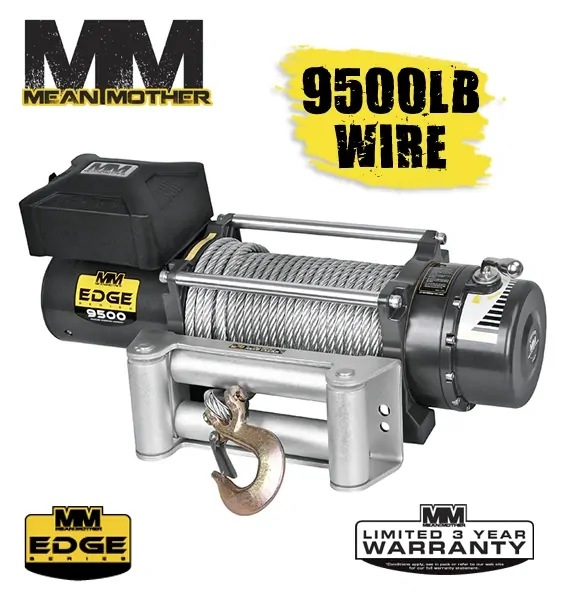

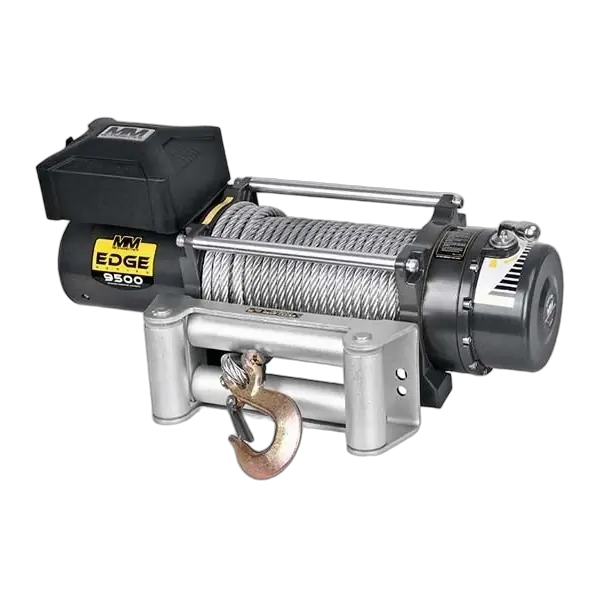

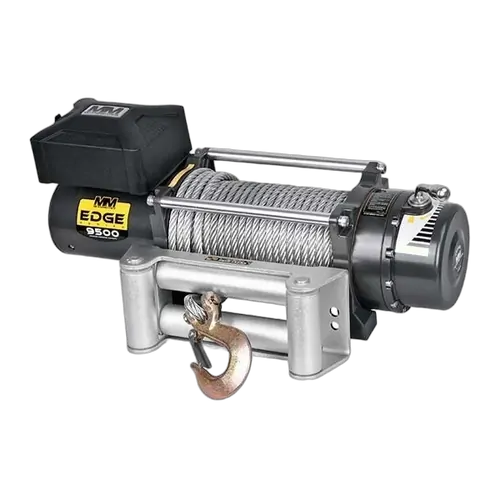

EW9500 – Fitted with 5.56mm x 12m galvanised aircraft cable which has high abrasive capabilities that will give you confidence from daily wear and tear.

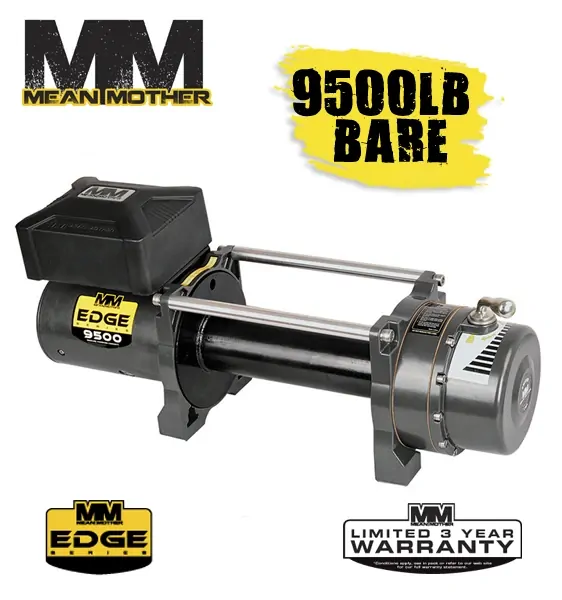

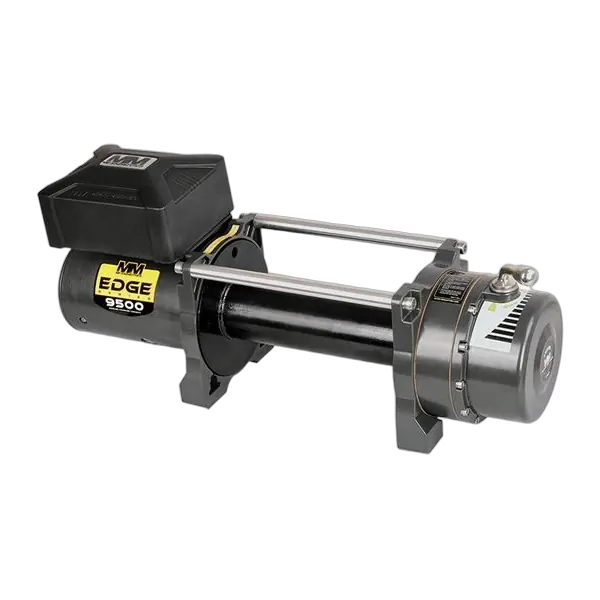

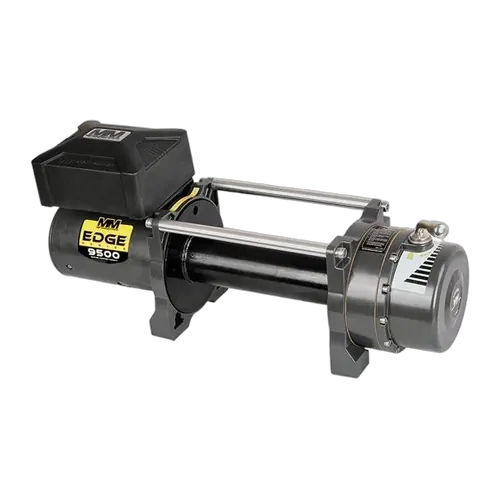

EW9500B – Comes bare with the option to allow you to fit your own wire cable or synthetic rope.

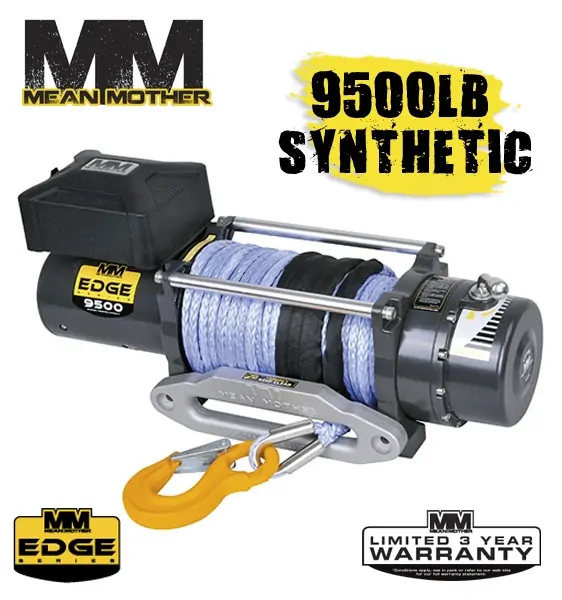

EW9500S – Fitted with Synthetic Rope 9.53mm x 30.5m. Dyneema is a safer and lighter option than wire cable, and is regarded as the ultimate in performance.
What's In the Box?
- Winch
- Control Box
- Hand Control
- Tinned Copper Power Cable kit with Fibreglass Sheath Protection
- Roller Fairlead
- 3/8" Clevis Hook
- Hand Saver Hook Strap
- Detailed Instruction Manual
- Warranty registration Card
- Winch and Fairlead Mounting Hardware (Bolts and Nuts)
- Side mounting Kit for control box
- Tie bar mounting kit for control box
- Spare Gearbox gasket
Control | Hand Control, 5m lead |
voltage | 12 Volt |
Battery Power Cables | 2 x 25mm², Tinned Copper with Sheath Protection |
Recommended Battery | Minimum 650CCA |

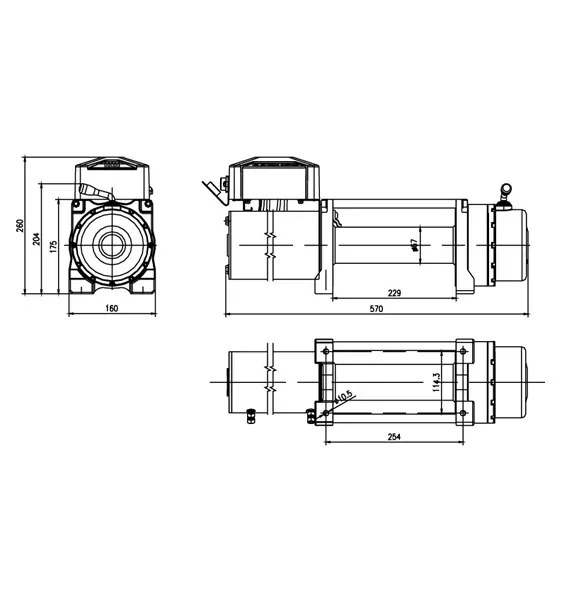

Mounting Bolt Pattern | 254mm x 114.3mm (10" x 4.5") |
Motor Power Cables | 3 x 25mm², Tinned Copper with Sheath Protection |
Drum Size | 67mm x 228mm(2.64" x 9") |
Finish | Powder Coating |
Motor Type | 4.8 Hp, 3.6 Kw |
Braking | Automatic Load Holding in Drum |
Clevis hook | 3/8" |
Specifications | 9500lb (4309kg) - Boss Series |
Overall Dimensions | 570mm x 168mm x 175mm (22.45" x 6.62" x 6.89") |
Net weight | 43kg |
Gear Ratio | 212:01:00 |
Gear Tran | 3 Stage Planetary |
Clutch | Sliding Ring Gear |
SKU | EW9500-S-B |
---|---|
Brand | Mean Mother |
Shipping Weight | 32.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.400m |
Shipping Length | 0.500m |
