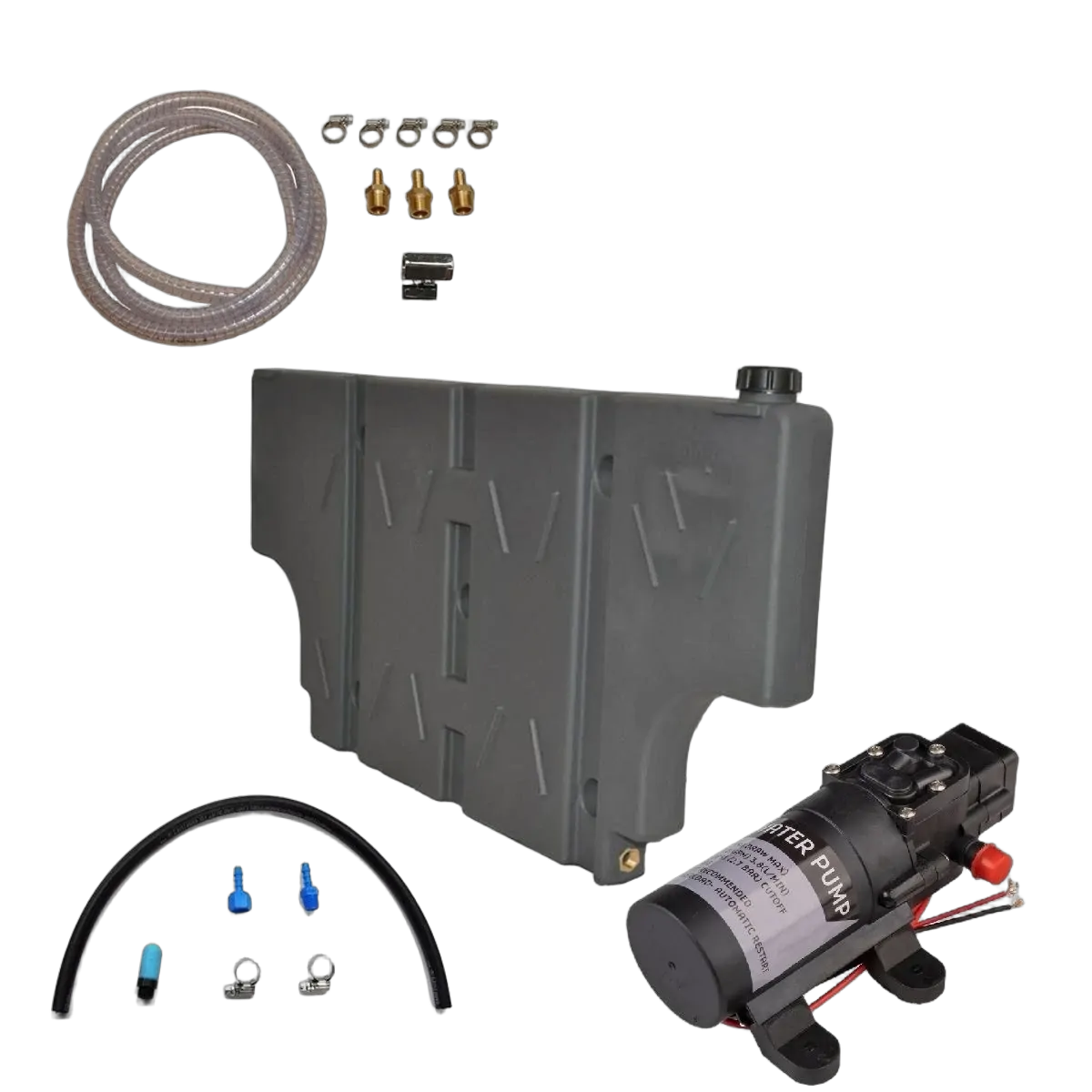

Poly Water Tank 42 Lt Vertical with wheel arch cut-outs. 1/2in BSP brass outlet

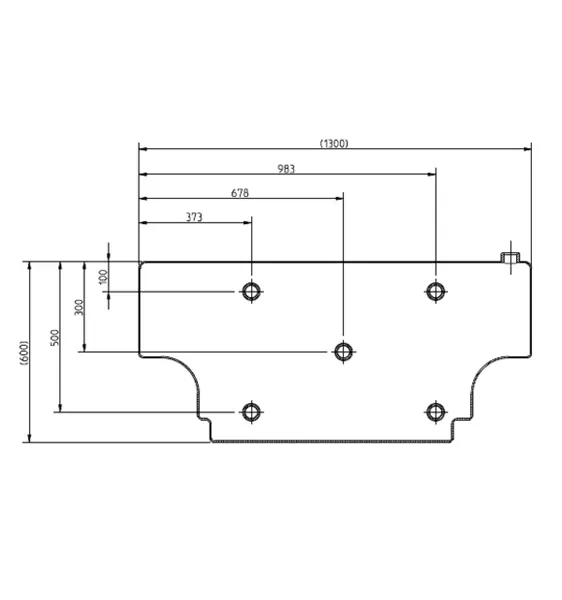

Dimensions: 1295mm wide x 600mm high ( 30mm for cap) 75mm thick. The cutout each side is 200mm wide x 300mm high. An additional small rebate contains the brass outlet.

Brass outlet uses 1/2" BSPT thread to allow normal hardware plumbing fittings to be used for custom hose or pump kits.

Or you may prefer to order our Hose or Pump kits

Dimensions:

• Length: 1300mm
• Width: 600mm

Outback Explorer

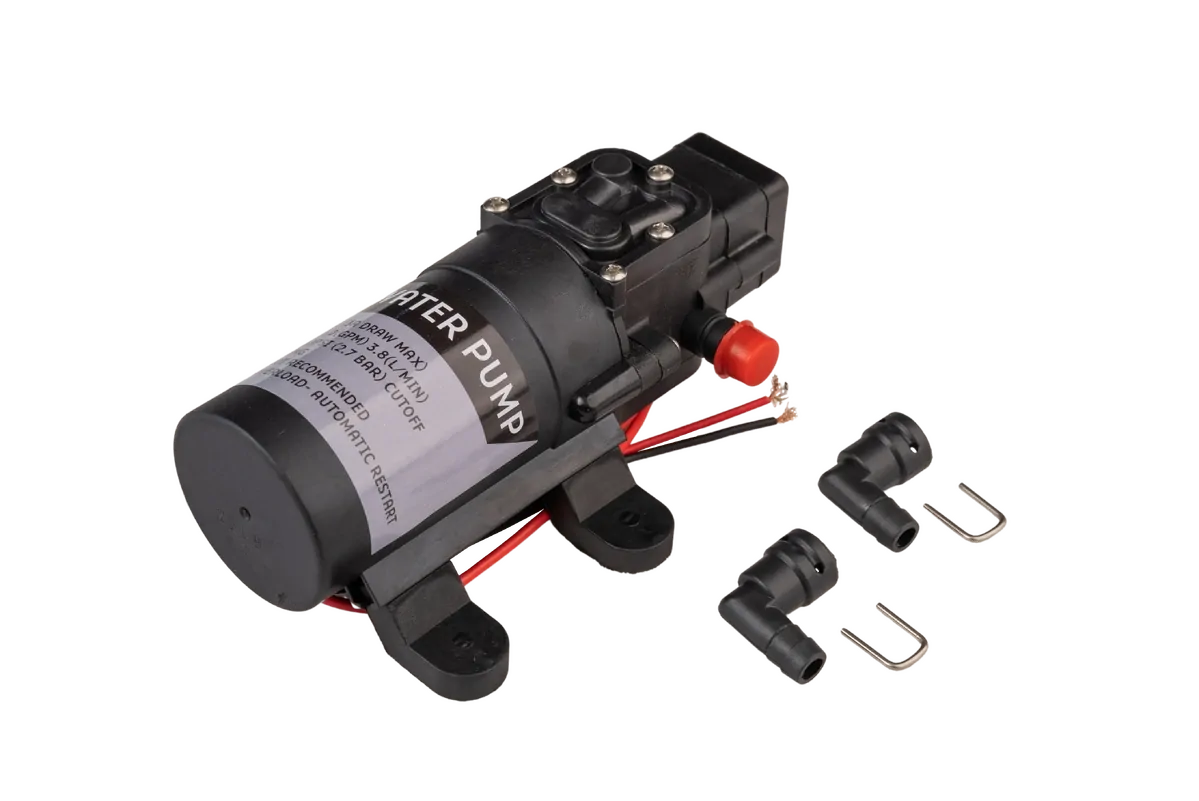

Outback Explorer 3.8L 12v Water Pump

FEATURES OF MINI WATER PUMP

Stable performance,
Self-priming, automatic switch,
Low Noise, corrosion resistant.

Pump Head 2 chambers

Flow rate: 3.8LPM

Max Pressure:  40PSI

Power draw: up to 3A

Motor Configuration lead wires 2-pin connector

2-pin connector with on/off switch

Reciprocating Diaphragm made of Santoprene

Duty cycle: intermittent.

Housing PP

Check valve made of EPDM

Check valve spring: Stainless steel

10mm OD barbed elbow fittings

10mm Hose Kit for ElectPump

10mm Hose Kit 2m long for use with 12v Electric Water Pump

Kit contains:

• 2 metres of 10mm reinforced hose
• 5 clamps
• 3 tail fittings
• Mini ball valve

Please note fittings are now in Diesel safe plastic.

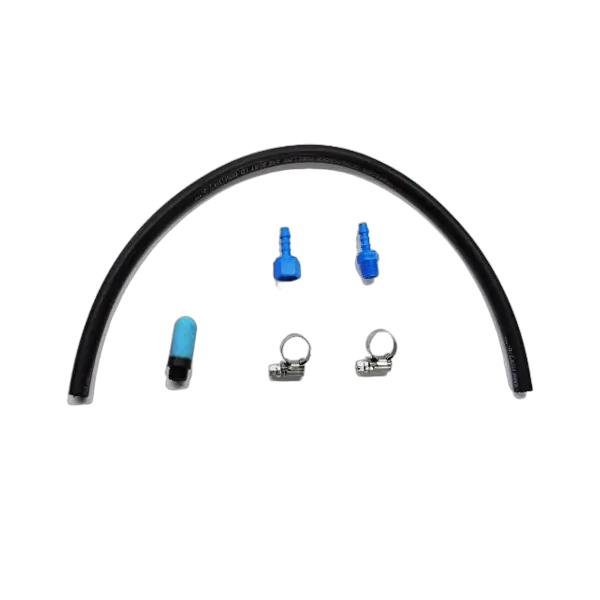

Vent Kit For Poly Water Tanks

Vent Kit for Poly Water Tanks, includes hose, fittings, hose clamps and filter to suit WTP45FV and WTP60FV, other tanks will require drilling and tapping.

The tank is fitted with a ¼” BSPT brass insert located near the filler cap (Some tanks may have a ½” outlet and an adapter may need to be sourced). This connection is for a vent to allow the tank to breath when water is drained into another tank or in case of expansion of the water in hot weather. This vent kit includes a short piece of hose to allow the vent to be located well above the top of the tank. The filter is designed to prevent dust entering the tank and will NOT stop water so it is essential that the filter be mounted above the height of the tank – even when the vehicle is parked on a steep angle or used in rough off-road conditions.

Important Notes:

If using the tank inside a vehicle please be aware there may be some seepage from the filter and do not

place in a spot that could damage other items if this happens.

FILLER KIT TO SUIT WATER TANK

Filler Kit suit WTP45FV & WTP60FV Water Tanks (Includes Filler Neck-Elbow-Clamps)

Internal diameter: 38mm

External diameter: 47mm

Please Note:

This is a generic fitment kit designed to be the basis of what you need. Depending on the tank and its outlets, additional adaptors/ fittings may be required.

Important Fitment Note:
Please note: We advise that all water tank installations should only be done by a qualified person and it is the responsibility of this person to ensure correct installation and fitment.
