Plusquip 8-18V Obdii Handheld Scan Tool 2.8" Color Scrn Built In Obdii Library Print Reports Via Pc

Specifications:

▪ Operating Voltage: 8.0 - 18.0Vdc
▪ Operating Temp.: 0°C - 60°C
▪ Storage Temp.: -20°C - 70°C
▪ Dimensions: 155 x 98 x 33mm
▪ Weight: 0.38kg
▪ This is a universal code reader and will work on all vehicles built after 1996 carrying the OBDII protocol such as: CAN, J1850 PWM, J1850 VPW, ISO9140, KWP2000

OBDII Functions:

▪ Read code
▪ Clear code
▪ Live data stream
▪ Freeze frame data
▪ I/M readiness
▪ Vehicle Info
▪ O2 sensor test data
▪ On-board monitoring
▪ EVAP system test

Features:

▪ Real time battery voltage
▪ Help function (view specific fault code explanation)
▪ Records and plays back fault code
▪ Review fault code
▪ Built-in OBD2 fault code lookup library
▪ Multilingual menu options and code definitions
▪ Print diagnostic reports via PC connection
▪ Software upgradeable
▪ Color screen

Kit includes

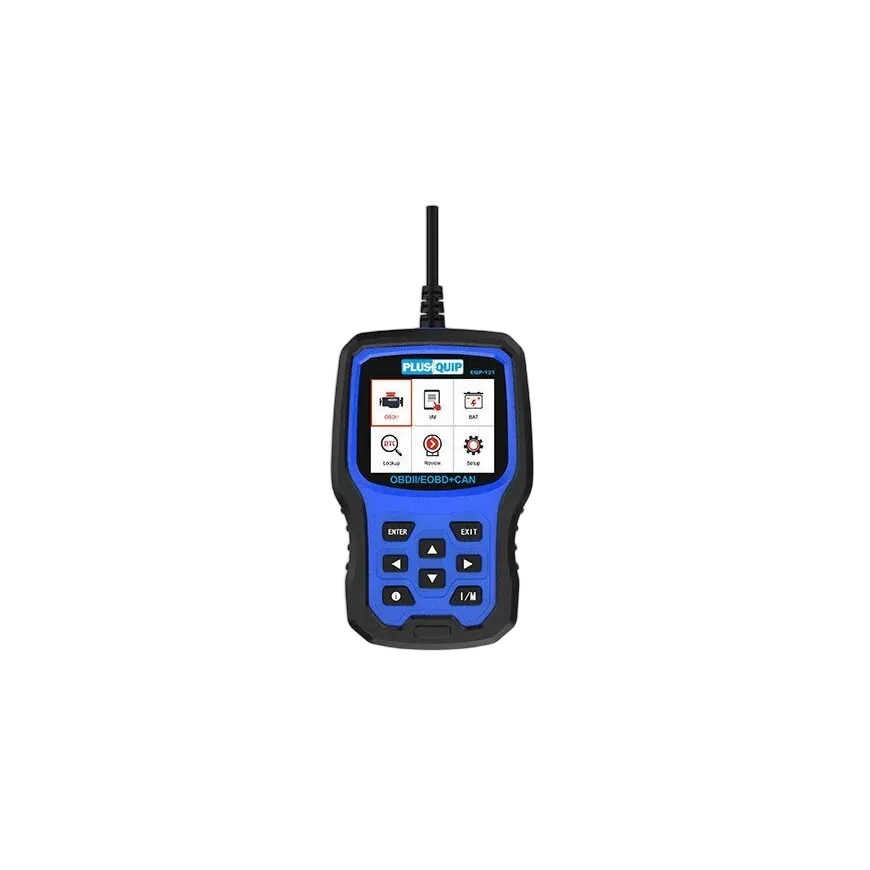

PLUSQUIP EQP-121 OBDII/EOBD Code Reader
User’s Guide
USB cable
OBDII Cable

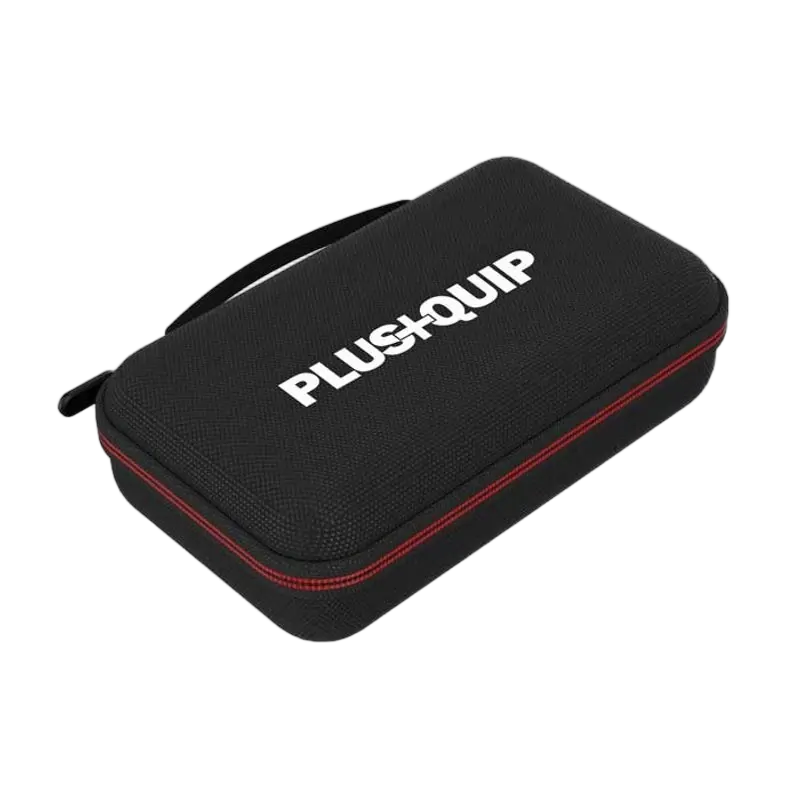

Storage Pouch
