Features

SIMARINE PICO sets new standards for marine battery and tank monitors in fields of design, functionality, connectivity and ease of use.

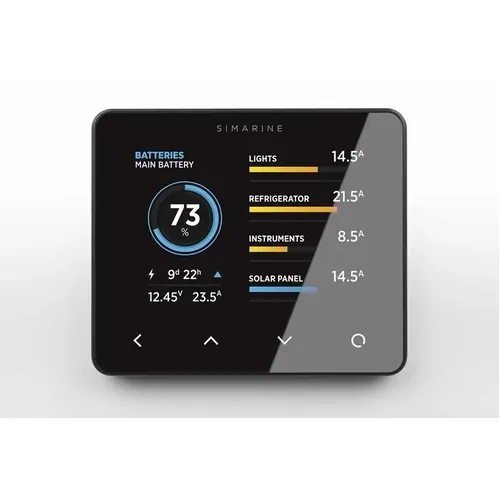

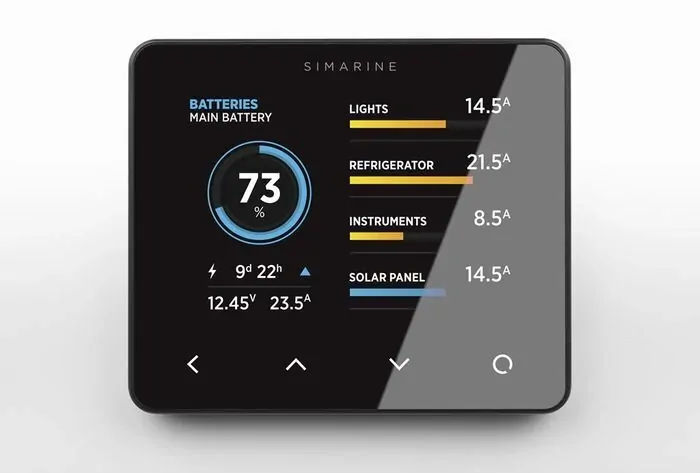

PICO’s display unit is made of a sleek anodized aluminum casing and a thick Gorilla® Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display. It’s water and dust proof and can be mounted both indoors and outdoors. The screen brightness is automatically adjusted with a light sensor. The device is operated by four water tolerant CapSense® touch buttons.

The Pico system provides you with a simple overview of all important details regarding your battery (voltage, current, amp hours, battery capacity in%, battery temperature) and also tank level and temperature indications.

Free SIMARINE Android and iOS Apps:

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.






Specifications


Model Simarine Pico
SI-PICO1 Standalone Black Bezel
SI-PICO2 Standalone Silver Bezel
SI-PICO3 Panel Mount Black Bezel
SI-PICO4 Panel Mount Silver Bezel
Power Source Voltage Range 6-35V
Temperature Range -20 - +70°C
Power Consumption at 12V
Operating, WiFi On, 100% Illumination 90mA
Operating, WiFi Off, 70% Illumination 35mA
Operating, WiFi Off, 0% Illumination 18mA
Power Off, logger still active 5mA
Resolution
Current (A) ±0.01A
Voltage (V) ±0.01V
Amp Hours (Ah) ±0.1Ah
SOC - State of Charge (0-100%) ±0.01A
Temperature ±0.1 °C/°F
Voltage Inputs Range 0-75V
WiFi Radio Frequency Band 2.4GHz
Dimensions (without Connectors)
Standalone 89 x 84 x 10mm
Panel Mount 108.5 x 94 x 10mm
Connectivity Up to
Batteries 6
Shunts 24
Temperature Sensors 10
Tank Level Sensors 14
Inclinometer Sensors 2
Smartphone Applications 1
Logger Capacity Up to 3 Months


SKU SI-PICO-1
Barcode # SI-PICO-1
Brand Enerdrive
Shipping Weight 1.0000kg
Assembled Length 0.150m
Assembled Height 0.100m
Assembled Width 0.150m
