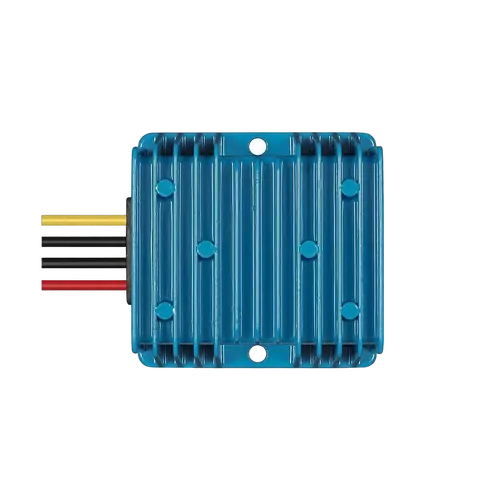

Completely encapsulated: waterproof, shockproof and ignition protected Water, *** or dirt will not ****** the ***** IP67 DC-DC Converter. The casing is made of cast aluminium and *** electronics are ******* in resin.
Available in 3 models:
Orion IP67 24/12-5
Orion IP67 24/12-10
Orion IP67 24/12-20
Completely encapsulated: waterproof, ********** and ignition protected:
Water, oil or dirt will not ****** the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics *** ******* in resin.
Extra-long input and ****** cables:
Thanks to the cables of 1.8 meters in length, intermediate cable **************** ** increase length even more will ** most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection ***** is needed.
**** ***** voltage range:
With 15 to 40 Volts input range, a stable output ** ensured during surges or sags due to other equipment connected to same battery.
Protected against overheating:
It can be **** in a *** environment such as a ******* room.
|
Orion IP67 |
24/12-5 |
24/12-10 |
24/12-20 |
|
Input voltage range |
15-40VDC |
||
|
Under voltage shutdown |
13V |
||
|
Under voltage restart |
14V |
||
|
** load current at 24V |
1mA |
20mA |
50mA |
|
** ****** voltage |
12V +/- 3% |
12V +/- 3% |
12V +/- 3% |
|
Maximum continuous output current |
5A |
10A |
20A |
|
Efficiency |
93% |
93% |
95% |
|
Ripple & Noise |
75** pp |
||
|
********* *********** ***** (derate 3% per °C above 40°C) |
-20 to +70°C (full ***** output up to 40°C) |
||
|
******** protection |
Hiccup mode, recovers ************* after fault condition is removed |
||
|
Short ******* proof |
Yes |
||
|
Protection against reverse polarity connection |
With ******** fuse or circuit ******* (not included) |
||
|
ENCLOSURE |
|||
|
Material & Colour |
Aluminium (blue RAL 5012) |
||
|
Protection category |
IP67 |
||
|
DC connection |
Two input and two output cables, length 1,8m |
||
|
Cable cross section, input |
0,8mm² (18 AWG) |
1,5mm² (15 AWG) |
2,6mm² (13 AWG) |
|
Cable cross section, output |
0,8mm² (18 AWG) |
1,5mm² (15 AWG) |
2,6mm² (13 AWG) |
|
Weight (kg) |
50 g |
3** g |
300 g |
|
Dimensions (h x w x d in mm) |
25 x 43 x 20 |
74 x 74 x 32 |
74 x 74 x 32 |
|
STANDARDS |
|||
|
Safety |
EN 60950 |
||
|
Emission |
EN 61000-6-3, EN 55014-1 |
||
|
Immunity |
EN 55014-2, EN 61000-6-1, EN 61000-6-2 |
||
|
Automotive Directive |
ECE R10-4 |
||
|
Vibration |
IEC 68-2-6: 10-150 Hz / 1.0 G |
||
| SKU | ORI241210260 |
|---|---|
| Barcode # | 8719076048435 |
| Brand | Victron |
| Shipping Weight | 1.0000kg |
