17%OffRRP
SPST, ‘On’ illumination Amperage rating 20A at 12V, 10A at 24V Mounting opening: 160 x 83mm Overall Panel Dimensions: 183 x 100mm Circuit Breakers: 3 x 10A (P/No. 55310) 3 x 15A (P/No. 55315)

SPECIFICATIONS

  • Technical Information
CURRENT DRAW Amperage rating 20A at 12V, 10A at 24V
LEDs 38
COMPRISES 5 Off/On switches and 1 Momentary (On) switch.; Symbol and switch illuminate green when ‘On’ and symbol illuminates red when ‘Off’.; 60 piece symbol set for RV and Marine applications;
SKU 63194
Barcode # 9314464631948
Brand Narva
Shipping Weight 0.5300kg
Shipping Width 0.090m
Shipping Height 0.130m
Shipping Length 0.220m
SKU: 63194

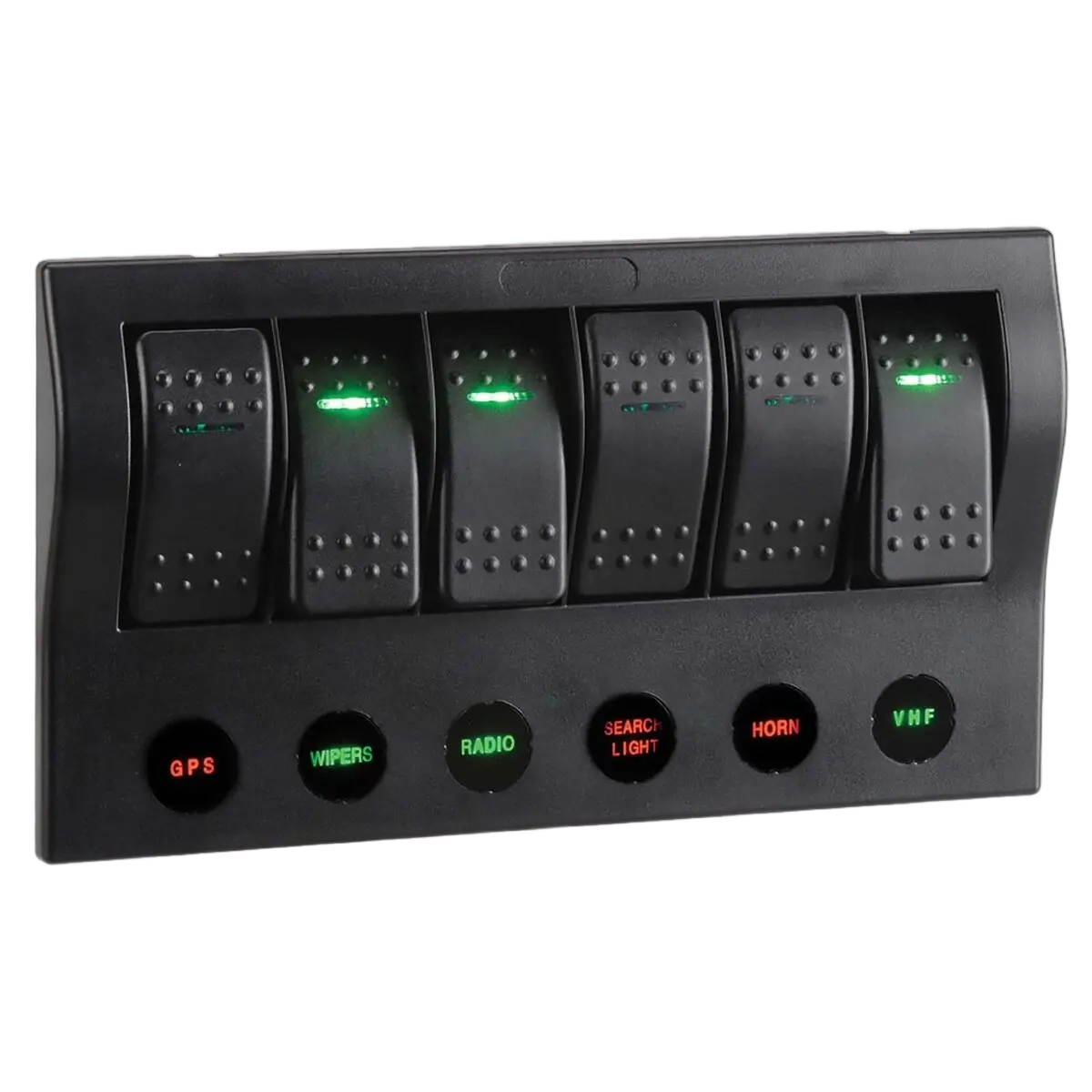

Narva 6-Way LED Switch Panel With Circuit Breaker Protection

QOH: 0
QTY: 999
Sale price
$257.70

Don't Pay RRP:$310.00

Earn 2,570 Outback Rewards Points

Sale price
$257.70

Don't Pay RRP:$310.00

Pay in 4 interest-free payments of $64.42 PayPal Checkout

More info.

Make 4 payments of $64.42 over 8 weeks and get it now!

or interest free for up to 12 months with zipMoney
Make 4 payments of $64.42 over 8 weeks and get it now! Afterpay

Calculate Shipping

SPST, ‘On’ illumination Amperage rating 20A at 12V, 10A at 24V Mounting opening: 160 x 83mm Overall Panel Dimensions: 183 x 100mm Circuit Breakers: 3 x 10A (P/No. 55310) 3 x 15A (P/No. 55315)

SPECIFICATIONS

  • Technical Information
CURRENT DRAW Amperage rating 20A at 12V, 10A at 24V
LEDs 38
COMPRISES 5 Off/On switches and 1 Momentary (On) switch.; Symbol and switch illuminate green when ‘On’ and symbol illuminates red when ‘Off’.; 60 piece symbol set for RV and Marine applications;
SKU 63194
Barcode # 9314464631948
Brand Narva
Shipping Weight 0.5300kg
Shipping Width 0.090m
Shipping Height 0.130m
Shipping Length 0.220m
