12Volt

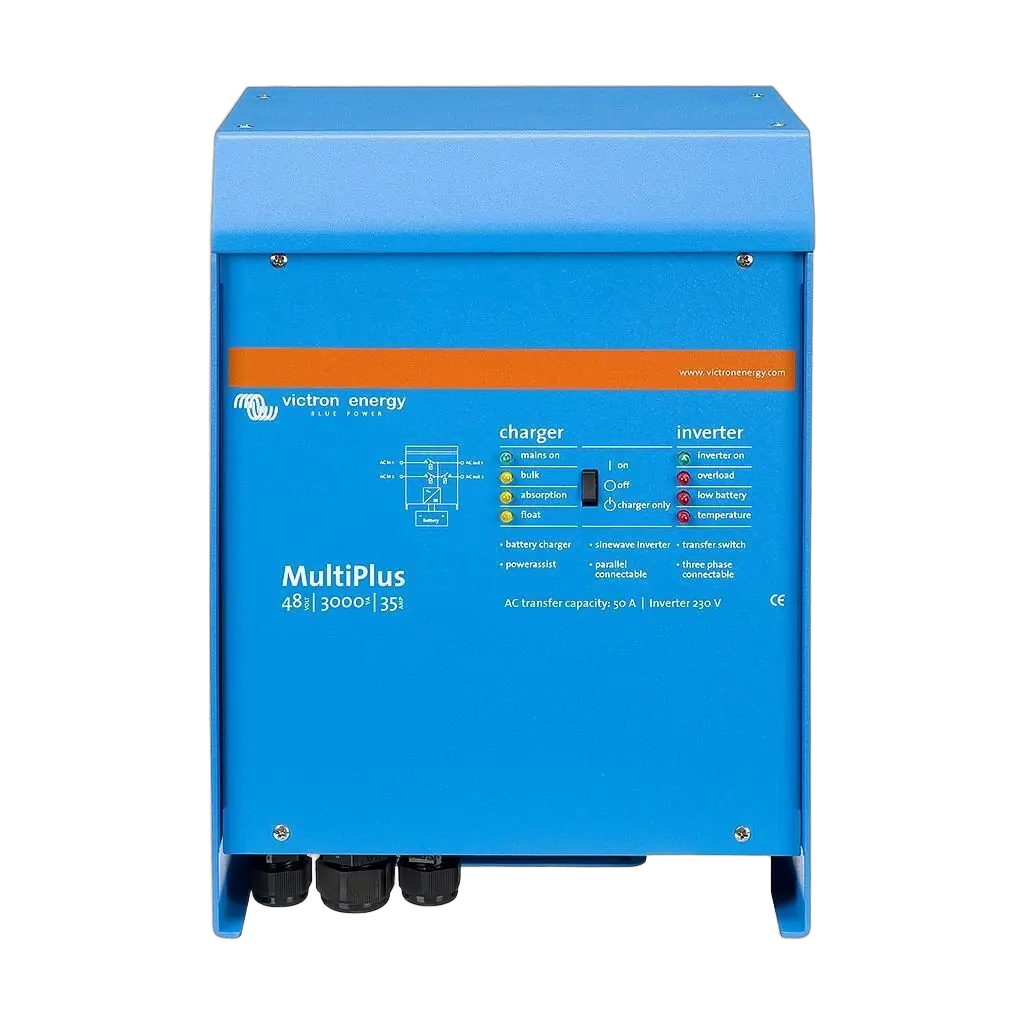

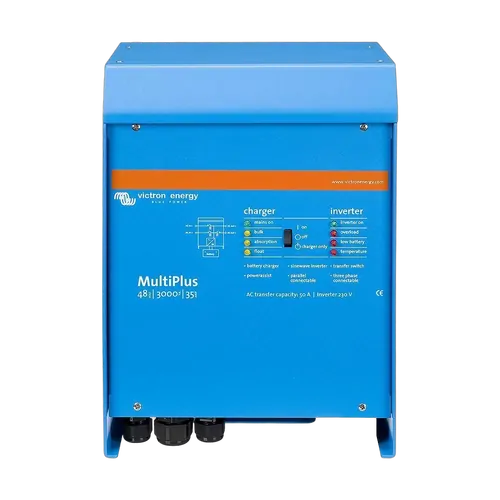

MultiPlus       24Volt

48Volt

24/5000/120

48/5000/70

PowerControl

Yes

PowerAssist

Yes

Transfer switch (A)

100

INVERTER

Input voltage range (V DC)

9,5 –17V   19 –33 V       38 – 66V

Output

Output voltage: 230 VAC±2%    Frequency: 50 Hz ± 0,1%(1)

Cont. output power at 25°C (VA) (3)

5000

Cont. output power at 25°C (W)

4000

Cont. output power at 40°C (W)

3700

Cont. output power at 65°C (W)

3000

Peak power (W)

10.000

Maximum efficiency (%)

94 / 95

Zero load power (W)

30 / 35

Zero load power in AES mode (W)

25 / 30

Zero load power in Search mode (W)

10 / 15

CHARGER

AC Input

Input voltage range:187-265VAC    Input frequency: 45 –65 Hz        Power factor:1

Charge voltage 'absorption' (V DC)

14,4 / 28,8 / 57,6

Charge voltage 'float' (V DC)

13,8 / 27,6 / 55,2

Storage mode (V DC)

13,2 / 26,4 / 52,8

Charge current house battery (A) (4)

120 / 70

Charge current starter battery (A)

4 (12 V and 24 V models only)

Battery temperature sensor

yes

GENERAL

Auxiliary output (5)

Yes (50A)

Programmable relay (6)

Yes

Protection (2)

a - g

VE.Bus communication port

For parallel and three phase operation, remote monitoring and system integration

General purpose com. port

Yes

Remote on-off

Yes

Common Characteristics

Operating temp. range: -40 to +65°C (fan assisted cooling) Humidity (non-condensing): max 95%

ENCLOSURE

Common Characteristics Battery-connection

230 V AC-connection

Material & Colour: aluminium (blueRAL5012)   Protection category: IP21

Four M8 bolts (2 plus and 2 minus connections)

M6 bolts

Weight (kg)

30

Dimensions (hxwxd in mm)

444x328x240

STANDARDS

Safety

EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1

Emission, Immunity

EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3

Road vehicles

12V and 24V models: ECE R10-4

Anti-islanding

See our website

1)  Canbeadjustedto60HZ;120V60Hzonrequest

2)  Protectionkey:

a)  output short circuit

b)  overload

c)  batteryvoltagetoohigh

d)  batteryvoltagetoolow

e)  temperature toohigh

f)230 VAC on inverteroutput

g)  input voltage ripple toohigh
