Description
Features
- Provides 10 lighting options – User adjustable for 2 to 10 hours on or for on all night. Unique ON/OFF/ON settings conserve energy and turns light on again for 1 or 2 hours before sunrise. Timer accuracy is within 2 seconds.
- Easy to install – To confirm correct installation, test button turns light on during the day and LED indicates selected lighting option.
- Rugged industrial design – Epoxy encapsulated electronics, marine rated terminals and anodized aluminium case.
Specifications
Model | SL-10 | SL-20 | 24 V |
System Voltage | 12 V | 12 V | 12 V |
Maximum Voltage | 30 V | 30 V | 50 V |
Rated Solar Input | 10A | 20A | n/a |
PV Short Circuit Rating | 12.5A | 25A | n/a |
Rated Load | 10A | 20A | n/a |
25% Current Overload | 5 minutes | 5 minutes | n/a |
Regulation Voltage: | |||
Sealed PWM | 14.1 V | 14.1 V | 28.2 V |
Flooded PWM | 14.4 V | 14.4 V | 28.8 V |
LVD | 11.7 V | 11.7 V | 23.4 V |
LVD Reconnect | 12.8 V | 12.8 V | 25.6 V |
Temp Compensation | -27 mV/°C | -27 mV/°C | -54 mV/°C |
Self consumption | 8 mA | 8 mA | 9 mA |
Ambient Operating Temperature | –40°C to +60°C | ||
Dimensions | 16.8 x 5.5 x 3.4 cm | ||
Warranty | 5 years |
Specifications
SKU | SR-SL-20L-24V |
---|---|
Barcode # | OEBC527699 |
Brand | Morningstar |
Shipping Weight | 0.4000kg |

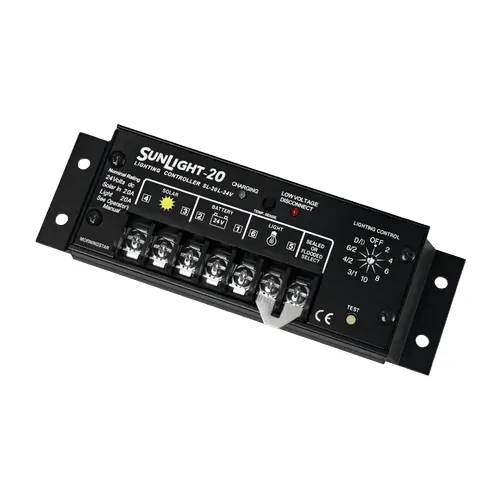

Morningstar Sunlight 20Amp/24V/Lvd
