5025 Series

5025 Series

Features / Specifications

  • Non fastener fitting design
  • Low profile and compact
  • Saves Time on Installation
  • ADR approved
  • IP67 100% Water proof
  • Voltage Range 12-24 Volt
  • 5 Year Warranty
  • 50mm x 25mm x 21mm



DOWNLOAD DATA SHEET

Fitting Instructions

Drill a 10mm hole for the serrated plug. Pull the sheathed cable through the hole.
Remove the protective film from the 3M tape. Push the serrated plug into the hole
Line up the lamp and press firmly. The lamp is held securely with the plug serrations and high quality 3M tape. Please refer to ADR 13/00 for mounting instructions..

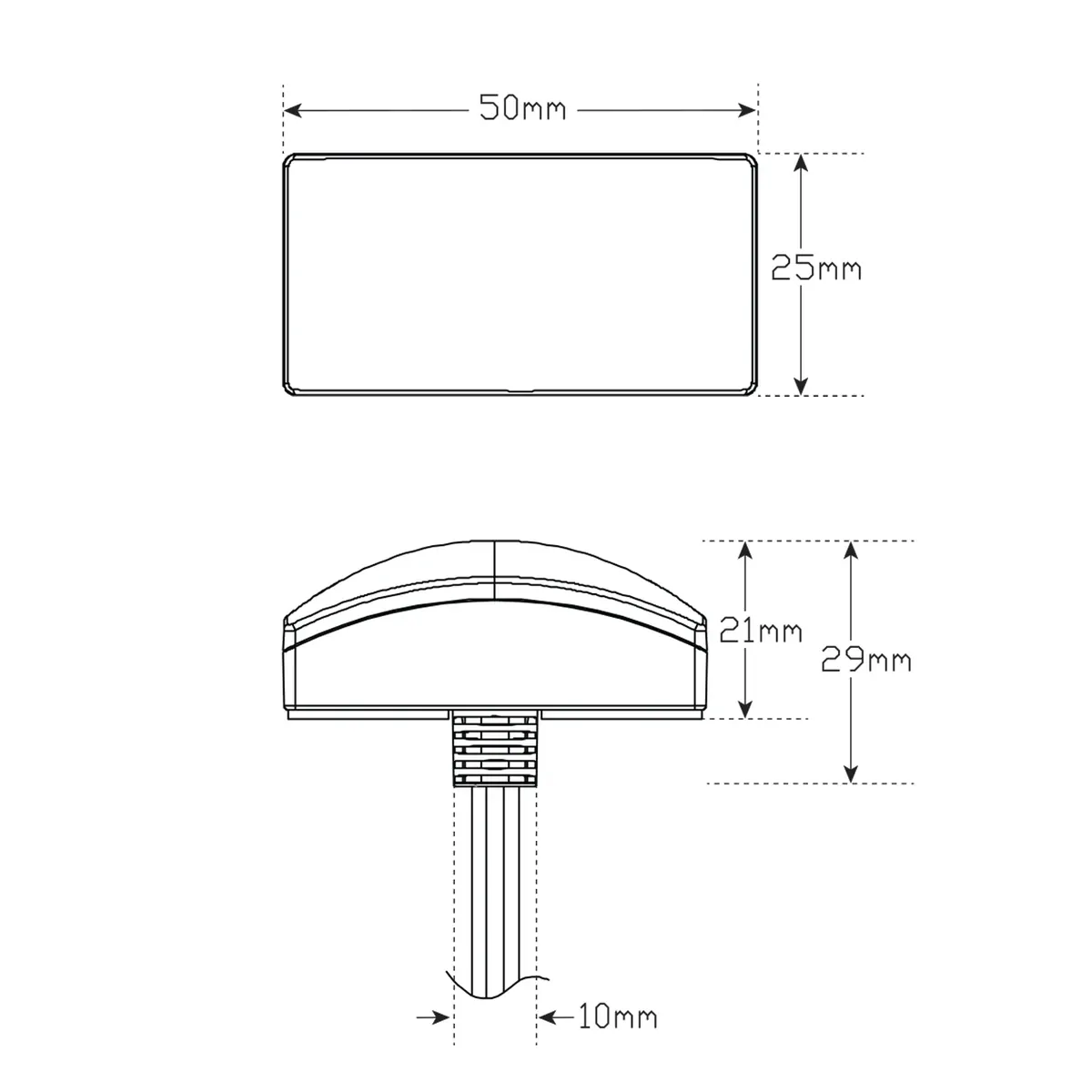

Technical Drawings

More details


SKU 5025AMB
Barcode # 9335962017010
Brand LED Autolamps
Shipping Weight 0.0250kg
Shipping Width 0.060m
Shipping Height 0.025m
Shipping Length 0.090m
SKU: 5025AMB

Marker Lamps 5025AMB

QOH: 0
QTY: 999

Sale price
$15.99
Pay in 4 interest-free payments of $4.00 PayPal Checkout

afterpay More info.

Make 4 payments of $4.00 over 8 weeks and get it now!

or interest free for up to 12 months with zipMoney
Make 4 payments of $4.00 over 8 weeks and get it now! Afterpay
Side Direction Indicator/Front End Outline, Black, 12-24 Volt, 50 X 25 X 21Mm, Bulk Poly Bag, Adr 47215,47218.
