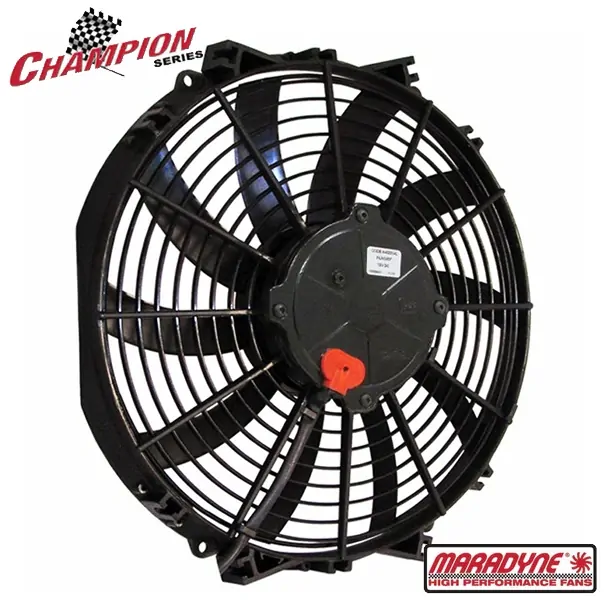

The M142K-24(EF8917) 24v 14" Maradyne Champion Series Fan features a reversible blade design whichis ratedup to 2135cfm / 3627m3/h in the standard puller configuration.
The Maradyne Champion SeriesEF891714" Thermo Fan features a fully-sealed 225W high power motor (IP68) and is backed with a 36-month manufacturers (see below).
| M142K-24 14" 225w THERMO FAN DETAILS |
| Fan Model # |
M142K |
| Fan Series |
Champion Series |
| Voltage |
24V |
| Motor |
LL 225W Heavy Duty |
| Flow Type |
Puller or Pusher (ships as puller) |
| Blade Diam. |
14 inch (355mm) |
| Blade Type |
Skew |
| Shroud Type |
Finger Guard |
| Amps |
15.2 |
| CFM |
2135 |
| M3/H |
3627 |
| Spec. Sheet |
View Specifications  |
|
|
| Mounting |
View Mounting Instructions |
| Included in Box |
- Thermo Fan
- Wiring Pigtail
- 4 x Mounting Feet
|

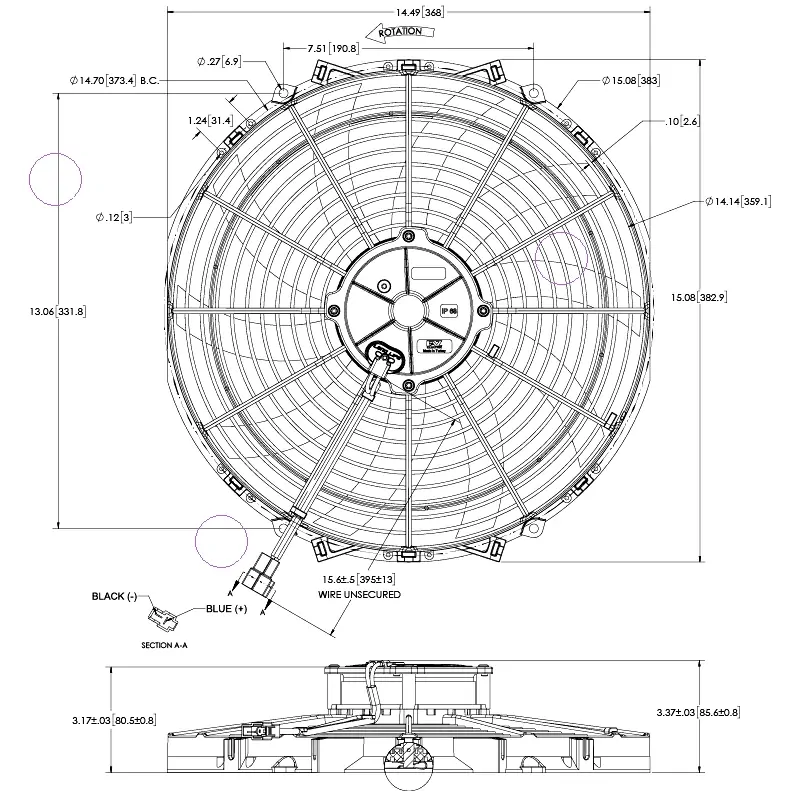

| M142K-24 14" 225w THERMO FAN DIMENSIONS |
| A |
368mm / 14.49" |
| B |
331.8mm / 13.06" |
| C |
190.8mm / 7.51" |
| D |
383mm / 15.08" |
| E |
85.6mm / 3.37" |
 |
| MORE INFORMATION |
|
|
|
|
- Lowest profile high performance reversible thermo fans on the market
|
- Sealed motor tested in accordance with DIN EN 60529, dust and waterproof to IP68
|
- Quiet, S-blade design works as a puller or pusher fan (ships as a puller)
|
- All glass-filled nylon construction
|
- Includes (4) 90° mounting feet, locking mating pigtail connector and rubber spacers
|
|
|
|
|
|
|
