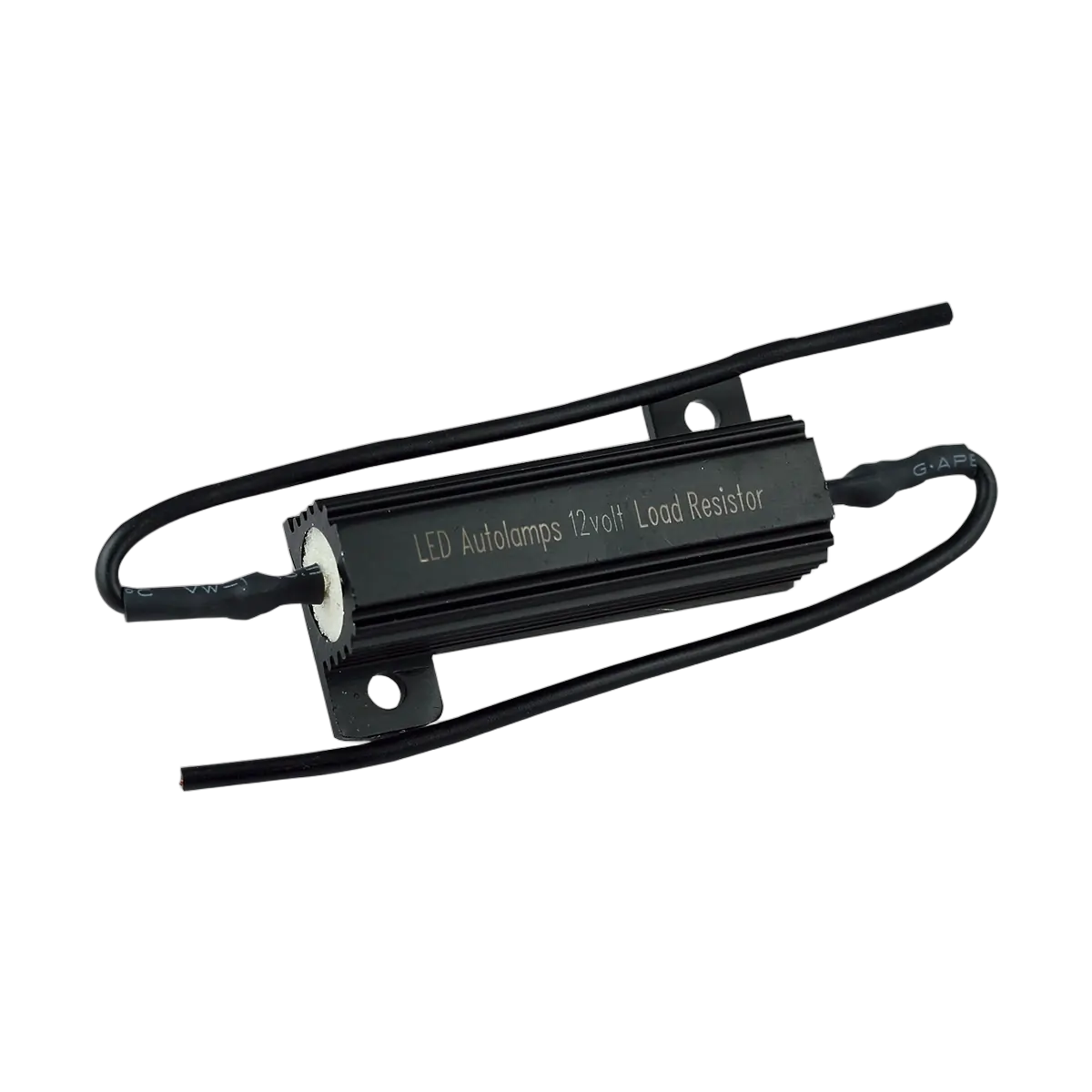

Load Resistor

Load Resistor

Features / Specifications

  • Designed for late model vehicles that display light failure warning.
  • 12 Volt 50 Watt 6Ω Ohms
  • 24 Volt 50 Watt 24Ω Ohms
  • IP67 Shock/dust/water proof
  • 5 Year Warranty

Fitting Instructions

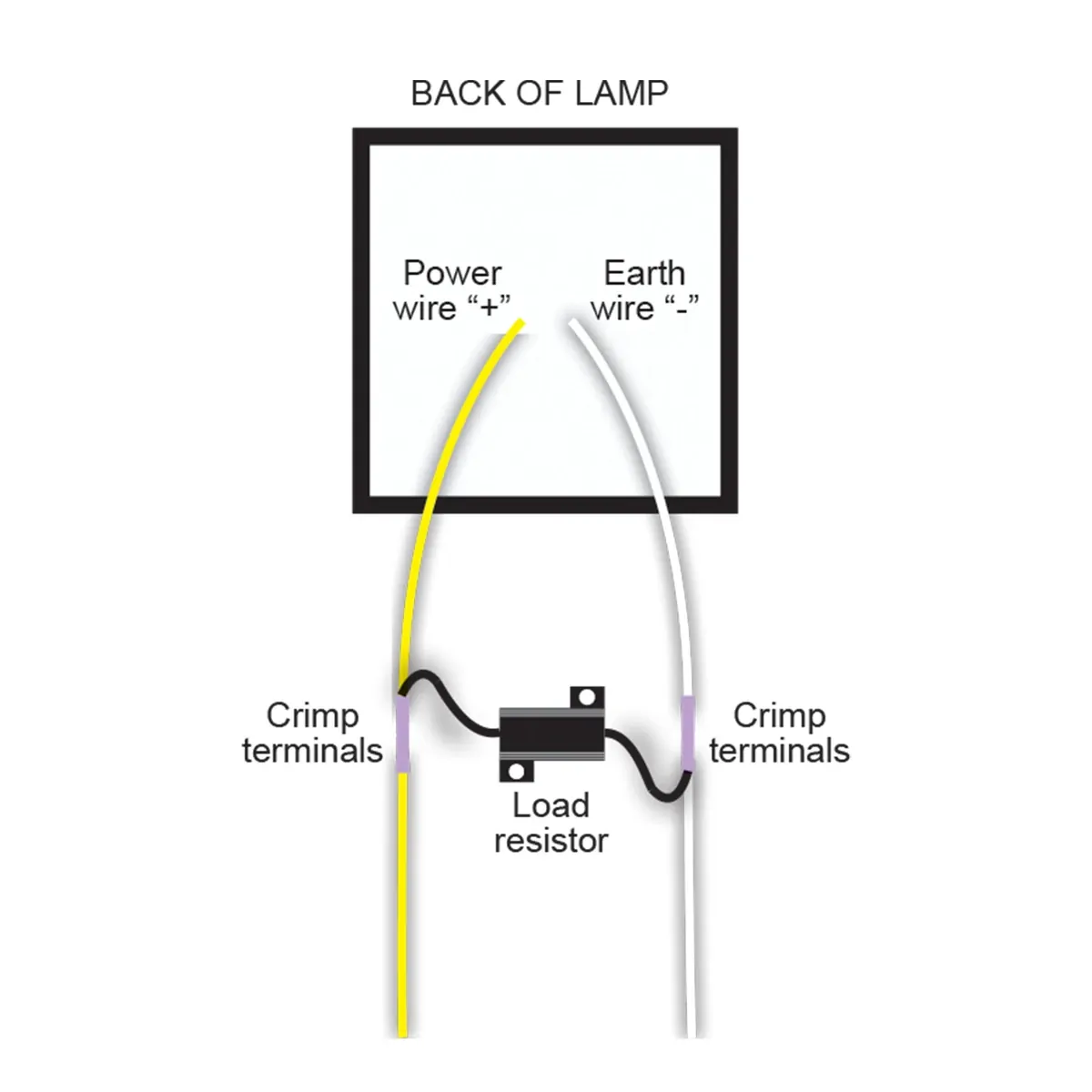

Must be mounted on metal surface, the resistor can reach temperatures of up to 170 Celsius. You may require up to 1 resistor per function on each side. The resistor should always be wired between the input wires of the lamp, Not the chassis of the vehicle or trailer! If fitted to the chassis, a bad earth connection is possible and can result in problems with the lighting system of the vehicle.

Technical Drawings

More details


SKU LR122
Barcode # 9335962002771
Brand LED Autolamps
Shipping Weight 0.1000kg
Shipping Width 0.120m
Shipping Height 0.140m
Shipping Length 0.030m
SKU: LR122

Load Resistors LR12/2 (Twin Pack)

QOH: 0
QTY: 999

Sale price
$32.99
Pay in 4 interest-free payments of $8.25 PayPal Checkout

More info.

Make 4 payments of $8.25 over 8 weeks and get it now!

or interest free for up to 12 months with zipMoney
Make 4 payments of $8.25 over 8 weeks and get it now! Afterpay

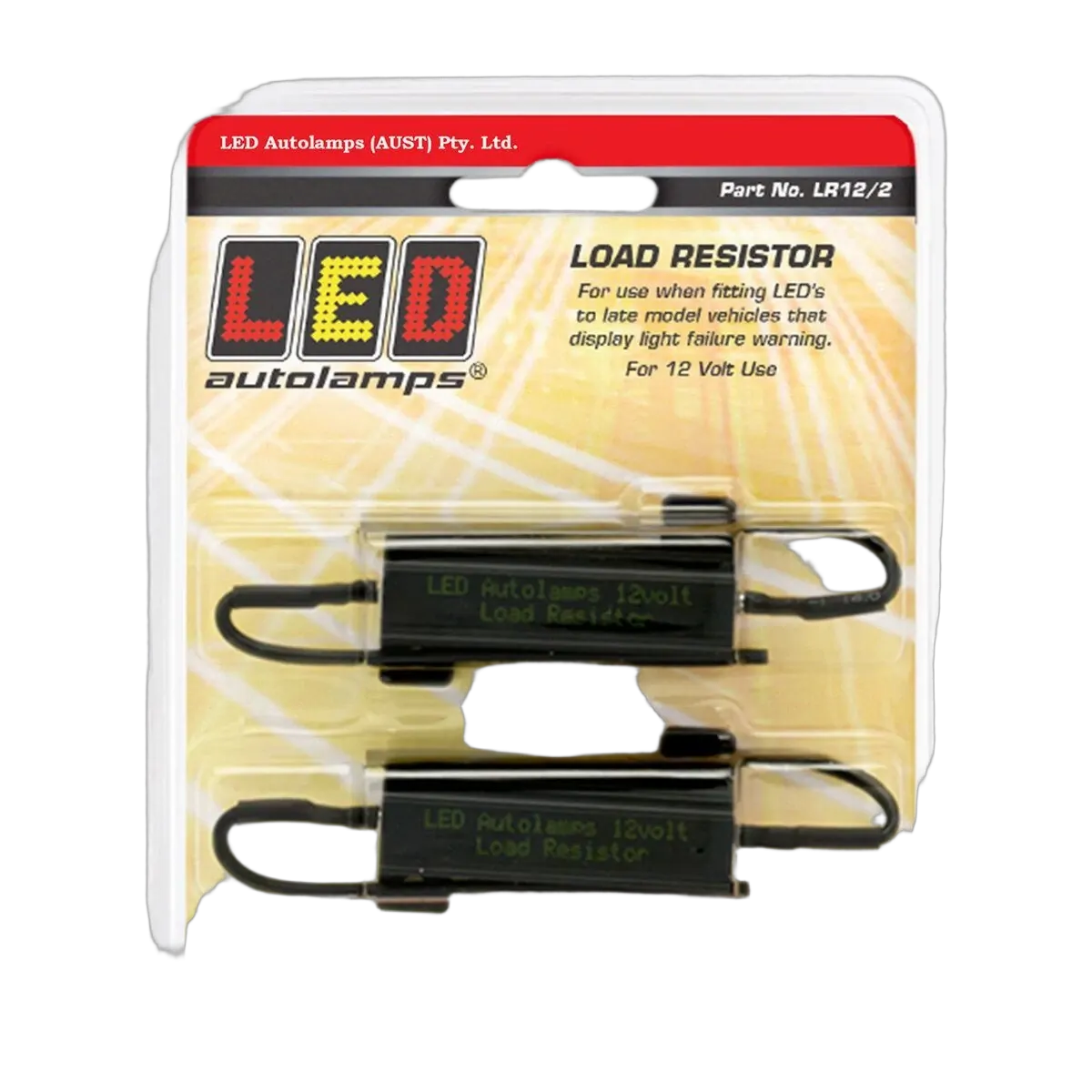

12 Volt Load Resistor In Blister Pack Of 2
