Description

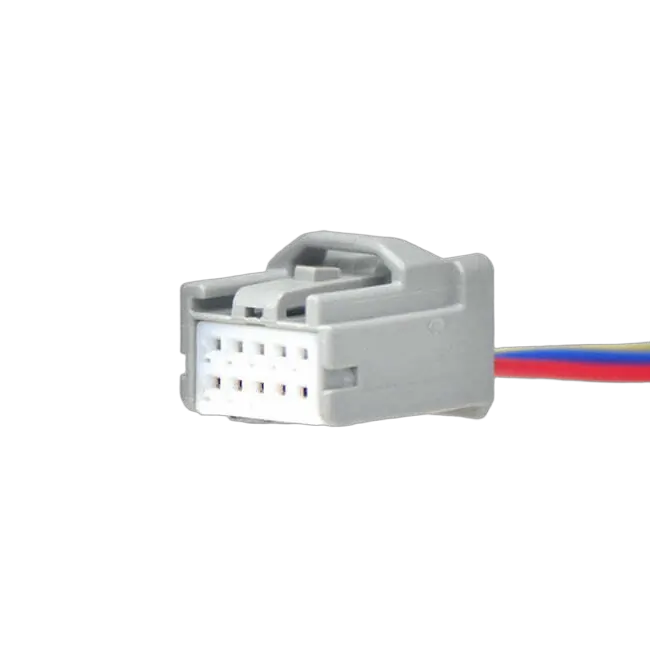

Switch connector only (100mm in length) suitable for use with the Ford Ranger PX1 and second-generation Mazda BT50 October 2011 onwards OEM driving light switch.

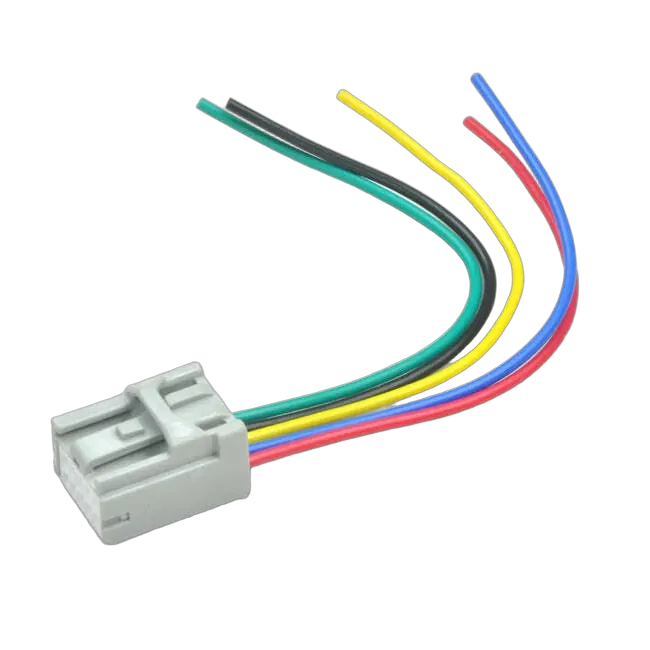

Wiring instructions:• Red wire - Illuminates the blue indicator on the switch (when in the on position) for this to function connect with the yellow wire• Blue wire - 12v in from high beam circuit• Yellow wire - 12v switched out, connect with the red wire, then connect to relay {87}• Black wire - Connect to earth circuit (negative)• Green wire - From 12v dash light circuit (illuminates Roo logo or image)
VEHICLE COMPATIBILITY
| MAKE | MODEL | COMPATIBLE FROM | COMPATIBLE TO |
|---|---|---|---|
| Ford | Ranger PX | 2011 | 2015 |
| Mazda | BT50 | 2011 | 2017 |
Specifications
| SKU | CBSWRC |
|---|---|
| Barcode # | 9335712025777 |
| Brand | Lightforce |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.100m |
| Shipping Length | 0.050m |
SKU: CBSWRC
Lightforce Switch Connector To Suit Mazda/Ford
Sale price
$11.00
Pay in 4 interest-free payments of $2.75
More infoMake 4 payments of $2.75 over 8 weeks and get it now!
or interest free for up to 12 months with
Make 4 payments of $2.75 over 8 weeks and get it now!
Switch connector sold as a replacement part for Ford/Mazda suitable switches sold by Lightforce.
