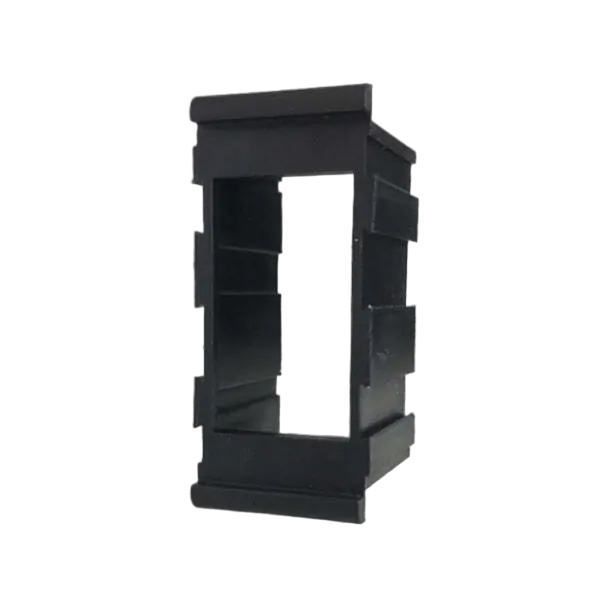

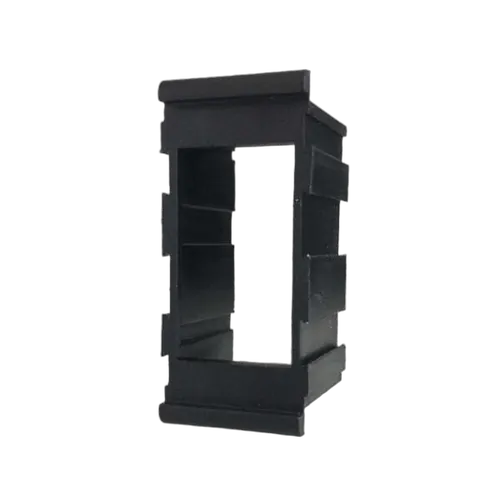

Connect these too the end switch housings to expand the row as long as required using multiple middle housings.These mounting housings have approximately 5.00mm mounting flange.When connected together only one continuous channel is required to be cut-out for each switch fitted.

• Sold individually
•  Mounting hole for carling style rocker switches is: 37.5mm x 21.5mm
• Modular fitment
• Dimensions of x2 end pieces connected together is 52mm(H) x 52mm(W)
• Each middle housing will add 26mm in width

To calculate how long to cut a continuous channel for the switch housings to fit, you just need to multiply the number of switches to be used by 26mm (1.02”).

Examples:First switch requires an end housing so that’s 26mm(W) for each additional switch x 26mm(W) for the last end housing x 26mm(W), height is 52mm for all switches.5 Rocker switches are required 26mm x5 = 130mm(W) x 52mm(H) channel is required to be cut-out7 Rocker switches are required 26mm x7 = 182mm(W) x 52mm(H) channel is required to be cut-out
