SKU: DL230_X2

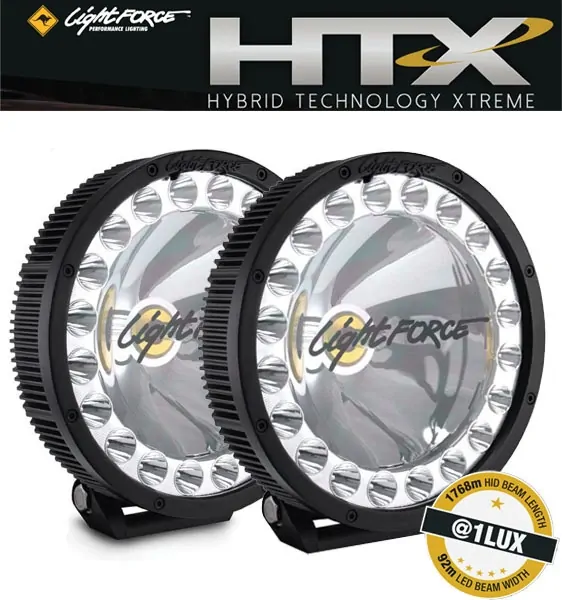

Lightforce HTX Hybrid Driving Lights

Rated 5/5 based on 6 reviews.
$1,349.99

More info.

Make 4 payments of $337.50 over 8 weeks and get it now!

In Stock


Calculate Shipping

Description

The all new Australian made compact DL230 HTX is the ultimate fusion of HID and LED technology, providing the instant flood of LED combined with the unmatched long-distance of HID, eliminating the need for additional spotlights and bars beyond one set of HTX.

FEATURES:

  • 70w HID bulb within 170mm reflector
  • 20 x genuine Lumileds LEDs providing flood beam pattern
  • 1768m @1 LUX
  • Lightweight glass filled nylon composite housing
  • 6063 extruded aluminium for optimum heat dissipation
  • IP69k rated to protect against moisture / contaminant ingress
  • UV stable hard coated impact resistant polycarbonate lens
  • Stainless steel hardware
  • Three mode operation for complete control
  • LED – for instant wide beam
  • HID – for long distance
  • Combine the two for ultimate visibility
  • High current waterproof connector
  • Genuine Gore® waterproof membrane with mechanical seal
  • Over, under and reverse voltage protection
  • Thermal overload protection
  • Australian made
  • 3 year warranty

SPECIFICATIONS:

  • LED power: 80W
  • HID power: 70W
  • Effective lumens: 8400
  • Input voltage range: 10-16V DC
  • Current draw: 11Amps @ 13.2V
  • LED colour temperature: 5000K
  • Matched HID colour temperature
  • Input cable length: 450mm (17.71″)
  • Operating temperature: -40°C to 60°C
  • Weight including bracket: 2.3kg (5.07lbs)
  • Dimensions – 230mm diameter, 111mm depth, 245mm height including bracket

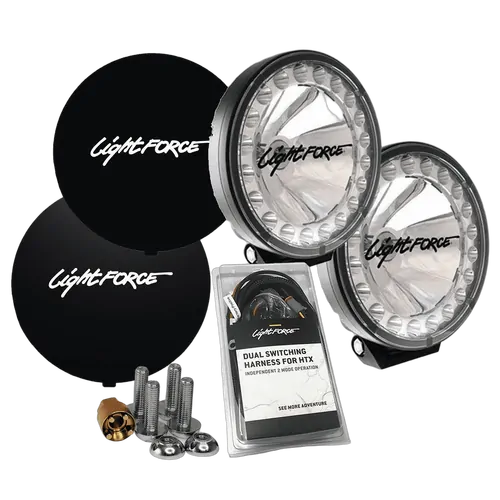

KIT INCLUSIONS:

  • 2 x Lightforce DL230 HTX driving light
  • 1 x Reversible mounting bracket
  • 1 x Mounting hardware
  • Matching 4 pin waterproof harness adaptor
  • Installation Instructions

Specifications

SKU DL230_X2
Barcode # 9335712027214
Brand Lightforce
Shipping Weight 6.0000kg

Reviews

Need sunglasses

By: on 25 June 2019
What a fantastic pair of lights. Look great when switched off, even better at night when switched on. Makes for a simple way to mount both HID & LED lights, without looking like going overboard. Mounting on my bar was simple, although tolerances to adjust vertically is limited (on an ARB Sahara bar, 2019 Ranger), which only really affects the HID beam. The LED beam is not as directional and provides a great spread light.
(5)

Hxt lightforce lights

By: on 20 April 2019
Great product, very happy with product
(5)

HTX230 driving lights

By: on 19 June 2018
Prompt service.product arrived Un damaged ex QLD-PERTH. Excellent lights worth the money even if they are a bit expensive. Were fitted to my freightliner truck
(5)

HTX230 driving lights

By: on 19 June 2018
Prompt service.product arrived Un damaged ex QLD-PERTH. Excellent lights worth the money even if they are a bit expensive. Were fitted to my freightliner truck
(5)

HTX230 driving lights

By: on 19 June 2018
Prompt service.product arrived Un damaged ex QLD-PERTH. Excellent lights worth the money even if they are a bit expensive. Were fitted to my freightliner truck
(5)
