Description
The text illuminates white via the dash light circuit. Once the switch is pushed on, the upper icon window illuminates blue.
This factory-style driving light switch is designed specifically to fit 3rd Generation vehicles only and will fit into the original dashboard, (right-hand side of the steering wheel) without any modification.
Specifications include:
- Switch cut out size is 20mm x 31mm
- Housing material black PVC
- Single switch input
- Dual LED illumination
- Suitable for positive switched vehicles only
- Harness included (300mm in length)
- Current rating 3 amps @ 12v (must be used in conjunction with a relay)
Harness compatibility:
Compatible with Lightforce Single Switch 8 Pin Adaptor # SWADP4. This enables direct connection to Lightforce Harness part number STRIKERLEDHARN (Striker LED Harness).
Switch connectivity:
VEHICLE COMPATIBILITY
| MAKE | MODEL | COMPATIBLE FROM | COMPATIBLE TO |
|---|---|---|---|
| Isuzu | D-max | 2020 | 2023 |
| Isuzu | Mux | 2013 | 2023 |
| Mazda | BT50 | 2020 | 2023 |
Specifications
| SKU | CBSWDC3DL |
|---|---|
| Barcode # | 9335712035165 |
| Brand | Lightforce |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.100m |
| Shipping Length | 0.050m |
SKU: CBSWDC3DL

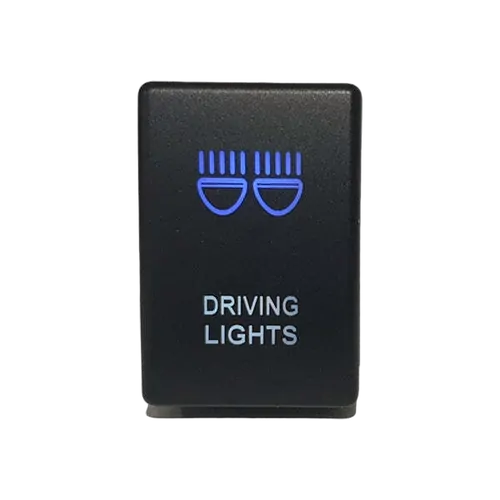

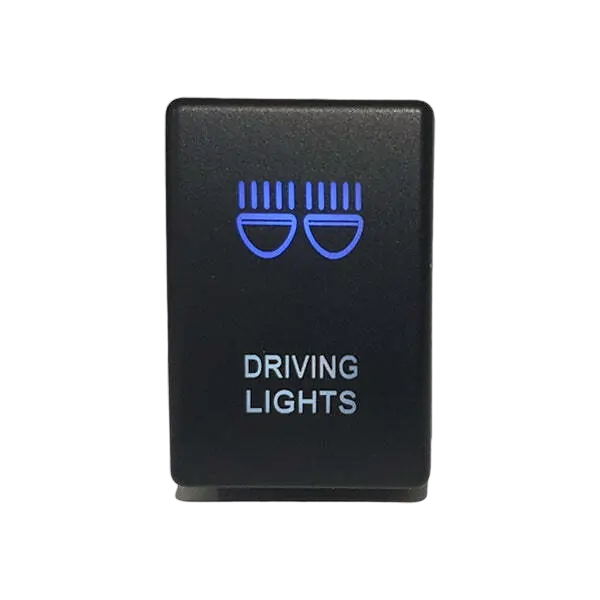

Lightforce Driving Light Switch To Suit Isuzu/Mazda 3Rd Gen
