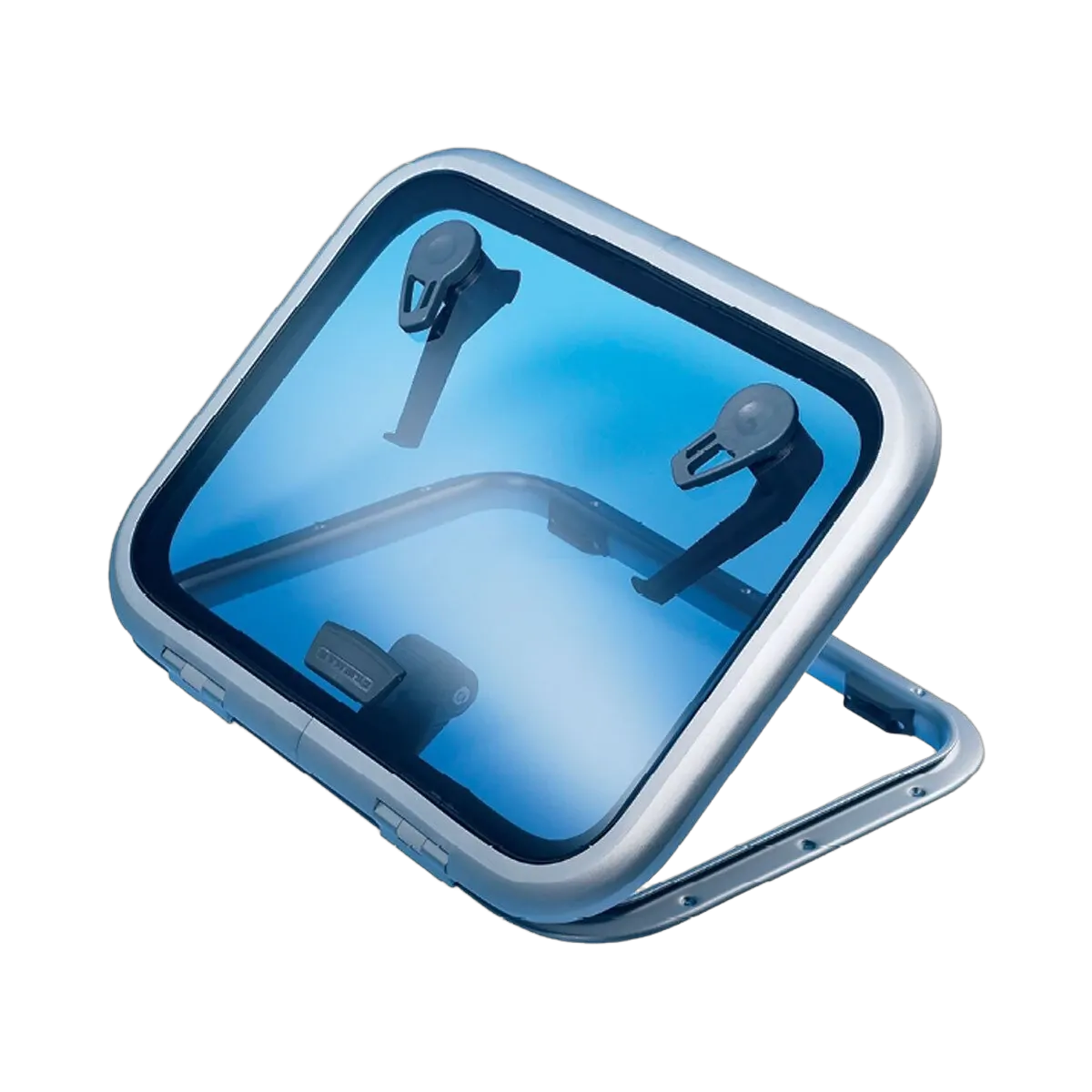

Manufactured to exacting standards, the Lewmar® Medium Profile range provides a smooth profile with modern lines, similar to the Low Profile range. The hatch has been designed with deeper frame sections for greater strength and thicker acrylic for durability. The Medium Profile hatches include Lewmar’s unique sealing system which allows for easy acrylic replacement if ever required. Ideal as a foredeck hatch on larger cruisers and offshore yachts.
Features
• Outside handles
• Ability to lock the hatch fully closed or in the vented position
• Ability to quickly and easily replace acrylic lens
• Friction hinges hold the lid open in any position up to 95° (optional extra not included as standard)
• Anodised aluminium frame for corrosion resistance
• Curved upper frame for strength as well as modern styling
• CE approved to Area 2A
| BLA Code Friction Hinge | BLA Code with Stay | BLA Code Frosted Lens | Size | Outside XxY LxW mm | Cut Out X1xY1 LxW mm | Radii R mm | Radii R1 mm | Height Z mm | Acrylic mm | Internal Trim Kit & Insect Screen | Internal Trim Kit Colour | Insect Screen Only to Suit |
|---|
|
BLA Code Friction Hinge |
BLA Code with Stay |
BLA Code Frosted Lens |
Size |
Outside XxY LxW mm |
Cut Out X1xY1 LxW mm |
Radii R mm |
Radii R1 mm |
Height Z mm |
Acrylic mm |
Internal Trim Kit & Insect Screen |
Internal Trim Kit Colour |
Insect Screen Only to Suit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 170094 | - | - | 30 | 398 x 528 | 327 x 457 | 78 | 42.5 | 32 | 12 | 170214 | White | 170250 |
| 170096 | - | - | 40 | 492 x 492 | 421 x 421 | 78 | 42.5 | 32 | 12 | 170216 | White | 170252 |
| 170098 | - | 170028 | 44 | 513 x 513 | 442 x 442 | 78 | 42.5 | 32 | 12 | 170220 | White | 170256 |
| 170100 | - | - | 50 | 448 x 578 | 377 x 507 | 78 | 42.5 | 32 | 12 | 170222 | White | 170258 |
| 170102 | - | - | 54 | 463 x 578 | 392 x 507 | 78 | 42.5 | 32 | 12 | 170226 | White | 170262 |
| 170104 | - | 170031 | 60 | 578 x 578 | 507 x 507 | 78 | 42.5 | 32 | 12 | 170228 | White | 170264 |
| 170106 | 170108 | 170033 | 70 | 698 x 698 | 627 x 627 | 78 | 42.5 | 32 | 12 | 170232 | White | 170268 |
| 170110 | - | - | 77 | 770 x 770 | 699 x 699 | 78 | 42.5 | 32 | 12 | - | - | - |
N.B. Insect screens can only be used with trim kits.
| SKU | LHMPFH |
|---|---|
| Brand | LEWMAR |
| Shipping Weight | 2.0000kg |

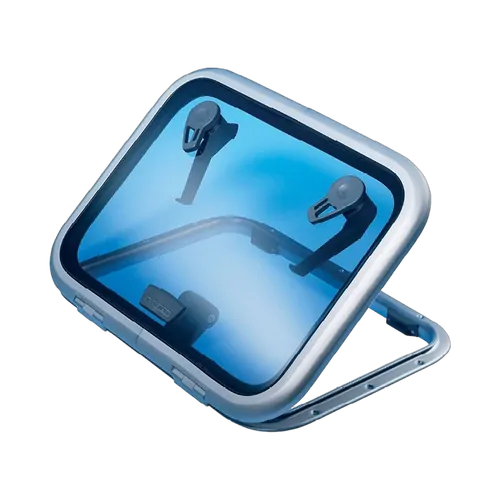

Lewmar Hatch - Medium Profile -Friction Hinge Size #30 Silver 327mm x 547mm
