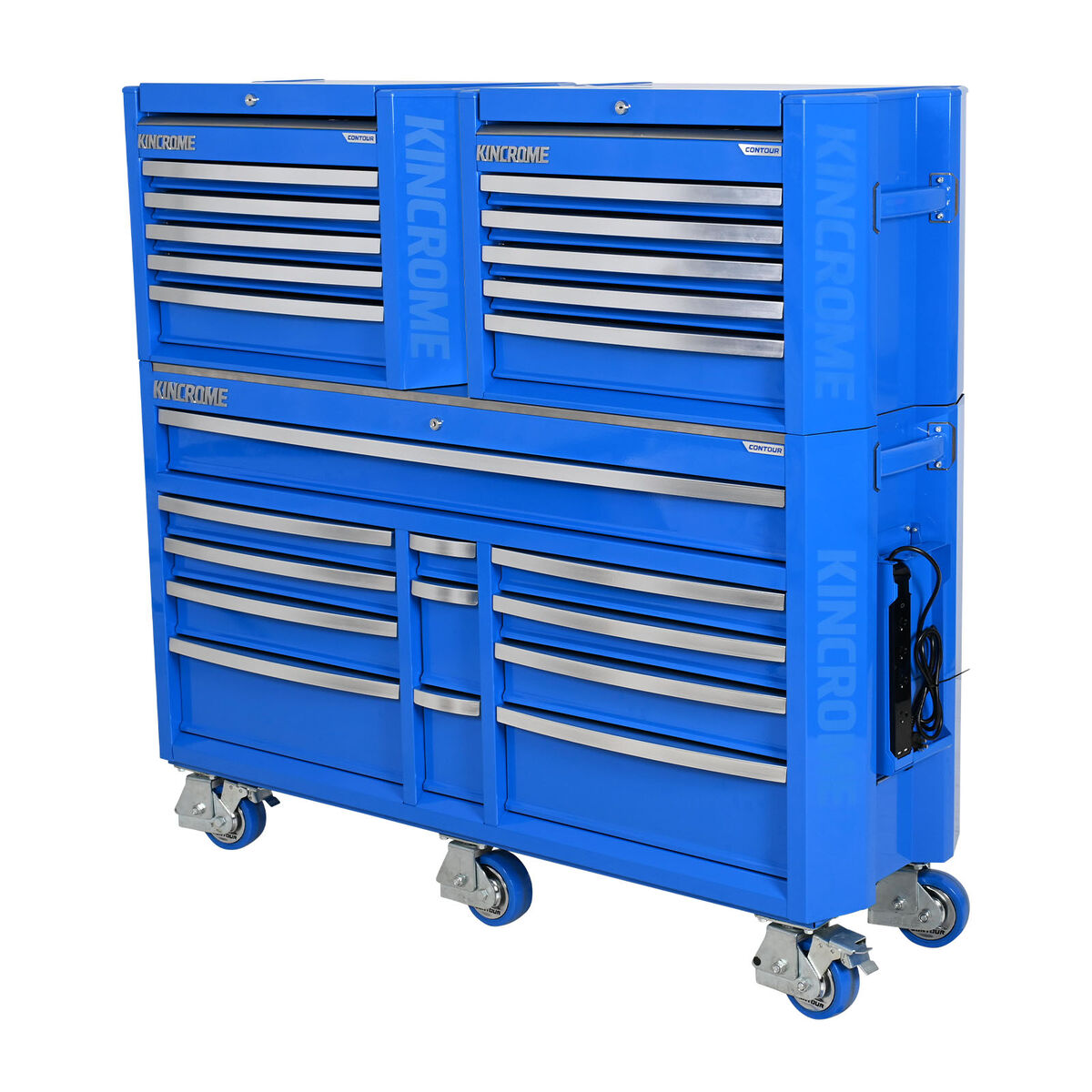

Kincrome CONTOUR Workshop Tool Kit 1141 Piece 22 Drawer (60")

Description
Specifications

Description

The CONTOUR® range of Carts, Chests, Hutches, Trolleys & Tool Kits is our premium level range, developed for those looking for trade quality tools and features.

CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer.

Designed in Australia by KINCROME, the CONTOUR® range features a sleek contoured design, available in either black or blue with a UV protected powder coated finish. CONTOUR® storage comes standard with a range of premium features, including; the chamfered screen printed Kincrome side panels, ’Automatic Drawer Retention System (ADRS)’ locking system, heavy duty steel side handles, side folding work trays (including magnetic power boards), stainless steel worktops & heavy duty swivel castors for easy manoeuvrability.

CONTOUR® offers a complete range of carts, chests, hutches, trolleys & kits to suit every need, from 10” mini, 29” standard, 42” extra wide & 60” super wide. CONTOUR® is fully modular & customisable, offering the flexibility to build your own premium workshop, the way you want.

Specifications

Brand	KINCROME
12 Month Protection Plan	Yes
Automatic Drawer Retention System (ADRS)	Yes
Bench Load Rating	300kg
Castor Size	5" x 2" (125mm x 50mm)
Castor Type	Heavy Duty PU Suspension Swivel Castors (2 x Locking)
Deep Sockets	Yes
Drawer Load Rating	40kg (per Drawer), 70kg (Top Wide Drawer)
Drawer Measurements	121 x 397 x 56mm (Trolley - Small Shallow) 121 x 397 x 166mm (Trolley - Small Extra Deep) 1327 x 397 x 90mm (Trolley - Extra Wide) 544 x 397 x 96mm (Chest - Large Deep) 544 x 397 x 41mm (Chest - Large Shallow) 544 x 397 x 85mm (Trolley - Large Deep) 544 x 397 x 56mm (Trolley - Large Shallow) 544 x 397 x 166mm (Trolley - Large Extra Deep)
Drawer Slides Type	45mm Ball Bearing
Drive	1/4", 3/8", 1/2", 3/4"
Extra Depth	Yes
Finish	UV Stabilised Powder Coat
Folding Trays	Yes
Gear Spanners	Yes
Impact Sockets Accessories	Yes
Jumbo Spanners	Yes
Lid Support	Gas Struts
Lockable	Yes
LOK-ON Impact Sockets Accessories	Yes
LOK-ON Sockets Accessories	Yes
Measurement System	Metric & Imperial
Measurements	1515 x 470 x 1405mm
Number Of Drawer Liners	22
Number Of Drawers	22
Number Of EVA Trays	18
Pieces	1141
Power Board	Yes
Range	CONTOUR
Recessed Handles	Yes
Shelf Load Rating	15kg (Per Shelf)
Tool Chest Measurements	730 x 470 x 486mm
Tool Chest Weight	40kg
Tool Trolley Weight	145kg
Warranty	Kincrome Quality
Work Surface	Stainless Steel
Colour	Blue
Material	Various Materials
Size	60"
Length (mm)	1515
Width (mm)	470
Height (mm)	1405
Weight (kg)	349

Features

Dual Steel Side Handles
"ADRS" Automatic Drawer Retention System
45mm Ball Bearing Drawer Slides
Colour Coded Twin Gas Struts on Lid
Internal Rear Drawer Locking System
Stainless Steel Work Surface
Colour Coded Heavy Duty Swivel Suspension Castors (2 x Lockable)
Dual Side Folding Shelves with EVA Liners & Magnetic Power Board 240V (4 Outlets & 2 USB)
Extra Deep Design
5mm EVA Foam Drawer Liners
Full Length Contoured Aluminium Drawer Grips
UV Stabilised Powder Coating

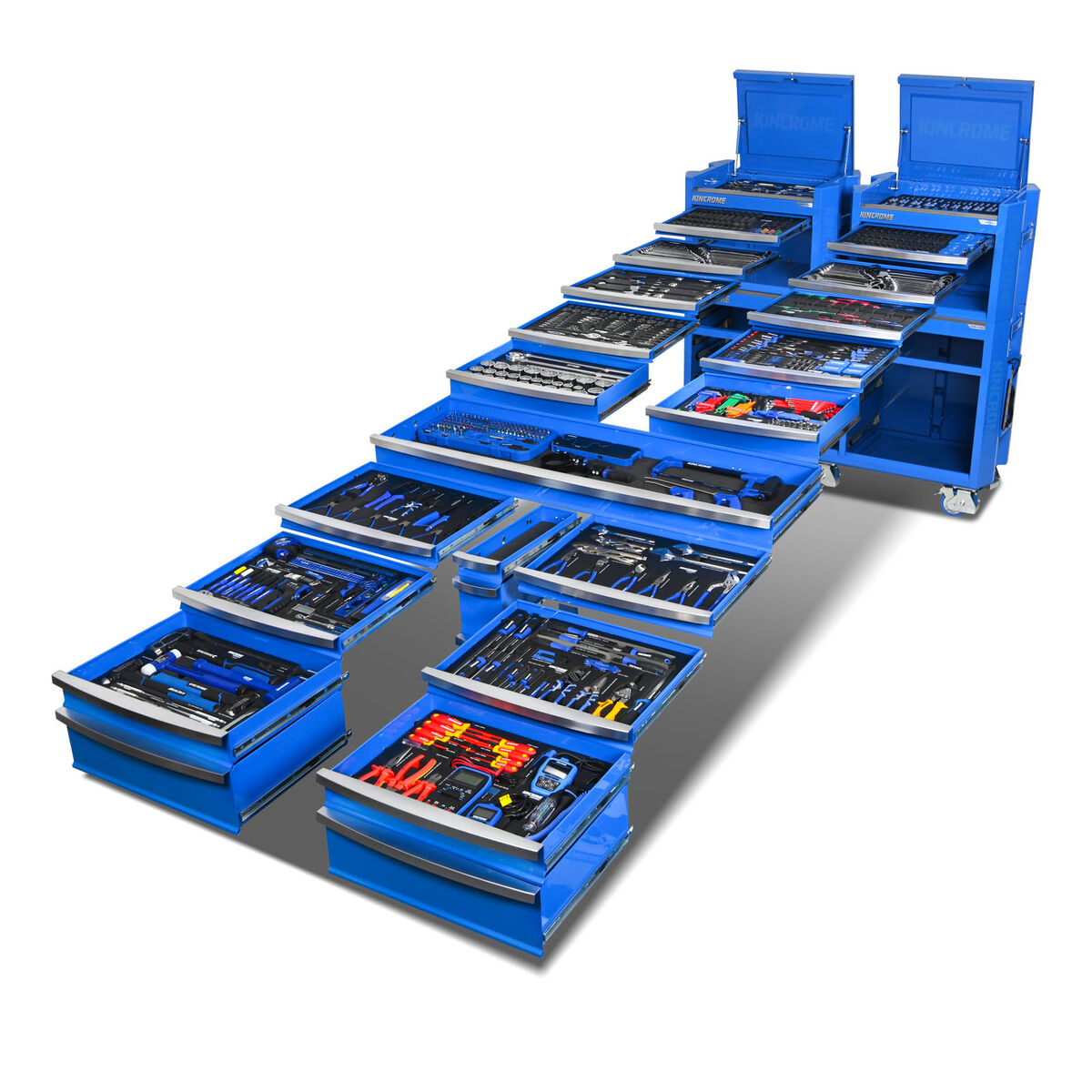

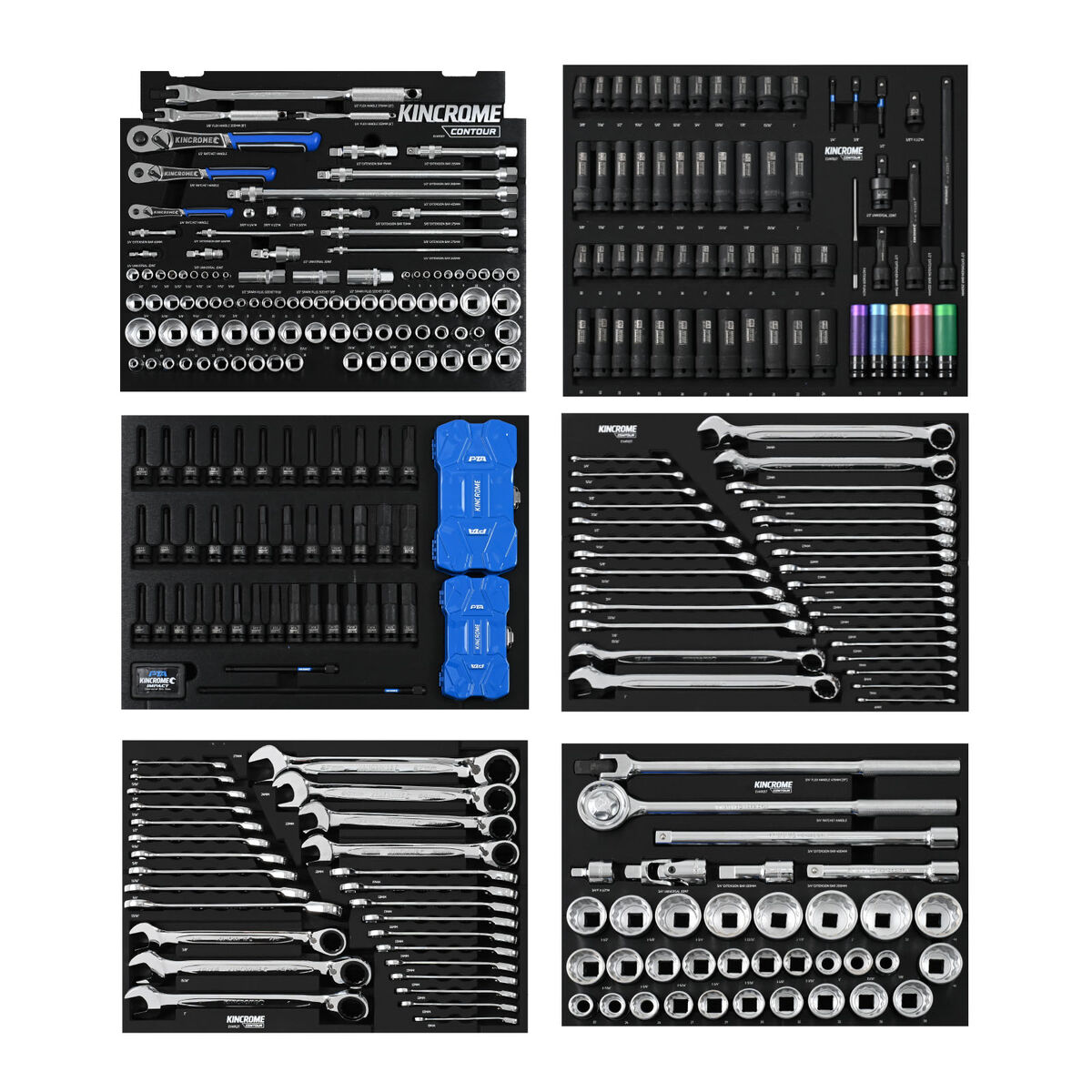

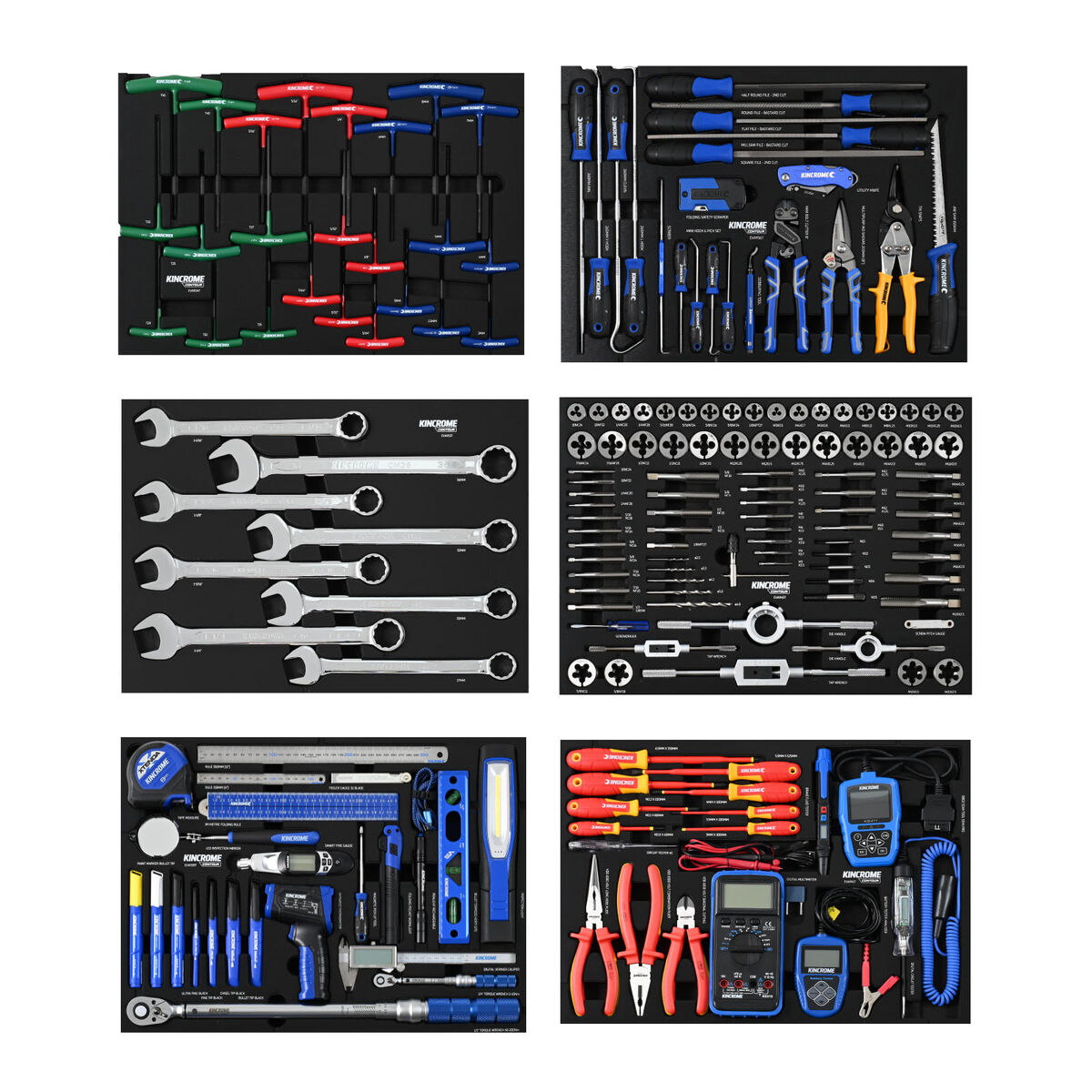

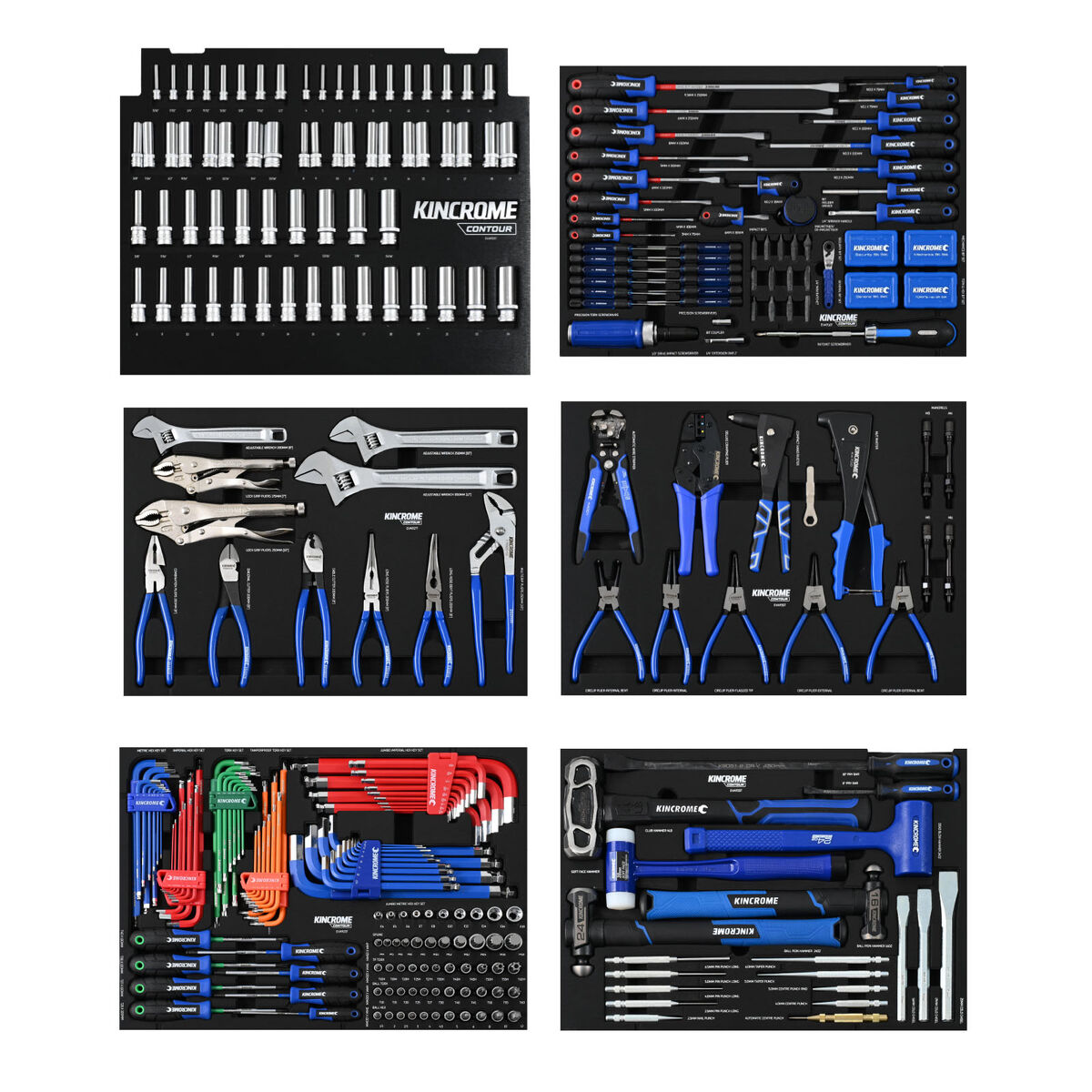

Product Contents

Top Tray 1

EVA900T - CONTOUR® 100 Piece LOK-ON™ Sockets & Accessories EVA Tray
Metric Sockets

10 LOK-ON™ Sockets 1/4" Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm
14 LOK-ON™ Sockets 3/8" Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21mm
20 LOK-ON™ Sockets 1/2" Square Drive: 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30, 32mm

Imperial Sockets

9 LOK-ON™ Sockets 1/4" Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"
7 LOK-ON™ Sockets 3/8" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
15 LOK-ON™ Sockets 1/2" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.3/16, 1.1/4"

Socket Accessories

6 1/4" Drive Socket Accessories:

LOK-ON™ Reversible Ratchet Handle
LOK-ON™ Flex Handle 150mm (6")
LOK-ON™ Universal Joint
LOK-ON™ Extension Bar 65mm
LOK-ON™ Extension Bar 165mm
LOK-ON™ Extension Bar 265mm

8 3/8" Drive Socket Accessories:

LOK-ON™ Reversible Ratchet Handle
LOK-ON™ Flex Handle 200mm (8")
LOK-ON™ Universal Joint
LOK-ON™ Extension Bar 70mm
LOK-ON™ Extension Bar 175mm
LOK-ON™ Extension Bar 275mm
LOK-ON™ Socket Adaptor 3/8" Female x 1/4" Male
LOK-ON™ Socket Adaptor 3/8" Female x 1/2" Male

11 1/2" Drive Socket Accessories:

LOK-ON™ Reversible Ratchet Handle
LOK-ON™ Flex Handle 375mm (15")
LOK-ON™ Universal Joint
LOK-ON™ Extension Bar 95mm
LOK-ON™ Extension Bar 155mm
LOK-ON™ Extension Bar 280mm
LOK-ON™ Extension Bar 405mm
LOK-ON™ Socket Adaptor 1/2" Female x 3/8" Male
Spark Plug Socket 14mm (9/16")
Spark Plug Socket 16mm (5/8")
Spark Plug Socket 21mm (13/16")

Top Tray 2

EVA903T - CONTOUR® 64 Piece LOK-ON™ Deep Sockets EVA Tray

Metric Sockets

11 LOK-ON™ Deep Sockets 1/4" Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14mm
12 LOK-ON™ Deep Sockets 3/8" Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm
15 LOK-ON™ Deep Sockets 1/2" Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

Imperial Sockets

8 LOK-ON™ Deep Sockets 1/4" Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 3/8, 7/16, 1/2"
8 LOK-ON™ Deep Sockets 3/8" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16"
10 LOK-ON™ Deep Sockets 1/2" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16"

Drawer 1

EVA906T - CONTOUR® 60 Piece LOK-ON™ Impact Sockets & Accessories EVA Tray
Metric Sockets

12 LOK-ON™ Impact Sockets 1/2" Square Drive: 10, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm
12 LOK-ON™ Deep Impact Sockets 1/2" Square Drive: 10, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm
5 Super Impact Wheel Nut Sockets 1/2" Square Drive: 15, 17, 19, 21, 22mm

Imperial Sockets

11 LOK-ON™ Impact Sockets 1/2" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1"
11 LOK-ON™ Deep Impact Sockets 1/2" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1"

9 Socket Accessories:

Impact Socket Adaptor 3/8" Female x 1/2" Male
Impact Universal Joint 1/2" Drive
Impact Extension Bar 1/2" x 75mm (3")
Impact Extension Bar 1/2" x 150mm (6")
Impact Extension Bar 1/2" x 250mm (10")
LOK-ON™ Impact Fastener Punch
Impact Socket Driver 1/4" Drive x 65mm
Impact Socket Driver 3/8" Drive x 65mm
Impact Socket Driver 1/2" Drive x 65mm

Drawer 2

EVA907T - CONTOUR® 148 Piece Impact Sockets & PTA EVA Tray

Metric Sockets

15 Hex Impact Sockets 1/2" Square Drive: 5, 6, 7, 8, 9, 10, 12, 14, 15, 16, 17, 18, 19, 20, 21mm

Imperial Sockets

12 Hex Impact Sockets 1/2" Square Drive: 7/32, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 11/16, 13/16"

TORX® Sockets

12 TORX® Impact Sockets 1/2" Square Drive: T20, T25, T27, T30, T40, T45, T47, T50, T55, T60, T70, T80

46 Piece Impact Bit Set

25mm Bits: PH1, PH3, SQ1, SQ3, BL4.0, BL6.5, T10, T15, T20, T25, T27, T30, T40, HEX2, HEX3, HEX4, HEX5, HEX6
50mm Bits: PH2 x 6, HEX5 x 3, SQ2 x 3, T20 x 3, T25 x 3
65mm Nutsetters: 1/4, 5/16 x 2, 3/8, 7/16"
75mm Socket Drivers: 1/4, 3/8, 1/2"
Quick Release Coupler 75mm
Extreme Magnetic Bit Coupler 75mm

28 Piece Impact Bit Set

25mm Bits: PH1, PH3, T27, T30, HEX3, HEX4, HEX5
50mm Bits: PH2 x 3, SQ2, SQ3, HEX5, HEX6
75mm Bits: PH2 x 2, SQ2 x 2, HEX5 x 2
100mm Bits: PH2 x 3, SQ2, HEX5, T20, T25
Extreme Magnetic Bit Coupler 75mm

33 Piece PTA Impact General Purpose Bit Set:

Blade: 4.5, 6.5mm
Phillips: #1, 1, 2, 2, 2, 2, 3, 3
Hex: 2, 2.5, 3, 4, 4, 5, 5, 6mm
Square: #1, 2, 2, 2, 3
TORX®: T10, T15, T20, T20, T25, T25, T27, T30, T40
Magnetic C-clip Coupler

Quick Release Bit Coupler 150mm (6")
Quick Release Bit Coupler 300mm (12")

Drawer 7

EVA940T - CONTOUR® 87 Piece Tap & Die EVA Tray

19 Metric Dies:

M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8x1.25, M10x1.0, M10x1.25, M10x1.5, M12x1.25, M12x1.5, M12x1.75, M14x1.25, M14x1.5,
M14x2.0, M16x1.5, M16x2.0, M18x1.5, M20x2.5

16 Imperial Dies:

10-NC24, 10-NF32, 1/4-NC20, 1/4-NF28, 5/16-NC18, 5/16-NF24, 3/8-NC16, 3/8-NF24, 7/16-NC14, 7/16-NF20, 1/2-NC12, 1/2-NC13, 1/2-NF20,
5/8-NC11, 5/8-NF18, 1/8-NPT27

19 Metric Taps:

M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8 x 1.25, M10x1.0, M10x1.25, M10x1.5, M12x1.25, M12x1.5, M12x1.75, M14x1.25, M14x1.5,
M14x2.0, M16x1.5, M16x2.0, M18x1.5, M20x2.5

16 Imperial Taps:

10-NC24, 10-NF32, 1/4-NC20, 1/4-NF28, 5/16-NF24, 5/16-NC18, 3/8-NC16, 3/8-NF24, 7/16-NC14, 7/16-NF20, 1/2-NC13, 1/2-NF20, 5/8-NC11,
5/8-NF18, 1/2-12BSW, 1/8-NPT27

5 Drill Bits:

2.5, 3.3, 4.2, 5.0, 6.8mm

5 Screw Extractors:

No.1, 2, 3, 4, 5

Die Handle 1"
Die Handle 1.5”
Adjustable Tap Wrench: M3-M12 (1/16"-1/2")
Adjustable Tap Wrench: M6-M20 (1/4"-3/4")
T-Type Tap Wrench 1/4"
Screw Pitch Gauge
Screwdriver

Drawer 8

EVA916T - CONTOUR® 187 Piece TorqueMaster® Screwdrivers & Fastening EVA Tray

9 TorqueMaster® Blade Screwdrivers:

3mm x 75mm, 4mm x 100mm, 5mm x 100mm, 5mm x 150mm, 6mm x 38mm, 6mm x 100mm, 6mm x 250mm, 8mm x 150mm, 9.5mm x 250mm

6 TorqueMaster® Phillips Screwdrivers:

No.0 x 75mm, No.1 x 75mm, No.2 x 38mm, No.2 x 100mm, No.2 x 250mm, No.3 x 150mm

33 Piece General Bit & Holder Set:

1/4"(F) x 1/4"(M) Magnetic Bit Holder
5 Phillips Bits: #0, 1, 2, 2, 3
7 Blade Bits: 3, 4, 4.5, 5, 5.5, 6, 6.5mm
3 Square Bits: #1, 2, 3
5 Pozidrive Bits: #0, 1, 2, 2, 3
7 TORX® Bits: T10, T15, T20, T25, T27, T30, T40
5 Hex Bits: 2, 3, 4, 5, 6mm

33 Piece Security Bit & Holder Set:

1/4"(F) x 1/4"(M) Magnetic Bit Holder
3 MORTORQ® Bits: #6, 8, 10
4 Spanner Bits: 4, 6, 8, 10mm
4 Tri-wing Bits: 1, 2, 3, 4
6 Metric Hexagonal Security Bits: 2, 2.5, 3, 4, 5, 6mm
6 Imperial Hexagonal Security Bits: 5/32, 9/64, 1/8, 7/64, 3/32, 5/64"
9 Tamperproof TORX® Bits: T8, T10, T15, T20, T25, T27, T30, T35, T40

33 Piece Mechanics Bit & Holder Set:

1/4"(F) x 1/4"(M) Magnetic Bit Holder
4 Phillips Bits: #0, 1, 2, 3
5 Blade Bits: 4, 4.5, 5, 5.5, 6mm
5 TORX® Plus Bits: T15, T20, T25, T27, T30
4 Pozidrive Bits: #0, 1, 2, 3
7 TORX® Bits: T10, T15, T20, T25, T27, T30, T40
7 Metric Hex Bits: 2, 2.5, 3, 4, 5, 6, 7mm
3 Spline Bits: M5, 6, 8

33 Piece TORX® / Hex Bit & Holder Set:

1/4"(F) x 1/4"(M) Magnetic Bit Holder
9 TORX® Bits: T8, T10, T15, T20, T25, T27, T30, T40, T45
9 Tamperproof TORX® Bits: T8, T10, T15, T20, T25, T27, T30, T40, T45
8 Metric Hex Bits: 2, 2.5, 3, 4, 4.5, 5, 6, 7mm
6 Imperial Hex Bits: 5/32, 9/64, 1/8, 7/64, 3/32, 5/64"

14 Piece Impact Screwdriver Set:

Impact Screwdriver Handle
Blade Bits: 5, 6, 8, 10, 12mm
Phillips Bits: #1, 2, 3, 4
Metric Hex Bits: 4, 5, 6, 8mm

9 Piece Ratcheting Screwdriver Set:

Ratcheting Screwdriver Handle (with internal bit storage)
Blade: 4, 6mm
Phillips: No.1, 2
Metric Hex: 3, 5mm
2 Interchangeable Bit Drivers: 50, 153mm

6 Piece Precision Screwdriver Set:

Blade: 1.4, 2.0, 2.4, 3.0mm
Phillips: No.0, 1

6 Piece TORX® Precision Screwdriver Set:

T5, T6, T7, T8, T9, T10

TorqueMaster® Bit Holder Driver 6mm Hex Drive
TorqueMaster® Bit Holder Coupler 1/4" Drive x 1/4" Hex
TorqueMaster® Spinner Handle 1/4" Drive
TorqueMaster® Magnetizer/De-Magnetizer
Mini Bit Ratchet 1/4"

Drawer 9

EVA905T - CONTOUR® 36 Piece Sockets & Accessories EVA Tray

Metric Sockets

13 Sockets 3/4" Square Drive: 22, 24, 26, 27, 29, 30, 32, 35, 36, 38, 41, 46, 50mm

Imperial Sockets

16 Sockets 3/4" Square Drive: 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.3/16, 1.1/4, 1.5/16, 1.3/8, 1.7/16, 1.1/2, 1.5/8, 1.3/4, 1.13/16, 1.7/8, 2"

Socket Accessories

7 3/4" Square Drive Socket Accessories:

Reversible Ratchet Handle
Flex Handle 475mm (19")
Universal Joint
Extension Bar 100m (4")
Extension Bar 200mm (8")
Extension Bar 400mm (16")
Socket Adaptor 3/4" Female x 1/2" Male

Drawer 10

EVA923T - CONTOUR® 124 Piece Hex & TORX® Fastening EVA Tray

4 TorqueMaster® Hex Screwdrivers:

3mm x 100mm, 4mm x 100mm, 5mm x 100mm, 6mm x 125mm

4 TorqueMaster® TORX® Screwdrivers:

T25 x 100mm, T27 x 100mm, T30 x 100mm, T40 x 100mm

11 Piece Ball-End Hex Socket Set:

1/4" Square Drive: H1.5, H2, H2.5, H3, H4, H4.5
3/8" Square Drive: H5, H6, H8, H10, H12

11 Piece Ball-End TORX® Socket Set:

1/4" Square Drive: T10, T15, T20, T25, T27, T30
3/8" Square Drive: T40, T45, T50, T55, T60

11 Piece Tamperproof TORX® Socket Set:

1/4" Square Drive: T10H, T15H, T20H, T25H, T27H, T30H
3/8" Square Drive: T40H, T45H, T50H, T55H, T60H

10 Piece E-TORX® Socket Set:

1/4" Square Drive: M4, M5, M6, M8
3/8" Square Drive: M8, M10, M12
1/2" Square Drive: M12, M14, M16, M18

11 Piece Spline Socket Set:

1/4" Square Drive: E4, E5, E6, E7, E8
3/8" Square Drive: E10, E12, E14, E16, E18

9 Piece Metric Ball Point Long Series Hex Key Set:

1.5 x 14 x 90mm, 2.0 x 16 x 100mm, 2.5 x 18 x 112mm, 3.0 x 20 x 126mm, 4.0 x 25 x 140mm, 5.0 x 28 x 160mm, 6.0 x 32 x 180mm, 8.0 x 36 x 200mm,
10.0 x 40 x 224mm

9 Piece Imperial Ball Point Long Series Hex Key Set:

1/16” x 14 x 90mm, 5/64” x 16 x 100mm, 3/32” x 18 x 112mm, 1/8” x 20 x 126mm, 5/32” x 25 x 140mm, 3/16” x 28 x 160mm, 1/4” x 32 x 180mm,
5/16” x 36 x 200mm, 3/8” x 40 x 224mm

9 Piece TORX® Long Series Key Set:

T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm,
T45 x 44 x 210mm, T50 x 50 x 235mm

9 Piece Tamperproof TORX® Long Series Key Set:

T10H x 14 x 90mm, T15H x 16 x 100mm, T20H x 18 x 112mm, T25H x 20 x 126mm, T27H x 25 x 140mm, T30H x 28 x 160mm, T40H x 32 x 180mm,
T45H x 36 x 200mm, T50H x 40 x 224mm

13 Piece Metric Ball Point Jumbo Key Set:

2, 2.5, 3, 4, 5, 6, 7, 8, 10, 12, 14, 17, 19mm

13 Piece Imperial Ball Point Jumbo Hex Key Set:

5/64, 3/32, 1/8, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8, 1/2, 9/16, 5/8, 3/4"

Drawer 14

EVA939T - CONTOUR® 23 Piece Measuring & Lighting EVA Tray

4 Piece Permanent Marker Starter Pack Black

Ultra Fine Tip
Fine Tip
Bullet Tip
Chisel Tip

3 Piece Paint Marker Pack Assorted Colours

Bullet Tip - Black
Bullet Tip - Yellow
Bullet Tip - White

XTENDA Tape Measure 8m
Infrared Thermometer
Digital Vernier 150mm (6")
LED Inspection Light
LED Compact Folding Inspection Light
Pen Light LED Torch
Folding Ruler Metric 1m
TorqueMaster® Magnetic Pick-up Tool Telescopic
LED Inspection Mirror
Digital Smart Tyre Gauge
Feeler Gauge 32 Blade 105mm (4")
Billet Torpedo Level 255mm (10")
Stainless Steel Metric Ruler 150mm (6")
Stainless Steel Metric Ruler 300mm
1/4" Drive Torque Wrench 2-10Nm
1/2" Drive Torque Wrench 40-200Nm

Drawer 15

EVA936T - CONTOUR® 21 Piece Cut, Hook & Scrape EVA Tray

5 Piece File Set:

Flat File Bastard Cut 250mm (10")
Half Round File Second Cut 250mm (10")
Round File Bastard Cut 250mm (10")
Millsaw File Bastard Cut 250mm (10")
Square File Second Cut 250mm (10")

4 Piece Large Hook & Pick Set:

AWL 260mm
Pin Remover 260mm
L Hook 260mm
V Hook 260mm

4 Piece Mini Hook & Pick Set:

AWL 129mm
Pin Remover 115mm
L Hook 115mm
V Hook 125mm

Mini Bolt Cutters 200mm (8”)
Folding Utility Knife
Scriber 235mm
Multipurpose Industrial Scissors 200mm (8")
Folding Safety Scraper
Jab Saw 150mm (6")
Deburring Tool with Blade
Tin Snips Straight Cut 260mm (10")

Drawer 16

EVA933T - CONTOUR® 20 Piece Striking & Prying EVA Tray

2 Piece Pry Bar Set:

Extended Bent Pry Bar 450mm (18”)
Bent Pry Bar 200mm (8”)

Graphite Ball Pein Hammer 16oz (454g)
Graphite Ball Pein Hammer 24oz (680g)
IRONKORE™ Club Hammer 4lb (1.8kg)
Dead Blow Hammer 24oz (680g)
Soft Face Hammer 38mm Polythene/Nylon
Cold Chisel 16mm
Cold Chisel 19mm
Cold Chisel 25mm
Pin Punch Long 2.5mm
Pin Punch Long 4mm
Pin Punch Long 5mm
Pin Punch Long 6.5mm
Centre Punch 4mm
Centre Punch Round 5mm
Nail Punch 2.5mm
Taper Punch 3mm
Taper Punch 6mm
Automatic Centre Punch 125mm (5")

Specifications

SKU	K1966
Barcode #	9312753098762
Brand	Kincrome
Shipping Weight	349.0000kg
Shipping Width	0.470m
Shipping Height	1.405m
Shipping Length	1.515m

Kincrome CONTOUR Workshop Tool Kit 1141 Piece 22 Drawer (60")

SKU: K1966

$21,520.40

REG

$13,600.00 SALE

Unlock Mates'Rate and Save. Login or Join Free

SAVE $7,920.40

REG $21,520.40

Earn 136,000 GEAR'd Points

SALE ENDS

Ships in 7 Days (Christmas delays possible)

$21,520.40

REG

$13,600.00 SALE

Description

The CONTOUR® range of Carts, Chests, Hutches, Trolleys & Tool Kits is our premium level range, developed for those looking for trade quality tools and features.

CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer.

Specifications

Brand	KINCROME
12 Month Protection Plan	Yes
Automatic Drawer Retention System (ADRS)	Yes
Bench Load Rating	300kg
Castor Size	5" x 2" (125mm x 50mm)
Castor Type	Heavy Duty PU Suspension Swivel Castors (2 x Locking)
Deep Sockets	Yes
Drawer Load Rating	40kg (per Drawer), 70kg (Top Wide Drawer)
Drawer Measurements	121 x 397 x 56mm (Trolley - Small Shallow) 121 x 397 x 166mm (Trolley - Small Extra Deep) 1327 x 397 x 90mm (Trolley - Extra Wide) 544 x 397 x 96mm (Chest - Large Deep) 544 x 397 x 41mm (Chest - Large Shallow) 544 x 397 x 85mm (Trolley - Large Deep) 544 x 397 x 56mm (Trolley - Large Shallow) 544 x 397 x 166mm (Trolley - Large Extra Deep)
Drawer Slides Type	45mm Ball Bearing
Drive	1/4", 3/8", 1/2", 3/4"
Extra Depth	Yes
Finish	UV Stabilised Powder Coat
Folding Trays	Yes
Gear Spanners	Yes
Impact Sockets Accessories	Yes
Jumbo Spanners	Yes
Lid Support	Gas Struts
Lockable	Yes
LOK-ON Impact Sockets Accessories	Yes
LOK-ON Sockets Accessories	Yes
Measurement System	Metric & Imperial
Measurements	1515 x 470 x 1405mm
Number Of Drawer Liners	22
Number Of Drawers	22
Number Of EVA Trays	18
Pieces	1141
Power Board	Yes
Range	CONTOUR
Recessed Handles	Yes
Shelf Load Rating	15kg (Per Shelf)
Tool Chest Measurements	730 x 470 x 486mm
Tool Chest Weight	40kg
Tool Trolley Weight	145kg
Warranty	Kincrome Quality
Work Surface	Stainless Steel
Colour	Blue
Material	Various Materials
Size	60"
Length (mm)	1515
Width (mm)	470
Height (mm)	1405
Weight (kg)	349

Features

Dual Steel Side Handles
"ADRS" Automatic Drawer Retention System
45mm Ball Bearing Drawer Slides
Colour Coded Twin Gas Struts on Lid
Internal Rear Drawer Locking System
Stainless Steel Work Surface
Colour Coded Heavy Duty Swivel Suspension Castors (2 x Lockable)
Dual Side Folding Shelves with EVA Liners & Magnetic Power Board 240V (4 Outlets & 2 USB)
Extra Deep Design
5mm EVA Foam Drawer Liners
Full Length Contoured Aluminium Drawer Grips
UV Stabilised Powder Coating

Product Contents

Top Tray 1

EVA900T - CONTOUR® 100 Piece LOK-ON™ Sockets & Accessories EVA Tray
Metric Sockets

10 LOK-ON™ Sockets 1/4" Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm
14 LOK-ON™ Sockets 3/8" Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21mm
20 LOK-ON™ Sockets 1/2" Square Drive: 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30, 32mm

Imperial Sockets

9 LOK-ON™ Sockets 1/4" Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"
7 LOK-ON™ Sockets 3/8" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
15 LOK-ON™ Sockets 1/2" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.3/16, 1.1/4"

Socket Accessories

6 1/4" Drive Socket Accessories:

LOK-ON™ Reversible Ratchet Handle
LOK-ON™ Flex Handle 150mm (6")
LOK-ON™ Universal Joint
LOK-ON™ Extension Bar 65mm
LOK-ON™ Extension Bar 165mm
LOK-ON™ Extension Bar 265mm

8 3/8" Drive Socket Accessories:

LOK-ON™ Reversible Ratchet Handle
LOK-ON™ Flex Handle 200mm (8")
LOK-ON™ Universal Joint
LOK-ON™ Extension Bar 70mm
LOK-ON™ Extension Bar 175mm
LOK-ON™ Extension Bar 275mm
LOK-ON™ Socket Adaptor 3/8" Female x 1/4" Male
LOK-ON™ Socket Adaptor 3/8" Female x 1/2" Male

11 1/2" Drive Socket Accessories:

LOK-ON™ Reversible Ratchet Handle
LOK-ON™ Flex Handle 375mm (15")
LOK-ON™ Universal Joint
LOK-ON™ Extension Bar 95mm
LOK-ON™ Extension Bar 155mm
LOK-ON™ Extension Bar 280mm
LOK-ON™ Extension Bar 405mm
LOK-ON™ Socket Adaptor 1/2" Female x 3/8" Male
Spark Plug Socket 14mm (9/16")
Spark Plug Socket 16mm (5/8")
Spark Plug Socket 21mm (13/16")

Top Tray 2

EVA903T - CONTOUR® 64 Piece LOK-ON™ Deep Sockets EVA Tray

Metric Sockets

11 LOK-ON™ Deep Sockets 1/4" Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14mm
12 LOK-ON™ Deep Sockets 3/8" Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm
15 LOK-ON™ Deep Sockets 1/2" Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

Imperial Sockets

8 LOK-ON™ Deep Sockets 1/4" Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 3/8, 7/16, 1/2"
8 LOK-ON™ Deep Sockets 3/8" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16"
10 LOK-ON™ Deep Sockets 1/2" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16"

Drawer 1

EVA906T - CONTOUR® 60 Piece LOK-ON™ Impact Sockets & Accessories EVA Tray
Metric Sockets

12 LOK-ON™ Impact Sockets 1/2" Square Drive: 10, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm
12 LOK-ON™ Deep Impact Sockets 1/2" Square Drive: 10, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm
5 Super Impact Wheel Nut Sockets 1/2" Square Drive: 15, 17, 19, 21, 22mm

Imperial Sockets

11 LOK-ON™ Impact Sockets 1/2" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1"
11 LOK-ON™ Deep Impact Sockets 1/2" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1"

9 Socket Accessories:

Impact Socket Adaptor 3/8" Female x 1/2" Male
Impact Universal Joint 1/2" Drive
Impact Extension Bar 1/2" x 75mm (3")
Impact Extension Bar 1/2" x 150mm (6")
Impact Extension Bar 1/2" x 250mm (10")
LOK-ON™ Impact Fastener Punch
Impact Socket Driver 1/4" Drive x 65mm
Impact Socket Driver 3/8" Drive x 65mm
Impact Socket Driver 1/2" Drive x 65mm

Drawer 2

EVA907T - CONTOUR® 148 Piece Impact Sockets & PTA EVA Tray

Metric Sockets

15 Hex Impact Sockets 1/2" Square Drive: 5, 6, 7, 8, 9, 10, 12, 14, 15, 16, 17, 18, 19, 20, 21mm

Imperial Sockets

12 Hex Impact Sockets 1/2" Square Drive: 7/32, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 11/16, 13/16"

TORX® Sockets

12 TORX® Impact Sockets 1/2" Square Drive: T20, T25, T27, T30, T40, T45, T47, T50, T55, T60, T70, T80

46 Piece Impact Bit Set

25mm Bits: PH1, PH3, SQ1, SQ3, BL4.0, BL6.5, T10, T15, T20, T25, T27, T30, T40, HEX2, HEX3, HEX4, HEX5, HEX6
50mm Bits: PH2 x 6, HEX5 x 3, SQ2 x 3, T20 x 3, T25 x 3
65mm Nutsetters: 1/4, 5/16 x 2, 3/8, 7/16"
75mm Socket Drivers: 1/4, 3/8, 1/2"
Quick Release Coupler 75mm
Extreme Magnetic Bit Coupler 75mm

28 Piece Impact Bit Set

25mm Bits: PH1, PH3, T27, T30, HEX3, HEX4, HEX5
50mm Bits: PH2 x 3, SQ2, SQ3, HEX5, HEX6
75mm Bits: PH2 x 2, SQ2 x 2, HEX5 x 2
100mm Bits: PH2 x 3, SQ2, HEX5, T20, T25
Extreme Magnetic Bit Coupler 75mm

33 Piece PTA Impact General Purpose Bit Set:

Blade: 4.5, 6.5mm
Phillips: #1, 1, 2, 2, 2, 2, 3, 3
Hex: 2, 2.5, 3, 4, 4, 5, 5, 6mm
Square: #1, 2, 2, 2, 3
TORX®: T10, T15, T20, T20, T25, T25, T27, T30, T40
Magnetic C-clip Coupler

Quick Release Bit Coupler 150mm (6")
Quick Release Bit Coupler 300mm (12")

Drawer 7

EVA940T - CONTOUR® 87 Piece Tap & Die EVA Tray

19 Metric Dies:

M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8x1.25, M10x1.0, M10x1.25, M10x1.5, M12x1.25, M12x1.5, M12x1.75, M14x1.25, M14x1.5,
M14x2.0, M16x1.5, M16x2.0, M18x1.5, M20x2.5

16 Imperial Dies:

10-NC24, 10-NF32, 1/4-NC20, 1/4-NF28, 5/16-NC18, 5/16-NF24, 3/8-NC16, 3/8-NF24, 7/16-NC14, 7/16-NF20, 1/2-NC12, 1/2-NC13, 1/2-NF20,
5/8-NC11, 5/8-NF18, 1/8-NPT27

19 Metric Taps:

M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8 x 1.25, M10x1.0, M10x1.25, M10x1.5, M12x1.25, M12x1.5, M12x1.75, M14x1.25, M14x1.5,
M14x2.0, M16x1.5, M16x2.0, M18x1.5, M20x2.5

16 Imperial Taps:

10-NC24, 10-NF32, 1/4-NC20, 1/4-NF28, 5/16-NF24, 5/16-NC18, 3/8-NC16, 3/8-NF24, 7/16-NC14, 7/16-NF20, 1/2-NC13, 1/2-NF20, 5/8-NC11,
5/8-NF18, 1/2-12BSW, 1/8-NPT27

5 Drill Bits:

2.5, 3.3, 4.2, 5.0, 6.8mm

5 Screw Extractors:

No.1, 2, 3, 4, 5

Die Handle 1"
Die Handle 1.5”
Adjustable Tap Wrench: M3-M12 (1/16"-1/2")
Adjustable Tap Wrench: M6-M20 (1/4"-3/4")
T-Type Tap Wrench 1/4"
Screw Pitch Gauge
Screwdriver

Drawer 8

EVA916T - CONTOUR® 187 Piece TorqueMaster® Screwdrivers & Fastening EVA Tray

9 TorqueMaster® Blade Screwdrivers:

3mm x 75mm, 4mm x 100mm, 5mm x 100mm, 5mm x 150mm, 6mm x 38mm, 6mm x 100mm, 6mm x 250mm, 8mm x 150mm, 9.5mm x 250mm

6 TorqueMaster® Phillips Screwdrivers:

No.0 x 75mm, No.1 x 75mm, No.2 x 38mm, No.2 x 100mm, No.2 x 250mm, No.3 x 150mm

33 Piece General Bit & Holder Set:

1/4"(F) x 1/4"(M) Magnetic Bit Holder
5 Phillips Bits: #0, 1, 2, 2, 3
7 Blade Bits: 3, 4, 4.5, 5, 5.5, 6, 6.5mm
3 Square Bits: #1, 2, 3
5 Pozidrive Bits: #0, 1, 2, 2, 3
7 TORX® Bits: T10, T15, T20, T25, T27, T30, T40
5 Hex Bits: 2, 3, 4, 5, 6mm

33 Piece Security Bit & Holder Set:

1/4"(F) x 1/4"(M) Magnetic Bit Holder
3 MORTORQ® Bits: #6, 8, 10
4 Spanner Bits: 4, 6, 8, 10mm
4 Tri-wing Bits: 1, 2, 3, 4
6 Metric Hexagonal Security Bits: 2, 2.5, 3, 4, 5, 6mm
6 Imperial Hexagonal Security Bits: 5/32, 9/64, 1/8, 7/64, 3/32, 5/64"
9 Tamperproof TORX® Bits: T8, T10, T15, T20, T25, T27, T30, T35, T40

33 Piece Mechanics Bit & Holder Set:

1/4"(F) x 1/4"(M) Magnetic Bit Holder
4 Phillips Bits: #0, 1, 2, 3
5 Blade Bits: 4, 4.5, 5, 5.5, 6mm
5 TORX® Plus Bits: T15, T20, T25, T27, T30
4 Pozidrive Bits: #0, 1, 2, 3
7 TORX® Bits: T10, T15, T20, T25, T27, T30, T40
7 Metric Hex Bits: 2, 2.5, 3, 4, 5, 6, 7mm
3 Spline Bits: M5, 6, 8

33 Piece TORX® / Hex Bit & Holder Set:

1/4"(F) x 1/4"(M) Magnetic Bit Holder
9 TORX® Bits: T8, T10, T15, T20, T25, T27, T30, T40, T45
9 Tamperproof TORX® Bits: T8, T10, T15, T20, T25, T27, T30, T40, T45
8 Metric Hex Bits: 2, 2.5, 3, 4, 4.5, 5, 6, 7mm
6 Imperial Hex Bits: 5/32, 9/64, 1/8, 7/64, 3/32, 5/64"

14 Piece Impact Screwdriver Set:

Impact Screwdriver Handle
Blade Bits: 5, 6, 8, 10, 12mm
Phillips Bits: #1, 2, 3, 4
Metric Hex Bits: 4, 5, 6, 8mm

9 Piece Ratcheting Screwdriver Set:

Ratcheting Screwdriver Handle (with internal bit storage)
Blade: 4, 6mm
Phillips: No.1, 2
Metric Hex: 3, 5mm
2 Interchangeable Bit Drivers: 50, 153mm

6 Piece Precision Screwdriver Set:

Blade: 1.4, 2.0, 2.4, 3.0mm
Phillips: No.0, 1

6 Piece TORX® Precision Screwdriver Set:

T5, T6, T7, T8, T9, T10

TorqueMaster® Bit Holder Driver 6mm Hex Drive
TorqueMaster® Bit Holder Coupler 1/4" Drive x 1/4" Hex
TorqueMaster® Spinner Handle 1/4" Drive
TorqueMaster® Magnetizer/De-Magnetizer
Mini Bit Ratchet 1/4"

Drawer 9

EVA905T - CONTOUR® 36 Piece Sockets & Accessories EVA Tray

Metric Sockets

13 Sockets 3/4" Square Drive: 22, 24, 26, 27, 29, 30, 32, 35, 36, 38, 41, 46, 50mm

Imperial Sockets

16 Sockets 3/4" Square Drive: 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.3/16, 1.1/4, 1.5/16, 1.3/8, 1.7/16, 1.1/2, 1.5/8, 1.3/4, 1.13/16, 1.7/8, 2"

Socket Accessories

7 3/4" Square Drive Socket Accessories:

Reversible Ratchet Handle
Flex Handle 475mm (19")
Universal Joint
Extension Bar 100m (4")
Extension Bar 200mm (8")
Extension Bar 400mm (16")
Socket Adaptor 3/4" Female x 1/2" Male

Drawer 10

EVA923T - CONTOUR® 124 Piece Hex & TORX® Fastening EVA Tray

4 TorqueMaster® Hex Screwdrivers:

3mm x 100mm, 4mm x 100mm, 5mm x 100mm, 6mm x 125mm

4 TorqueMaster® TORX® Screwdrivers:

T25 x 100mm, T27 x 100mm, T30 x 100mm, T40 x 100mm

11 Piece Ball-End Hex Socket Set:

1/4" Square Drive: H1.5, H2, H2.5, H3, H4, H4.5
3/8" Square Drive: H5, H6, H8, H10, H12

11 Piece Ball-End TORX® Socket Set:

1/4" Square Drive: T10, T15, T20, T25, T27, T30
3/8" Square Drive: T40, T45, T50, T55, T60

11 Piece Tamperproof TORX® Socket Set:

1/4" Square Drive: T10H, T15H, T20H, T25H, T27H, T30H
3/8" Square Drive: T40H, T45H, T50H, T55H, T60H

10 Piece E-TORX® Socket Set:

1/4" Square Drive: M4, M5, M6, M8
3/8" Square Drive: M8, M10, M12
1/2" Square Drive: M12, M14, M16, M18

11 Piece Spline Socket Set:

1/4" Square Drive: E4, E5, E6, E7, E8
3/8" Square Drive: E10, E12, E14, E16, E18

9 Piece Metric Ball Point Long Series Hex Key Set:

1.5 x 14 x 90mm, 2.0 x 16 x 100mm, 2.5 x 18 x 112mm, 3.0 x 20 x 126mm, 4.0 x 25 x 140mm, 5.0 x 28 x 160mm, 6.0 x 32 x 180mm, 8.0 x 36 x 200mm,
10.0 x 40 x 224mm

9 Piece Imperial Ball Point Long Series Hex Key Set:

1/16” x 14 x 90mm, 5/64” x 16 x 100mm, 3/32” x 18 x 112mm, 1/8” x 20 x 126mm, 5/32” x 25 x 140mm, 3/16” x 28 x 160mm, 1/4” x 32 x 180mm,
5/16” x 36 x 200mm, 3/8” x 40 x 224mm

9 Piece TORX® Long Series Key Set:

T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm,
T45 x 44 x 210mm, T50 x 50 x 235mm

9 Piece Tamperproof TORX® Long Series Key Set:

T10H x 14 x 90mm, T15H x 16 x 100mm, T20H x 18 x 112mm, T25H x 20 x 126mm, T27H x 25 x 140mm, T30H x 28 x 160mm, T40H x 32 x 180mm,
T45H x 36 x 200mm, T50H x 40 x 224mm
