Not your Average Amp

Features extreme reliability under intense bass power and overall use
Engineered completely in-house by KICKER R&D
Full-bridge Class-D design
Quad micro-controller-regulated cooling fans
Capable of daisy-chaining remote power across multiple amps
Competition mode switch to avoid potentiometer creep, fix crossover setting, and gain-match multiple amps

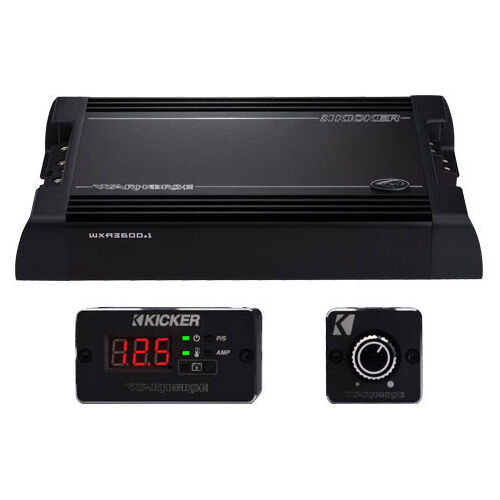

Includes premium remote bass-level control with a magnetic mount – 19.75 feet (6m) RJ45 cable
Includes a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage measurements and amp protection status – 19.75 feet (6m) RJ45 cable
Fully compatible with most factory or aftermarket source units (with FIT+™ differential inputs)
WARHORSE Install Scenarios: WarhorseInstallScenariosv2.pdf
REMOTE/DIAGNOSTIC TOOL SURFACE MOUNT TEMPLATE
REMOTE/DIAGNOSTIC TOOL FLUSH MOUNT TEMPLATE

Specifications
MODEL
WXA3600.1
WARHORSE 3600.1 white paper with full tech graph data
49WXA36001 Whitepaper PDF
WARHORSE 3600.1 Dimensions
49WXA36001 Product Dimensions PDF
*RMS Power (watts/ch) 1 Ohm Mono (@ 14.4v, <1%THD)
3600x1
*RMS Power (watts/ch) 2 Ohm Mono (@ 14.4v, <1%THD)
2500x1
*RMS Power (watts/ch) 4 Ohm Mono (@ 14.4v, <1%THD)
1400x1
**Dynamic Power (watts)
5000
Frequency Response (Hz)
10-200
Signal-to-Noise Ratio (dB; A-weighted, re: rated power)
>90
Signal-to-Noise Ratio (dB; ref: 1W output)
>70
Input Sensitivity
low level 125mV-5V
high level 1V-40V
Selectable Electronic Crossover
Variable Low-pass 50-200Hz, 24dB/octave
Subsonic Filter
Defeatable @ 15Hz, 24dB/octave
Competition Mode
warhorse-competition-mode.pdf
Dimensions (in, cm)
H – 2-9/16, 6.5
W – 9-1/8, 23.2
L – 15-3/8, 39.1
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here.
