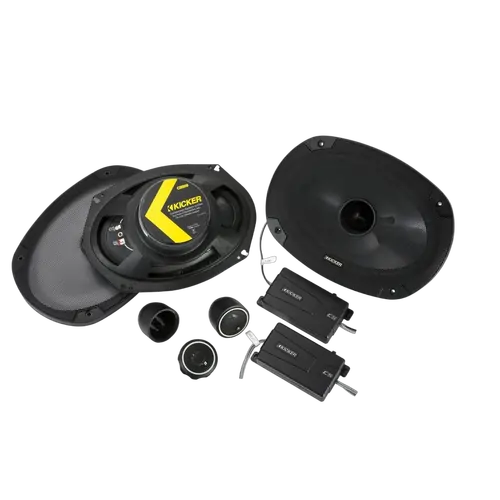

Kicker CSS694 CS-Series 6x9-inch Component Speakers



CS-Series components include titanium tweeters and two-way crossovers with a smooth 12dB slope and three-position tweeter adjustment switch (0dB/+3dB/+6dB), included in each external crossover. The optimized footprint means great sound with hassle-free installation, no matter where you mount it!



These CS speakers work best with 150 watts of recommended power. See below for more details.



Fits nearly every car made

12dB crossovers with a smaller footprint for easier installation

Three-position tweeter switch for dialing in your highs

EVC™ (Extended Voice Coil) technology help deliver remarkable bass response

Titanium tweeter construction and neodymium magnets to reveal subtle details

UV-treated poly-foam surround assists with precise linear excursion

Phase plugs in the woofer cones eliminate any distortion

Steel mesh grilles protect your drivers

Three tweeter mounting options including flush, angled and surface pods

Specifications

Woofer Size | in [mm]

6x9 [160x230]

Tweeter Size | in [mm]

3/4 [20]

Dome Material

Titanium

Peak Power | [watts]

450

Continuous Power | [watts RMS]

150

Effective Frequency Range | Hz

30-21k

Woofer Mounting Hole Diameter | in [mm]

5 5/8 x 8 7/16 [143x215]

Woofer Bottom Mount Depth | in [mm]

3 3/16 [81]

Flush Mounting Tweeter Hole Diameter | in [mm]

1 9/16 [40]

Flush Mount Tweeter Depth | in [mm]

9/16 [14.5]

High Pass | dB, at Frequency | Hz

12, 4000

Low Pass | dB, at Frequency | Hz

12, 4000

High Frequency Output Attenuation | dB

0, 3, & 6

Bolt-Thru Grilles
