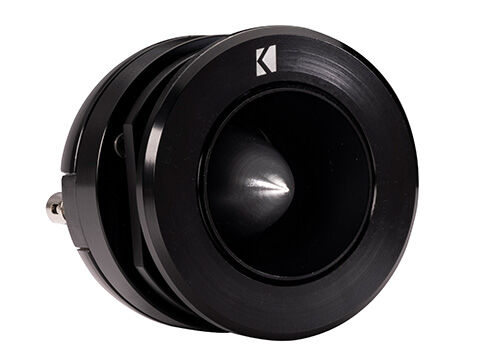

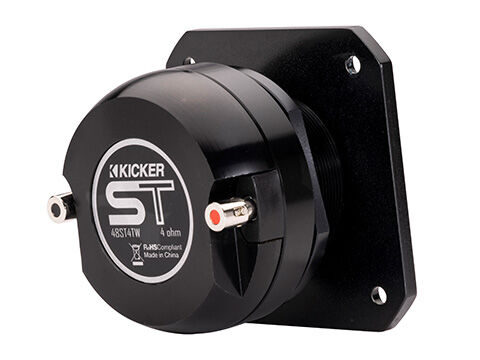

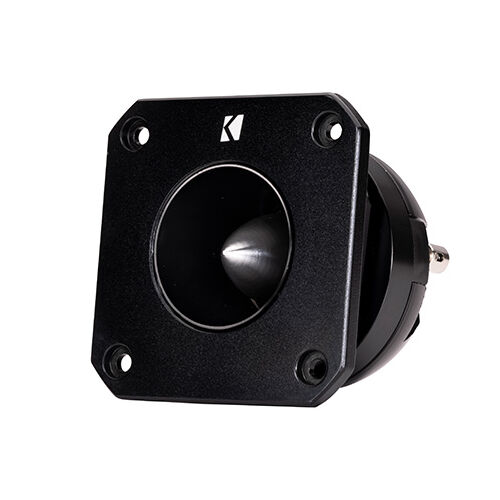

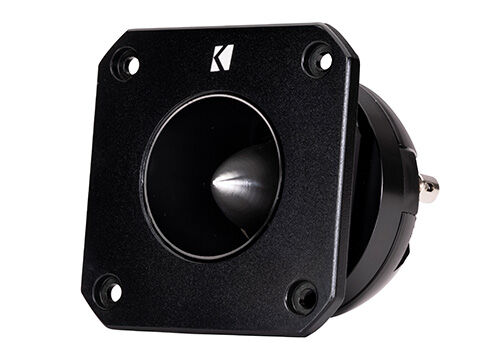

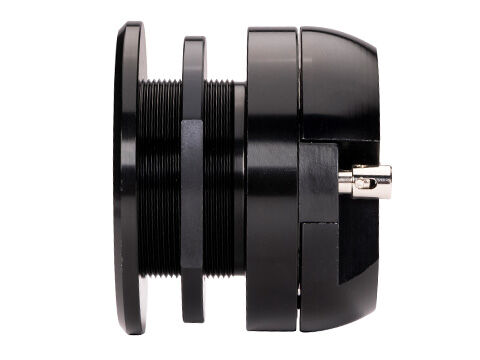

PA (Pro Audio)-Style, High Output

Extremely efficient, horn-loaded aluminum diaphragm for extreme output
Single-unit, PA (Pro Audio)-style tweeter perfect for competition-level SPL systems
Voiced for clear vocals to match with high-output bass
Includes front or rear mount options, in addition to trim bezel options
Spring-loaded terminals accept 16 AWG wire
In-line 6dB crossover
Field-replaceable voice-coil assembly available (ST3RK/ST4RK)

Specifications
Product Dimension Sheet
49ST4TW Dimensions
SingleTweeter [in, mm]
1.5, 38
Dome Material
aluminum
Design
bullet
Impedance [Ohms]
4
Recommended Amp Power [watts RMS]
15-50
Peak Power Handling [watts]
100
Frequency Response [Hz]
3k-20k
Sensitivity [1W, 1m]
108
In-Line Crossover [dB]
6, high-pass
Mounting Depth [in, mm]
1-1/4, 31
Mounting Diameter [in, mm]
2-7/8, 73
Thread Length [in, mm]
1-3/16, 30
Thread Diameter [in, mm]
1-7/8, 48
What's in the box?
1 - Tweeter
1 - Round Mounting Flange
1 - Backing Nut
1 - Square Mounting Flange
4 - Mounting Screws
1 - Capacitor
1 - Resistor
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here.
