The KICKER SoloX L7X is our most advanced bass technology with extreme power handling – made to turn heads!

Incomparable

SoloX always promises high-excursion design, made for ultra-deep bass at very high volume. It’s developed like no other KICKER subwoofer.

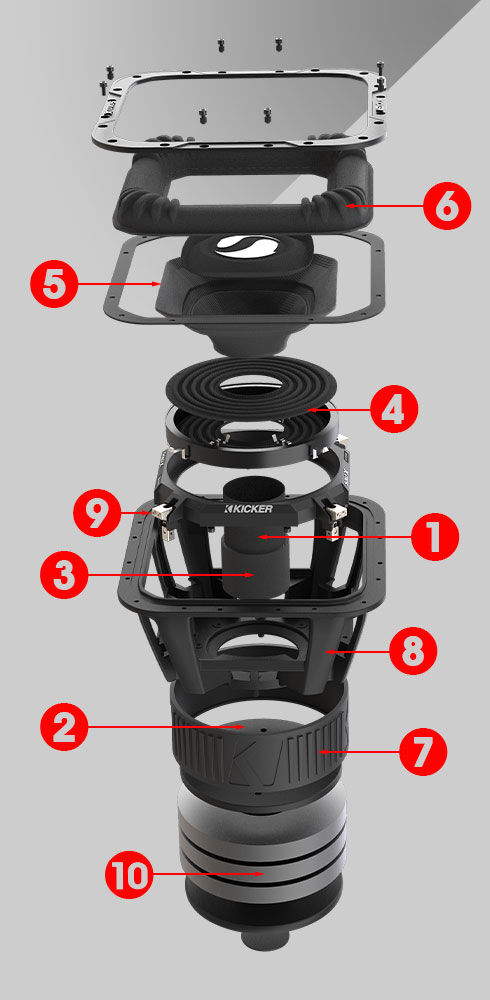

Features:

1. Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
2. Forced Air Cooling™
3. Three-inch, aluminum voice coil former
4. Dual-spider suspension
5. Double-pressed pulp cone
6. Heavy-duty UV-resistant Santoprene surround
7. Custom rubber magnet boot
8. Cast-aluminum basket
9. Single 8 AWG terminal and dual 8 AWG terminal block
10. Triple-Stacked Ferrite Magnet

Specifications
Thiele/Small Parameters
49L7X121 T/S Parameters
Size (in, cm)
12, 30
Rated Impedance (Ohms)
1 DVC
Rec Amp Power rms
1000-2000
Frequency Response
20-100
Magnet Diameter (in, cm)
8-11/16, 22
Total Magnet Weight (oz, kg)
406, 11.5
Voice Coil Diameter (in, mm)
3, 75
Voice Coil Winding Width (in, mm)
2.5, 62.5
Product Dimension Sheet
49L7X12 Dimensions
Top Plate Thickness (in, mm)
0.5, 13
Xmax (in, mm)
1.25, 31.25
Mounting Cutout (in, cm)
11-1/16, 28.1
Mounting Depth (in, cm)
10-1/8, 25.7
Recommended Vented Box Volume (Cu. Ft., L)
3, 84.9
Port Opening (in x in, cm x cm)
3.5 x 13, 9 x 33
Port Length (in, cm)
36.5, 93
Vented Enclosure Tuning Frequency (Hz)
31
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this SOLO X product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. -
