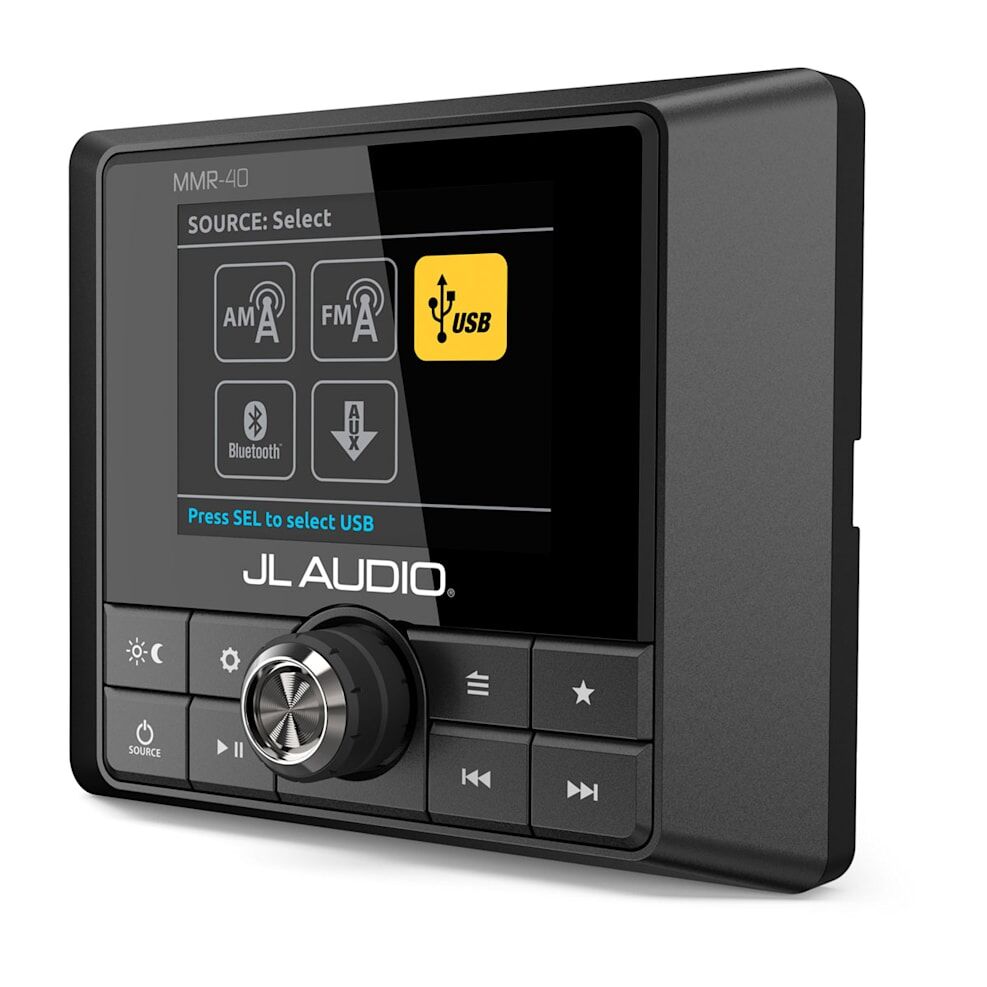

The MMR-40 is a NMEA 2000 Network Controller engineered to add full-function, auxiliary control to MediaMaster source units. Outfitted with a NMEA 2000 Micro-C connector, the MMR-40 connects to a host MediaMaster source unit in two ways:
• Direct interface with a vessel's NMEA 2000 network using applicable NMEA 2000 cables and connectors (not included)
• Direct connection of one MMR-40 with one host MediaMaster source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000 network
Once connected, the MMR-40 automatically recognises the host MediaMaster source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-colour, 2.8-inch LCD display, resulting in a complete MediaMaster user experience.
The MMR-40 is equipped with independent display theme and lighting controls for maximum mounting location flexibility, regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications, its weatherproof (IP66 rated) chassis is built to withstand the harshest environments.
SPECS
General |
|
| Physical dimensions (Height) | MMR-40: 3.74" (95 mm) |
|---|---|
| Physical dimensions (Width) | MMR-40: 4.65" (118 mm) |
| Physical dimensions (Depth) | MMR-40: 3.67" (93 mm) |
| Control Surface Dust/Water Rating (when properly installed) | IP66 |
| Operating temperature range | -4° F to +158° F (-20° C to +70° C) |
| Warranty | 3 years |
Networking |
|
| NMEA 2000® LEN | 4 (200 mA) |
|---|---|
Stereo features |
|
| Display Size | MMR-40: 2.8" (71 mm) |
|---|---|
| Display type | MMR-40: color TFT LCD, backlit |
| Display resolution | MMR-40: 320 x 240 |
| Multi-language interface |
English |
| Software updates | USB |
Sources |
|
| Supported sources |
Derived from host source unit |
|---|---|
| Supported audio formats (USB) | Derived from host source unit |
Connections |
|
| NMEA 2000® ports | 1 (Micro-C connector) |
|---|---|
| USB 2.0 ports | 1 (Software update only) |
IN THE BOX
- Wired remote controller
- Mounting hardware
- Sun cover
- Documentation
COMPATIBLE DEVICES
JL Audio® MediaMaster® 105 stereo
JL Audio® MediaMaster® 55 stereo
| SKU | 010-03129-00 |
|---|---|
| Barcode # | 0699440999106 |
| Brand | JL Audio |
| Shipping Weight | 0.6000kg |

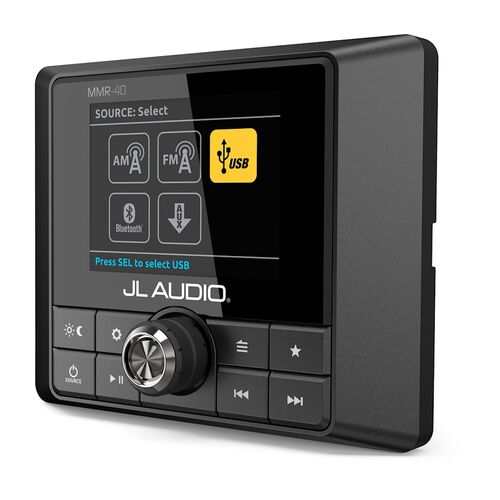

JL Audio Wired Remote Controller For MediaMaster source unit with full-colour LCD display (MMR-40)
