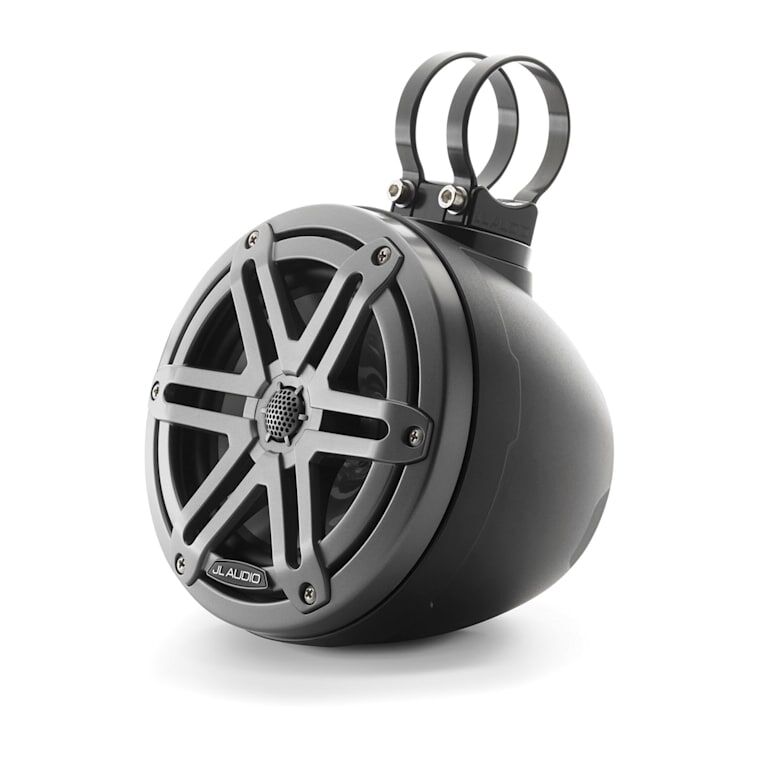

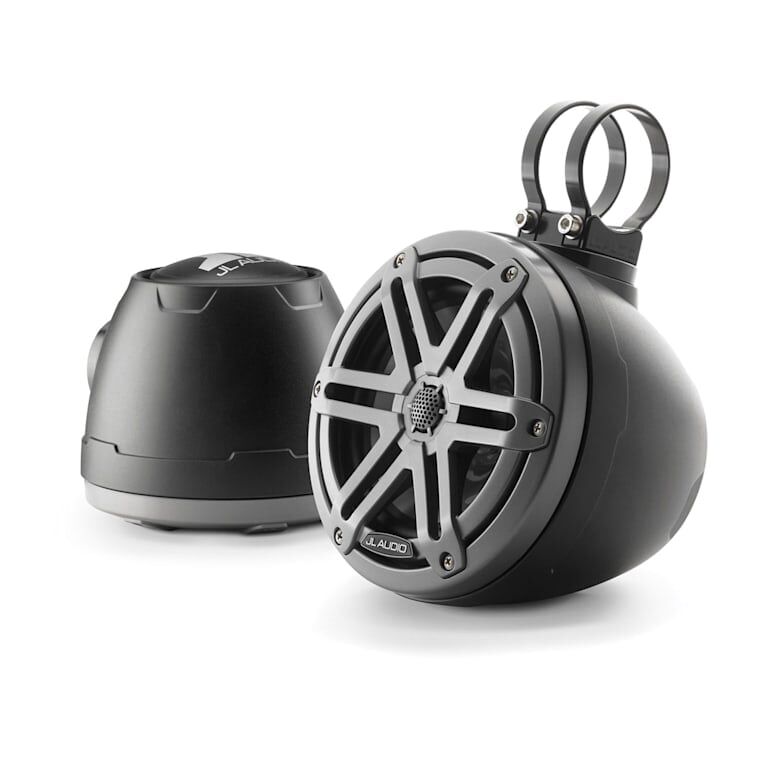

Ideal for a multitude of open-air audio installations, VEX pods are weatherproof, enclosed coaxial speaker systems designed to produce high-performance sound on boats, personal watercraft, off-road powersport vehicles and other applications where space may be limited.
DELIVERS LOUD, CLEAR AUDIO OUTPUT IN OPEN-AIR APPLICATIONS
CHOOSE M3 OR M6 SERIES 6.5-INCH COAXIAL SPEAKERS
WIDE RANGE OF TUBULAR OR SURFACE-MOUNTING OPTIONS
AVAILABLE WITH BUILT-IN RGB LED ACCENT LIGHTING
EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
2-YEAR WARRANTY
FLEXIBLE MOUNTING
All VEX pods are outfitted with a rotating clamp receiver to mate with a wide selection of mounting fixtures (sold separately) for installation on flat surfaces or a wide range of pipe diameters.
DMA-OPTIMISED WOOFERS
Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
PURE SILK TWEETERS
The treated silk dome design is chosen for its lightness, damping properties and smooth response characteristics to deliver superior output capability with crystal-clear, high-frequency detail.
ADVANCED FREQUENCY FILTERING
Solid-state protection circuitry keeps signal ranges within limits and helps minimise the possibility of tweeter failure.
POWERFULLY EFFICIENT
The M6 or M3 series marine speakers used in this system benefit from operation with quality amplification for superior audio clarity at all volume levels. For best results, use these speakers with a high-quality subwoofer.
REAL MARINE DUTY
For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.
SPECS
General |
|
| Sizes | 6.5″ |
|---|---|
| Colour | M6 VeX: White Sport or Titanium Sport M3 VeX: White Sport or Gray Sport |
| Physical dimensions (Diameter) | 179 mm (7.03″) |
| Physical dimensions (Depth) | 156 mm (6.16″) |
| Speaker type | Enclosed Coaxial |
| Continuous power handling (RMS) | M6 VeX: 75 W M3 VeX: 60 W |
| Sensitivity (SPL @ 1 W/1 m) | 89.5 dB |
| Frequency response (+/- 3 dB) | 100 Hz-25 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | M6 VeX: 25-150 W/Channel M3 VeX: 20-20 W/Channel |
| LED lighting | M6 VeX: yes - Transflective™ (selected Sport models only) M3 VeX: yes - RGB (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | M6 VeX: 324 mA M3 VeX: 108 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk dome |
| Tweeter size | M6 VeX: 20 mm (0.8″) M3 VeX: 19 mm (0.75″) |
| Warranty | 2 years |
Additional |
|
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 19 mm (0.75″) thick material. If you are using 16 mm (0.625″) thick material, subtract 6.5 mm (0.25″) from each dimension. Do not use any material with a thickness of less than 16 mm (0.625″) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorised JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
|---|---|
IN THE BOX
- Two VeX enclosures with marine coaxial loudspeakers and grilles installed
- Two Lexan logo appliqués (M3 models)
- Two aluminum logo caps (M6 models)
- One tube of silicone adhesive
COMPATIBLE DEVICES
Fusion Apollo™ MS-RA800 marine stereo
JL Audio M3 Marine Subwoofer
JL Audio® MediaMaster® 55 stereo
JL Audio® MHD Marine Amplifier
JL Audio® MVi Marine Amplifier
JL Audio® MX Marine and Powersports Amplifiers
JL Audio® Stealthbox® enclosed speakers for Polaris RZR 4 900, 900XC, XP 1000 and XP4 1000 (SB-POL-RZG3/10TW3)
JL Audio® XDM Car and Marine Amplifier
| SKU | 010-03257-00 |
|---|---|
| Barcode # | 0699440934015 |
| Brand | JL Audio |
| Shipping Weight | 4.5300kg |
