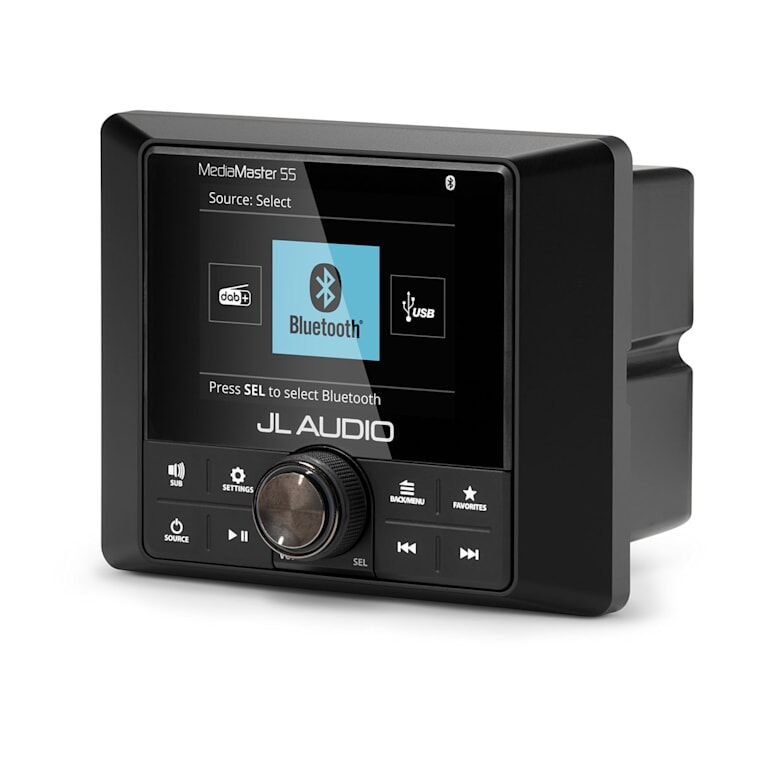

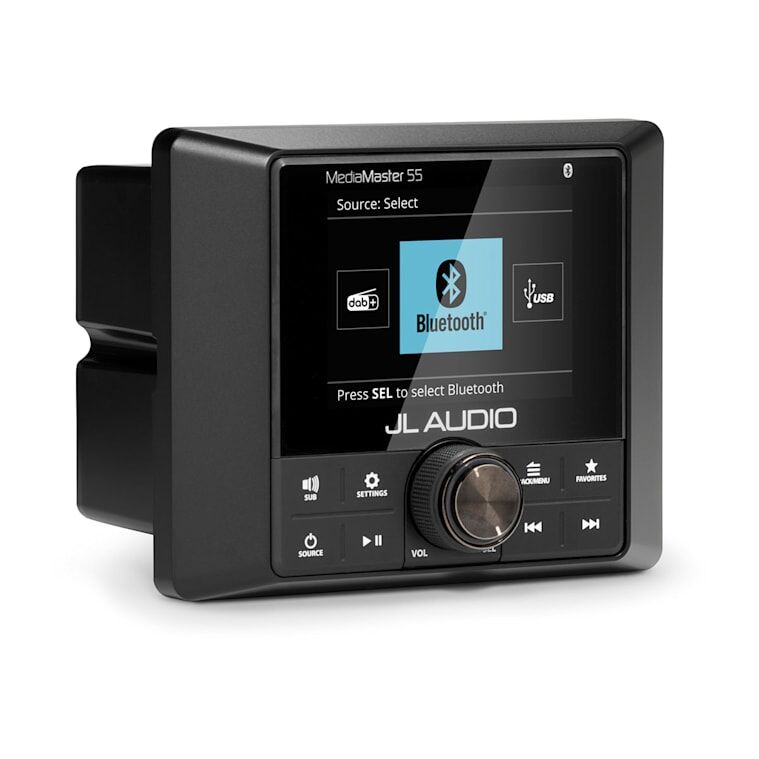

Engineered to deliver outstanding audio fidelity and advanced performance features on your boat or powersport vehicle, the compact MediaMaster 55 digital stereo puts amazing sound at your fingertips for any outdoor adventure. A hideaway receiver, MM55-HR, is also available, offering all the features of MM55 — minus the LCD display and physical controls.
RUGGED, WEATHER-RESISTANT DESIGN IS BUILT TO WITHSTAND THE ELEMENTS
BRIGHT 2.8-INCH LCD COLOUR DISPLAY GIVES OUTSTANDING READABILITY ON MM55
ONBOARD AMP POWERS UP TO 100 WATTS (25-WATT RMS x 4) OF DAZZLING SOUND
CONTROL 3 MAIN AUDIO ZONES, EACH WITH A DEDICATED SUBWOOFER OUTPUT
STORE UP TO 18 OF YOUR FAVOURITE CHANNELS ACROSS ALL TUNER BANDS
CERTIFIED NMEA 2000® NETWORK CONNECTIVITY FOR USE WITH MULTIFUNCTION DISPLAYS
POWERFUL AUDIO OUTPUT
The robust audio output options include a built-in 100-watt amplifier (25-watt RMS x 4 channels) plus 9 channels of audiophile-quality preamp outputs from 3 separate audio zones, each with a dedicated subwoofer output.
THREE MAIN AUDIO ZONES
The stereo’s high-fidelity sound is deployed via 3 separate audio zones, each with its own independent control options and subwoofer output, with built-in, selectable low-pass crossover.
EASY-TO-READ DISPLAY
The MM55 stereo’s bright 2.8-inch full-colour LCD display features separate day/night themes for clear visibility in all lighting conditions. While in motion, you’ll appreciate the intuitive user interface and oversized, illuminated control knob along with the large backlit buttons. Volume, tone (bass, midrange, treble) and balance can all be adjusted separately — or linked with zone 1. Max volume levels can be set for each zone.
SIMPLE ZONE LEVEL CONTROL
The RCA zones feature the JL Audio zero-clipping circuit design with self-limiting tone controls to help prevent speaker damage at high listening levels.
MODERN MEDIA CONNECTIVITY
All the digital and analog media formats come alive on the MM55 stereo. It includes an AM/FM tuner1, Bluetooth® connectivity, USB connections with charging for USB drives or iPhone® devices plus 2 auxiliary RCA inputs — all designed to ensure nonstop enjoyment of the soundtracks to all your adventures.
REMOTE CONTROL OPTIONS
Wired and wireless remotes (sold separately) are available to add convenient auxiliary control functionality to your MediaMaster stereo. There’s even an app that lets you enjoy untethered control from your compatible smartphone or mobile device.
STEREO FEATURES
DIGITAL HD RADIO
Built-in tuners are available for digital HD Radio™ in North America and DAB+ digital radio in Europe1.

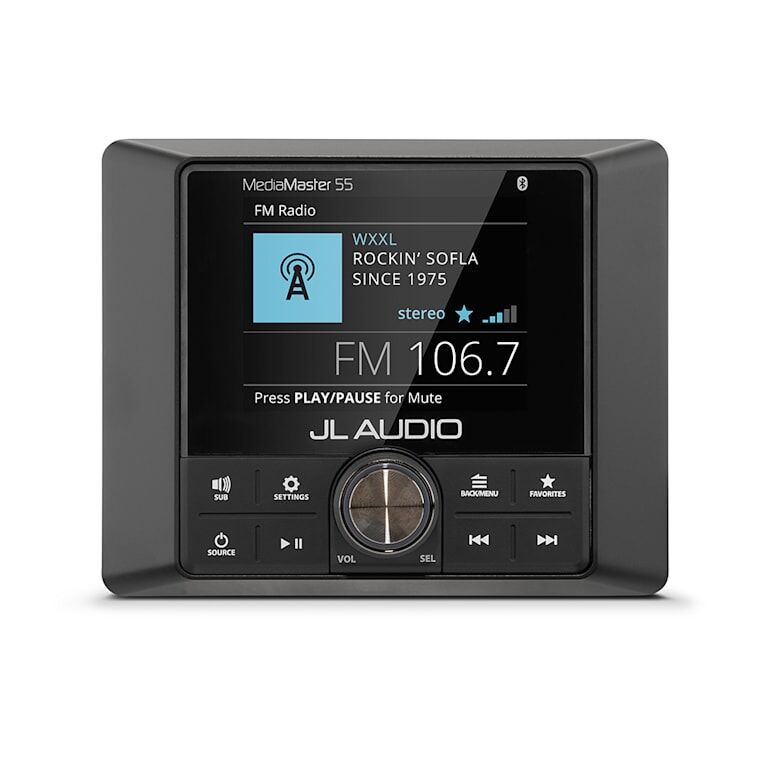

GLOBAL AM/FM
Select the global digital AM/FM radio tuner, and see an RDS display of extended FM program info (where available).

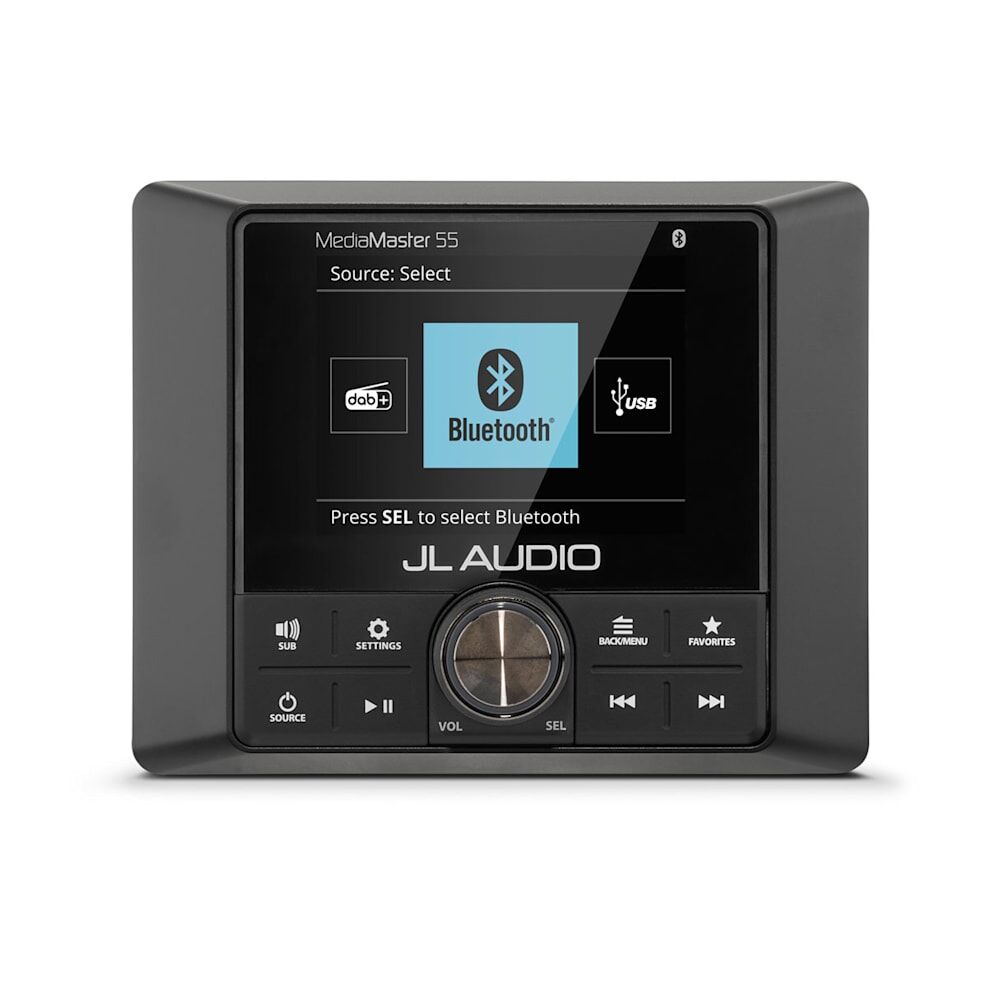

BLUETOOTH STREAMING
Stream audio via Bluetooth wireless technology with Qualcomm® aptX™ audio codec for maximum fidelity.

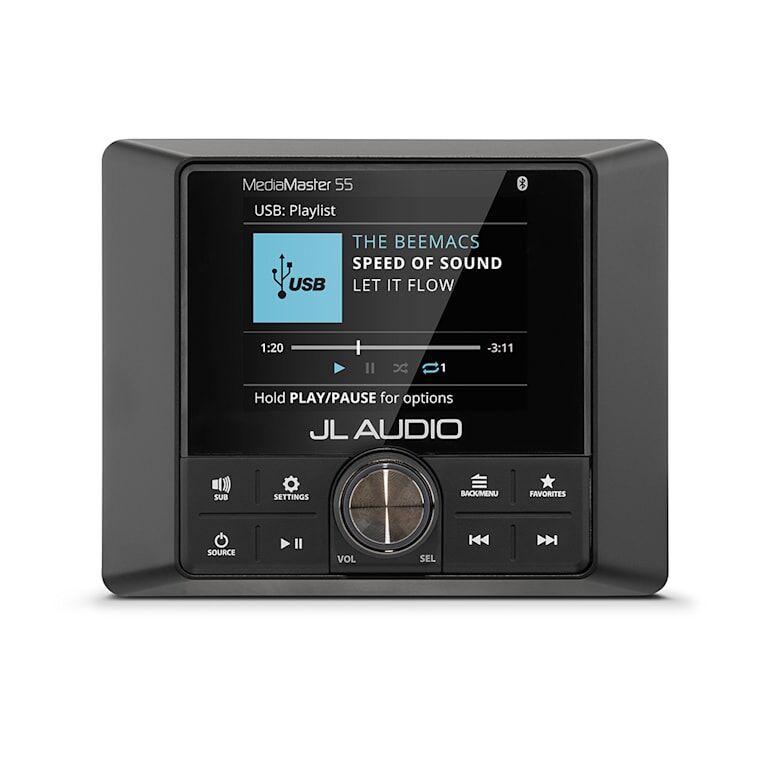

USB DIGITAL CONNECTION
USB direct digital connections let you access music files on your compatible iPhone or USB storage device.

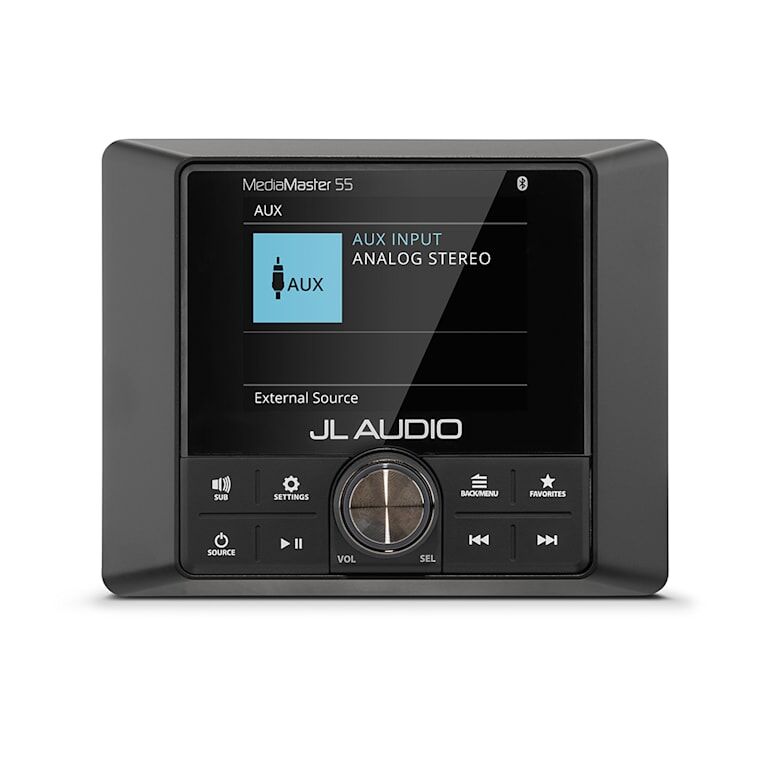

ANALOG AUX INPUT
An auxiliary RCA input provides connection for a wide range of analog audio sources.
SPECS
General |
|
| Physical dimensions (Height) | MM55: 95 mm (3.74") MM55-HR: 58 mm (2.28") |
|---|---|
| Physical dimensions (Width) | MM55: 118 mm (4.65") MM55-HR: 195 mm (7.68") |
| Physical dimensions (Depth) | MM55: 93 mm (3.66") MM55-HR: 126 mm (4.96") |
| Control Surface Dust/Water Rating (when properly installed) | IP67 |
| Operating temperature range | -20° C to + 65° C (-4° F to + 149° F ) |
| Current draw (max) | 15 A |
| Warranty | 2 years |
Networking |
|
| NMEA 2000® LEN | 1 (50 mA) |
|---|---|
| Bluetooth® wireless range | Up to 11 metres (35 ft) |
| Wireless frequencies/protocols | BLUETOOTH® : 2.4 GHz @ +14 dBm nominal |
Audio |
|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 25 W x 4 |
|---|---|
Electrical features |
|
| POWER INPUT | 10-16 VDC |
|---|---|
Stereo features |
|
| Display Size | MM55: 71 mm (2.8") |
|---|---|
| Display type | MM55: colour TFT LCD, backlit |
| Display resolution | MM55: 320 x 240 |
| Optically bonded display | YES |
| Built-in amplifier | Class-D (2 Ω stereo-stable) |
| Multi-Zone™️ technology | YES |
| Bluetooth® wireless technology | YES |
| DAB+ ready | YES |
| Multi-language interface | MM55: English/French/German/Italian/Spanish |
| Software updates | USB |
Sources |
|
| Supported sources | Digital AM/FM with RDS/DAB+ (Europe only)/BLUETOOTH®/USB audio/AUX |
|---|---|
| Supported audio formats (USB) | MP3, MP4, WAV, AAC, M4A, M4B |
Connections |
|
| Auxiliary inputs (RCA) | 1 (2V or 1V RMS Input Sensitivity) |
|---|---|
| NMEA 2000® ports | 1 (Micro-C connector) |
| USB 2.0 ports | 1 USB storage device (1 A charging output) |
| Antenna ports | 1 |
| Speaker connections | 4 (2 zones amplified) |
| RCA pre-out (left, right and subwoofer - requires external amplification) | 3 zones |
| Line out (requires external amplification) | 4 (L + R per zone) |
| Subwoofer out (requires external amplification) | 3 (1 mono output per zone) |
IN THE BOX
- MediaMaster® stereo
- Power connections wire harness
- Speaker connections wire harness
- Mounting gasket (not included with Hideaway Receiver)
- Mounting template
- Four mounting screws
- Protective sun cover (not included with Hideaway Receiver)
COMPATIBLE DEVICES
JL Audio M3 Enclosed Tower Speakers
JL Audio® M3 Marine Speakers
JL Audio® MHD Marine Amplifier
JL Audio® MVi Marine Amplifier
JL Audio® MX Marine and Powersports Amplifiers
JL Audio® Stealthbox® enclosed speakers for Polaris RZR 4 900, 900XC, XP 1000 and XP4 1000 (SB-POL-RZG2SPKR/M3-650i)
JL Audio® Stealthbox® enclosed speakers for Polaris RZR 4 900, 900XC, XP 1000 and XP4 1000 (SB-POL-RZG3/10TW3)
JL Audio® VeX™ Enclosed System
JL Audio® XDM Car and Marine Amplifier
| SKU | 010-03365-00 |
|---|---|
| Barcode # | 0699440999755 |
| Brand | JL Audio |
| Shipping Weight | 1.5200kg |
