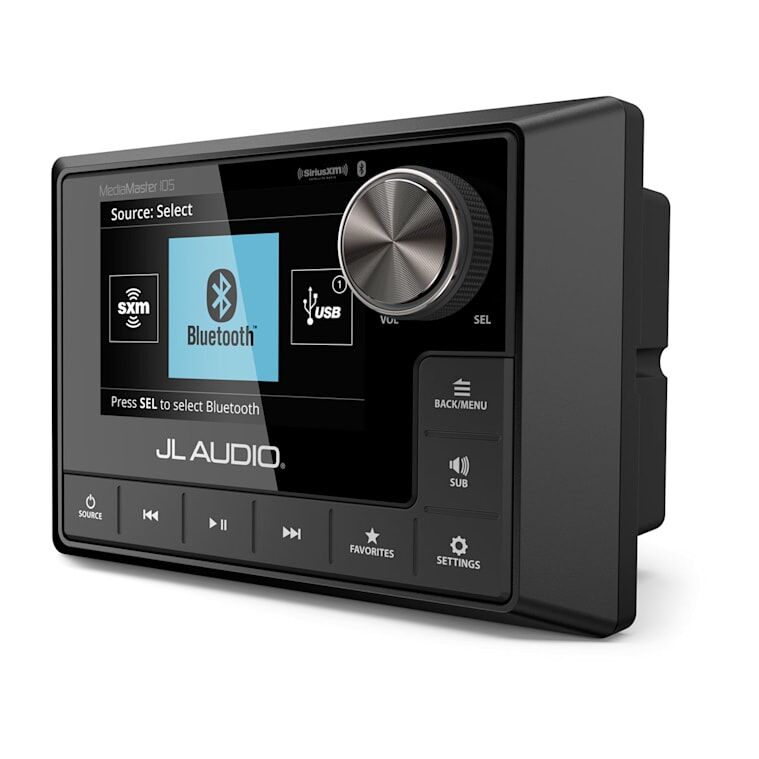

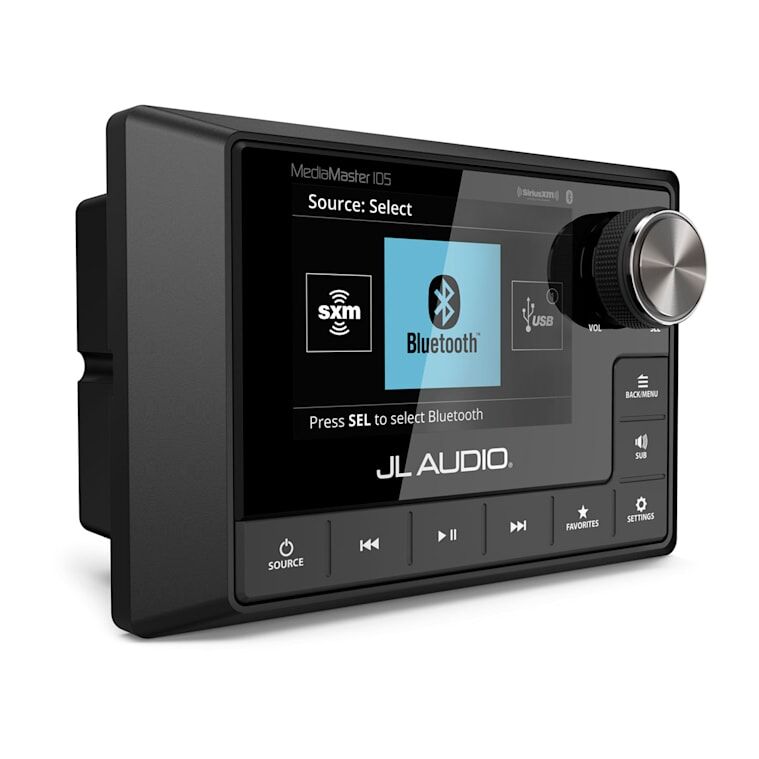

Whether it’s on your boat or powersport vehicle, the MediaMaster 105 stereo is built to withstand anything Mother Nature can dish out. It’s outfitted with a variety of tuner and connectivity options plus multizone level controls for maximum listening flexibility. A hideaway receiver, MM105-HR, is also available, offering all the features of MM105 — minus the LCD display and physical controls.
RUGGED, WEATHER-RESISTANT DESIGN IS BUILT TO WITHSTAND THE ELEMENTS
ULTRABRIGHT 3.5-INCH LCD COLOUR DISPLAY GIVES OUTSTANDING READABILITY ON MM105
OFFERS 12 CHANNELS OF AUDIOPHILE-QUALITY PREAMP LEVEL OUTPUTS
SUPPORTS 4 CONFIGURABLE, NAMEABLE AUDIO ZONES, EACH WITH ITS OWN CONTROL OPTIONS
STORE UP TO 24 OF YOUR FAVOURITE CHANNELS ACROSS ALL TUNER BANDS
CERTIFIED NMEA 2000® NETWORK CONNECTIVITY FOR USE WITH MULTIFUNCTION DISPLAYS
PREMIUM AUDIO CONTROL
Instead of an internal amplifier designed to drive loudspeakers directly, the MM105 series aims for premier sound quality by offering 12 channels of 4-volt RMS preamp level outputs, delivering crystal-clear signals to high-quality external amplifiers.

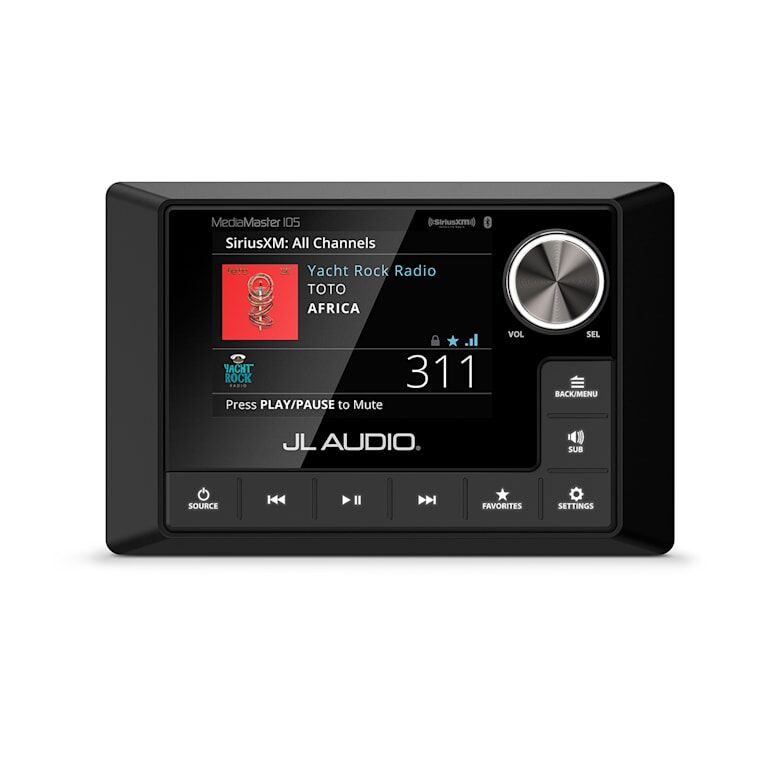

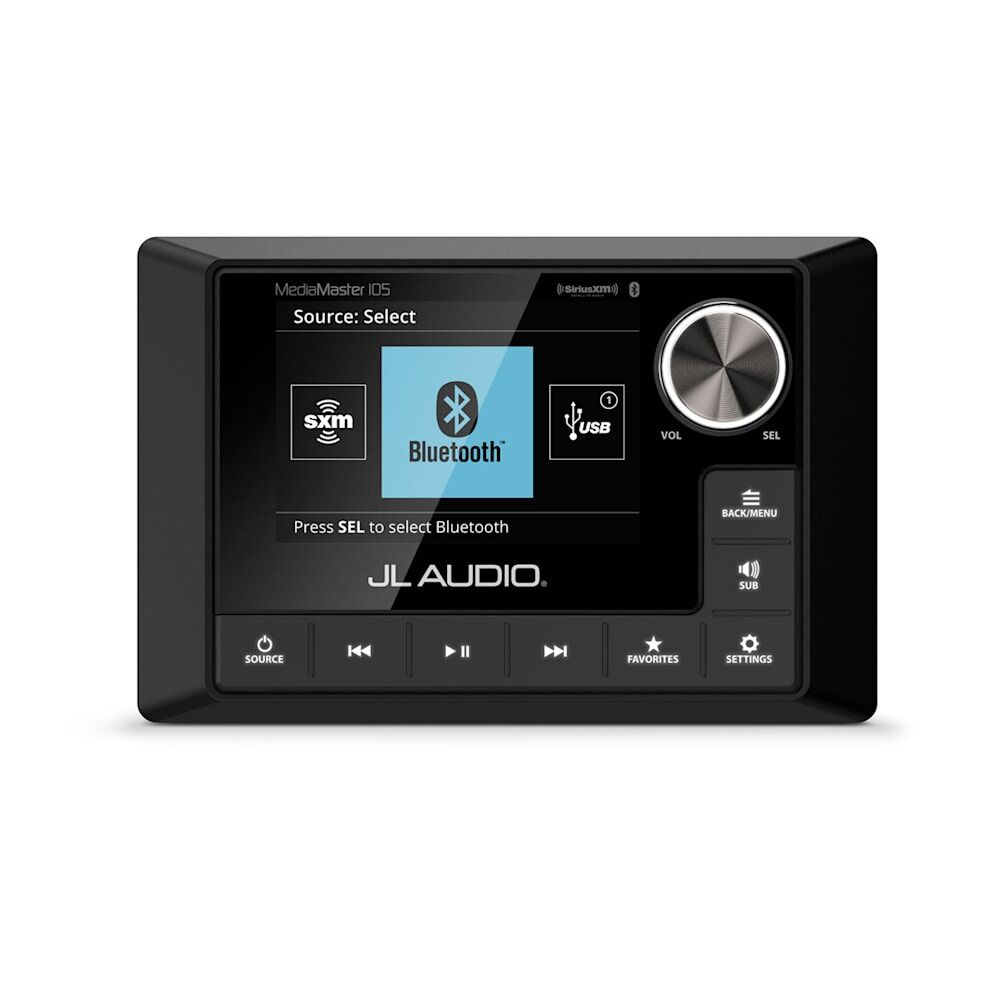

EASY-TO-READ DISPLAY
The MM105 stereo’s ultrabright 3.5-inch full-colour LCD display features separate day/night themes for clear visibility in all lighting conditions. While in motion, you’ll appreciate the intuitive user interface and oversized, illuminated control knob along with the large backlit buttons.
FOUR AUDIO ZONES
The stereo’s premium sound is deployed via 4 separate audio zones, each with its own independent control options and subwoofer output, with built-in, selectable low-pass crossover. Volume, tone (bass, midrange, treble) and balance can all be adjusted separately — or linked with zone 1. Max volume levels can be set for each zone.
SIMPLE ZONE LEVEL CONTROL
The RCA zones feature the JL Audio zero-clipping circuit design with self-limiting tone controls to help prevent speaker damage at high listening levels.
MODERN MEDIA CONNECTIVITY
All the digital and analog media formats come alive on the MM105 stereo. It includes an AM/FM tuner1, Bluetooth® connectivity, USB connections with charging for USB drives or iPhone® devices plus 2 auxiliary RCA inputs — all designed to ensure nonstop enjoyment of the soundtracks to all your adventures.
REMOTE CONTROL OPTIONS
Wired and wireless remotes (sold separately) are available to add convenient auxiliary control functionality to your MediaMaster stereo. There’s even an app that lets you enjoy untethered control from your compatible smartphone or mobile device.
STEREO FEATURES
DIGITAL HD RADIO
Built-in tuners are available for digital HD Radio™ in North America and DAB+ digital radio in Europe1.

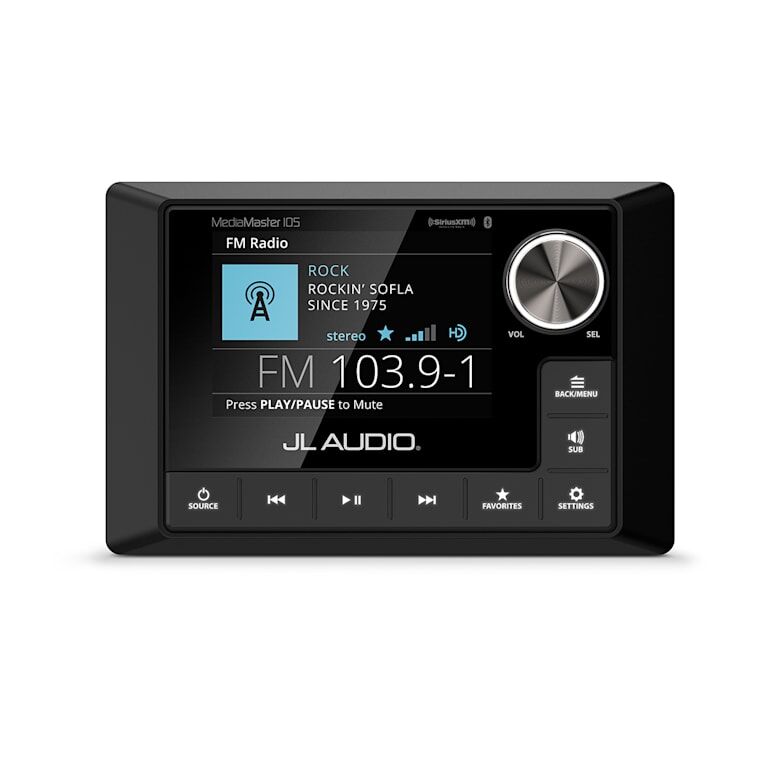

GLOBAL AM/FM
Select the global digital AM/FM radio tuner, and see an RDS display of extended FM program info (where available).
BLUETOOTH STREAMING
Stream audio via Bluetooth wireless technology with Qualcomm® aptX™ audio codec for maximum fidelity.
USB DIGITAL CONNECTION
USB direct digital connections let you access music files on your compatible iPhone or USB storage device.
SPECS
General |
|
| Physical dimensions (Height) | MM105: 99 mm (3.91") MM105-HR: 59 mm (2.32") |
|---|---|
| Physical dimensions (Width) | MM105: 151 mm (5.95") MM105-HR: 196 mm (7.70") |
| Physical dimensions (Depth) | MM105: 100 mm (3.94") MM105-HR: 170 mm (6.69") with harness bend |
| Control Surface Dust/Water Rating (when properly installed) | MM105: IP67 MM105-HR: IP66 |
| Operating temperature range | -20° C to + 70° C (-4° F to + 158° F ) |
| Current draw (max) | 1.5 A |
| Warranty | 2 years |
Networking |
|
| NMEA 2000® LEN | 1 (50 mA) |
|---|---|
| Bluetooth® wireless range | Up to 11 metres (35 ft) |
| Wireless frequencies/protocols | BLUETOOTH® |
Electrical features |
|
| POWER INPUT | 10-15.9 VDC |
|---|---|
Stereo features |
|
| Display Size | MM105: 89 mm (3.5") |
|---|---|
| Display type | MM105: colour TFT LCD, backlit |
| Display resolution | MM105: 320 x 480 |
| Multi-Zone™️ technology | YES |
| Bluetooth® wireless technology | YES |
| SiriusXM-ready | YES |
| DAB+ ready | YES |
| Multi-language interface | MM105: English/French/German/Italian/Spanish |
| Software updates | USB |
Sources |
|
| Supported sources | AM/FM with RDS Digital HD Radio (North America only) DAB+ (Europe only)/BLUETOOTH®/USB audio/iPhone®/iPod®/AUX x2/SiriusXM-Ready (US & Canada only, requires subscription and SiriusXM Connect vehicle tuner) |
|---|---|
| Supported audio formats (USB) | MP3, MP4, WAV (up to 1411 kbps), AAC, M4A, M4B |
Connections |
|
| Auxiliary inputs (RCA) | 2 (2V or 1V RMS Input Sensitivity) |
|---|---|
| NMEA 2000® ports | 1 (Micro-C connector) |
| USB 2.0 ports | 2 USB1: High-speed connection for use with iPhone®/iPod® (Mfi-certified) or USB storage device (1 A charging output) USB2: Full-speed USB storage device connection (500 mA charging output) |
| SiriusXM ports | 1 |
| Antenna ports | 1 |
| RCA pre-out (left, right and subwoofer - requires external amplification) | 4 zones |
| Line out (requires external amplification) | 4 (L + R per zone) |
| Subwoofer out (requires external amplification) | 4 (1 mono output per zone) |
IN THE BOX
- MediaMaster® stereo
- Power connections wire harness
- Mounting gasket (not included with Hideaway Receiver)
- Mounting template
- Four mounting screws
- Protective sun cover (not included with Hideaway Receiver)
COMPATIBLE DEVICES
JL Audio® MHD Marine Amplifier
JL Audio® MVi Marine Amplifier
JL Audio® MX Marine and Powersports Amplifiers
JL Audio® XDM Car and Marine Amplifier
| SKU | 010-03132-00 |
|---|---|
| Barcode # | 0699440999304 |
| Brand | JL Audio |
| Shipping Weight | 1.5500kg |
