Whether you’re on the boat or riding the wake behind it, the JL Audio M6 is the ultimate tower speaker system for delivering powerful, crystal-clear sound that you can hear and enjoy well beyond the boat.
POWERFUL MIDBASS OUTPUT IN OPEN-AIR APPLICATIONS
7.7- OR 8.8-INCH COAXIAL SPEAKERS WITH SILK DOME TWEETERS
WIDE RANGE OF TUBULAR OR SURFACE-MOUNTING OPTIONS
AVAILABLE WITH PATENTED TRANSFLECTIVE™ RGB LED LIGHTING
EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
2-YEAR WARRANTY
TOWERING PERFORMANCE
Robust M6 speakers are ideal for wakeboard towers or other tubular structures — or they can be flat mounted to decks and other surfaces to deliver superb sound quality with strong projected output.
DMA-OPTIMISED WOOFERS
Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
MATCHING SILK DOME TWEETERS
Precisely tuned tweeters, uniquely sized for each woofer’s diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.
ADVANCED FILTER NETWORKS
Each woofer chassis houses a multi-order, true two-way crossover optimised for each speaker size and electronic tweeter protection circuit to minimise the possibility of tweeter failure.
POWERFULLY EFFICIENT
M6 series marine speakers used in this system benefit from operation with quality amplification for superior audio clarity at all volume levels.
REAL MARINE DUTY
For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.
SPECS
General |
|
| Sizes | 7.7"/8.8" |
|---|---|
| Colour | White Classic, White Sport or Titanium Sport |
| Physical dimensions (Diameter) | 7.7": 196 mm (7.70") 8.8": 224 mm (8.80") |
| Physical dimensions (Depth) | 7.7" (Classic): 321 mm (12.62") 7.7" (Sport): 322 mm (12.67") 8.8" (Classic): 374 mm (14.73") 8.8" (Sport): 376 mm (14.80") |
| Speaker type | Enclosed Coaxial |
| Continuous power handling (RMS) | 7.7": 100 W 8.8": 125 W |
| Sensitivity (SPL @ 1 W/1 m) | 7.7": 91.0 dB 8.8": 90.5 dB 7.7": 100 W 8.8": 125 W |
| Frequency response (+/- 3 dB) | 6.5": 45 Hz-25 kHz 7.7": 38 Hz-20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 7.7": 40-200 W/Channel 8.8": 50-250 W/Channel |
| LED lighting | Yes - Transflective™ (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 6.5"/7.7": 324 mA 8.8": 486 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk dome |
| Tweeter size | 7.7": 25 mm (1") 8.8": 32 mm (1.25") |
| Warranty | 2 years |
Connections |
|
| Speaker connections | Flying Lead with 16 AWG wire (10 ft) |
|---|---|
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only, 10 ft) |
Additional |
|
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 19 mm (0.75″) thick material. If you are using 16 mm (0.625″) thick material, subtract 6.5 mm (0.25″) from each dimension. Do not use any material with a thickness of less than 16 mm (0.625″) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorised JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
|---|---|
IN THE BOX
- Two wake tower enclosures with marine coaxial loudspeakers and grills installed
- Two aluminum logo caps
- One tube of silicone adhesive
- Eight red butt splice connectors (#22-18 AWG)
- Four blue butt splice connectors (#16-14 AWG)
COMPATIBLE DEVICES
Fusion Apollo™ MS-RA800 marine stereo
JL Audio® M6 Marine Subwoofer
JL Audio® M7 Marine Subwoofer
JL Audio® MHD Marine Amplifier
JL Audio® MVi Marine Amplifier
JL Audio® XDM Car and Marine Amplifier
| SKU | 010-03088-00 |
|---|---|
| Barcode # | 0699440936538 |
| Brand | JL Audio |
| Shipping Weight | 9.4000kg |

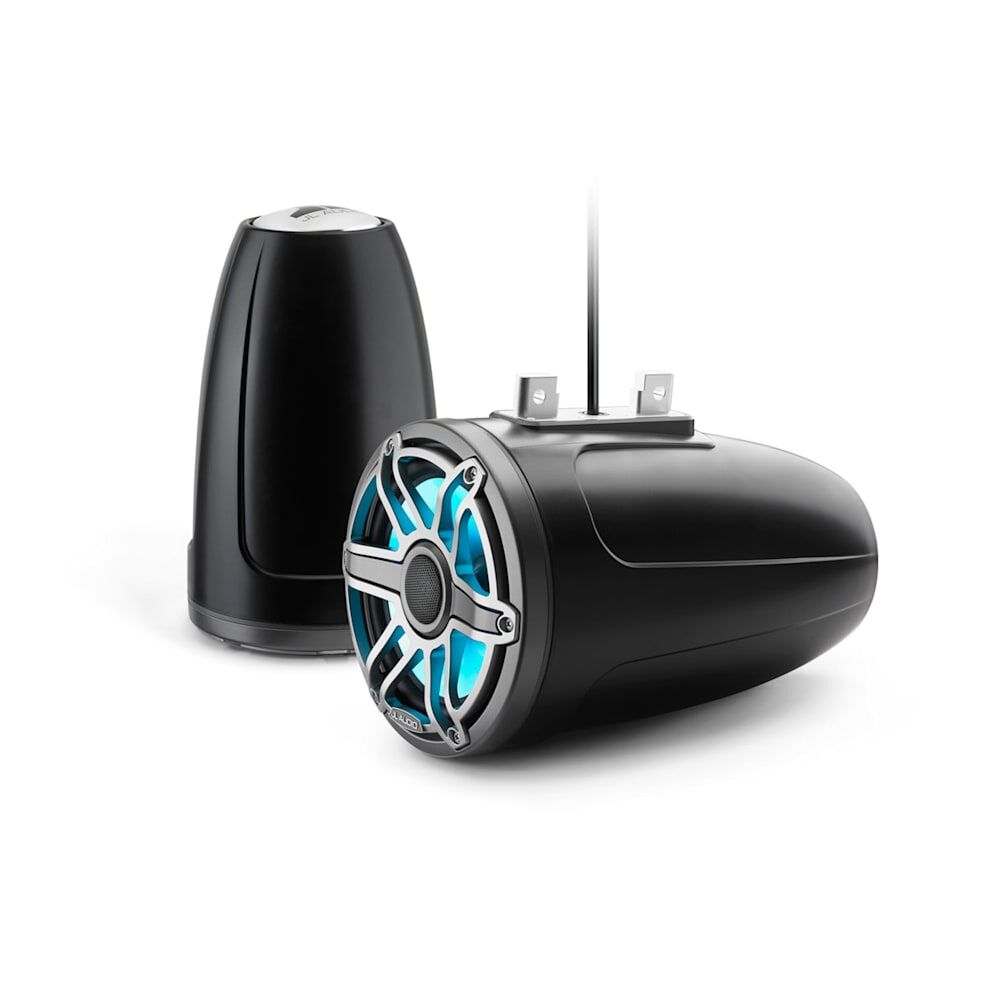

JL Audio M6 Enclosed Tower Speakers, 7.7" with LED and Titanium Sport Grille
