Upgrade your JEEP Grand Cherokee's old tired audio system with the latest tech including
Apple CarPlay and Android Auto with Stinger Electronics
Made For Your JEEP
You've got great taste. Solid vehicle choice. Its a great rig with loads of flexibility but its factory audio system is really dated and old by today's standards.

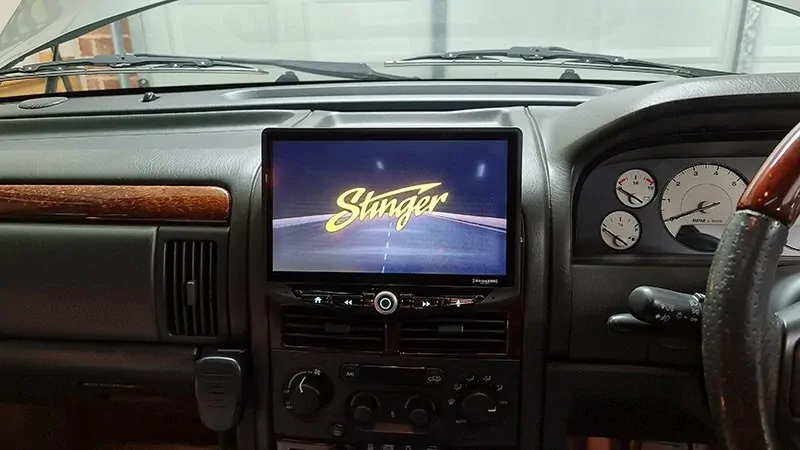

With included dash mounting hardware and vehicle interface + harness, the Stinger 10" HEIGH10 Infotainment system can be easily fitted to your 1999 – 2005 JEEP Grand Cherokee WJ with retention of factory features including
- OEM Amplified Audio System (if equipped)
- OEM Steering Wheel Controls (if equipped)
Upgrade To Today's Technology
Gain total access to your smartphone’s music and navigation capabilities plus other external devices with the Stinger HEIGH10 10″ infotainment system
- Certified Apple CarPlay®
- Certified Google Android Auto™
- Dual USB rear inputs with 1.5a charging rate (for smartphone, mass storage and USB thumb drive use)
- Certified HDMI input for high resolution video devices
- AM/FM radio with RDS Radio support
- Bluetooth® 4.2 for Hands-free calling
- Bluetooth® A2DP with aptX™ for amazing audio playback
- High resolution video playback(MOV, VOB, FLV, AVI, MPEG4, MKV files up to 1920 x 1080p)
- High resolution audio playback (AAC, OGG, M4A, MP3,WAV, FLAC files)
- AV (Audio Visual) RCA input
- Dual zone video output for rear seat entertainment
Ready For The Trail
HEIGH10's 4 camera input which can be used with any vehicle camera featuring a RCA connection, allows you to see around your vehicle with easy touch screen control of each camera.
Want to have hardware switches? No worries! Each camera input has its own 12v+ input trigger which you can use with an external switch to jump straight to the camera view.
Don't have a reverse camera from factory?
Grab the Echomaster PCAM-201-N Universal Flush Mount Reverse Camera (Available Separately)
Looking for a great off-road ready camera?
Grab the Echomaster PCAM-10FF-N Off-Road ready camera (available separately)

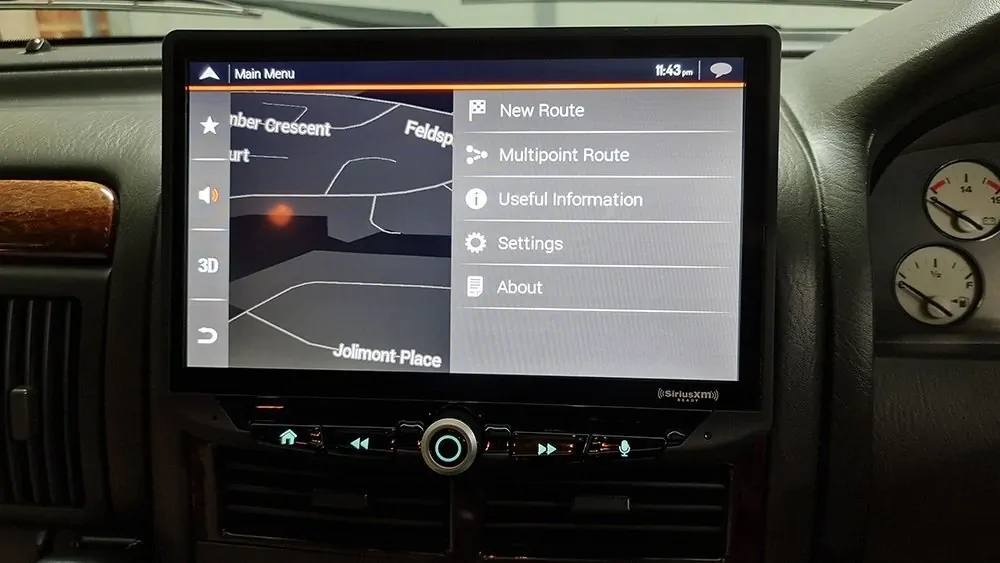

Navigate With Ease
With Android Auto and Apple CarPlay support, easily access your phones navigation, music and features directly from the safety of the Stinger HEIGH10's touch screen.
Want to follow the trail? with applications including Gaia GPS available from the Apple AppStore, you can get your 4×4/offroad maps right on your screen with CarPlay (Available for download from the App-store / Play store, not included)
With optional iGO offline mapping (available separately), mobile phone reception is no longer an issue with easily updatable Australian / NZ mapping which can be upgraded/Updated at any time via your naviextras.com account
Amazing Audio Features
Not only does it look the part, but the Stinger HEIGH10 also sounds the part with its built-in Digital Sound Processor offering
- High Power 4x 50 Watt Built-In Amplifier
- 15 Bands of Equalization and 3 Presets
- 4 Volt High Powered 6 Channel RCA Outputs For External Amplifiers
- Toslink Optical Output For High-end Digital Sound Processors
Connectivity Plus
Don't miss a call thanks to built-in high quality Bluetooth connectivity for handsfree calling and music streaming.
Once installed, the dual USB flush mount connection allows easy plug-in of USB storage for music and video playback plus mobile phones for Android Auto and Apple CarPlay connectivity
Includes Everything You Need
The Stinger Australia Off-Road SRP-JW07H kit includes
- Vehicle Specific Dash Panel
- Vehicle Specific Antenna Adaptor
- PAC SWI-RC-1 Steering Retention Interface
- Vehicle Specific '99 – '01 JEEP Radio Harness
- Vehicle Specific '02 – '05 JEEP Radio Harness
- Dual USB Accessory Socket/Cig Lighter Replacement Harness
- 10" Stinger HEIGH10 Infotainment System
- Stinger HEIGH10 1-DIN Adaptor Kit
- Vehicle Installation Instructions
Features

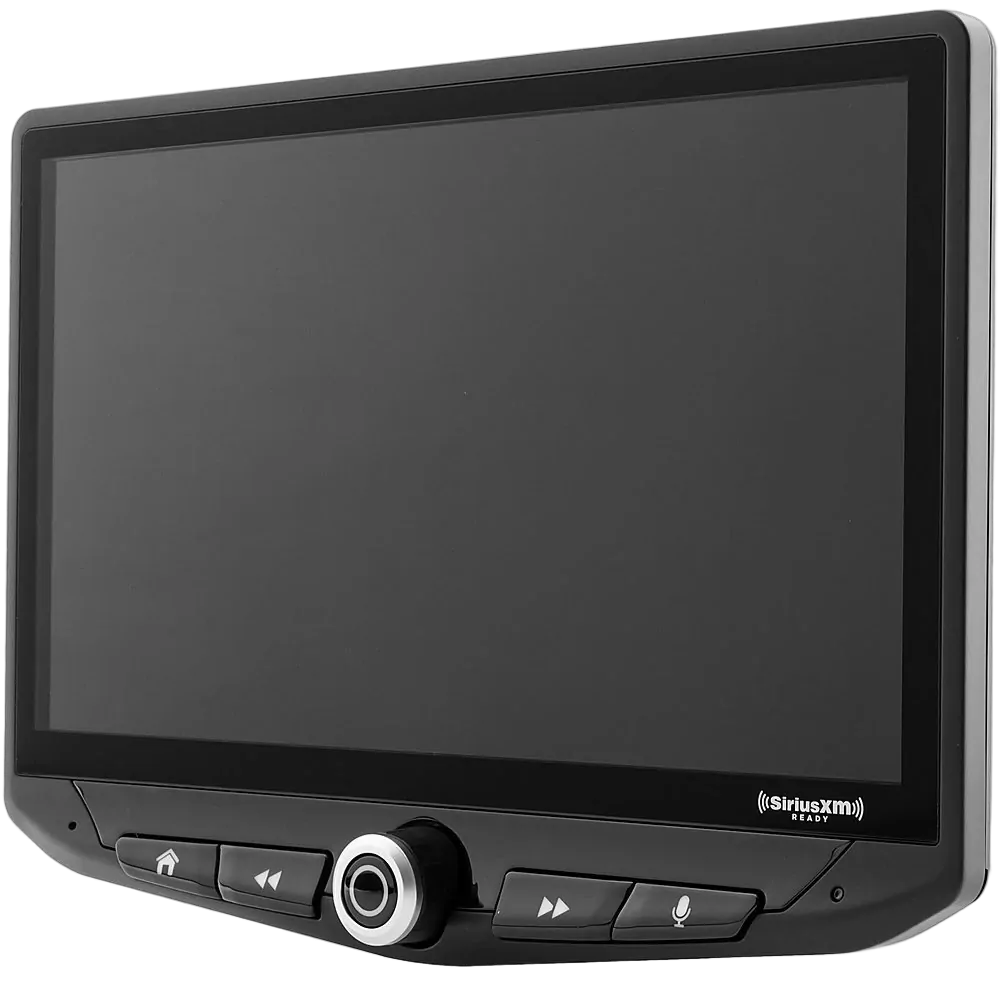

- 10-inch 1024 x 600 HD digital capacitive touchscreen featuring 16.7 million colors
- Apple CarPlay / Google Android Auto support
- AM/FM radio – PTY / RT information
- High power 4 x 50W peak built-in amplifier
- 4V 6ch RCA audio outputs with subwoofer control
- Toslink (Optical) Variable Audio Output
- 15 Band Adjustable EQ with 3 user presets for each audio source
- 1x HDMI rear input
- 2x USB rear inputs 1.5amp output
- Handsfree Bluetooth 4.2 A2DP with aptX
- Built-in microSD card slot for optional iGO Navigation
- 4x Camera Video inputs with wired triggers
- Mic Audio input from rear camera
- Hardwired remote control ready (Steering Wheel Controls)
- Customizable illumination colors and display backgrounds
- Rear Seat Entertainment Output (2x Video, 1x Audio)
Compatablity Notes
- Requires some wiring, this kit is not plug and play.
- Compatible with factory amplified and non amplified models.
- Offline iGO Mapping is NOT included. Available separately
- Mobile phone not included. You must supply your own Android or Apple supported device.
| Plug & Play | YES – FACTORY CONNECTOR TO BARE WIRES |
|---|---|
| Vehicle Plug Style | 22PIN CHRYSLER Style Connector |
| Bluetooth Support | Handsfree Bluetooth 4.2 A2DP with aptX |
| USB | Dual USB 1.5 Amp Connectivity |
| Input Channels | 1x A/V RCA Input, 1x HDMI Input, 4x RCA Camera Inputs |
| Output Channels | 1 x Toslink, 1x RCA Stereo Audio Output, 2x RCA Video Output |
| RCA Pre-Outs | 6 Channel Output (Front/Rear/Subwoofer) |
| Vehicle Make | Vehicle Model | Vehicle Year + Vehicle Chassis Code |
|---|---|---|
| JEEP | GRAND CHEROKEE | 1999 - 2004 (WJ-WG) |
| SKU | SRP-JG99H |
|---|---|
| Barcode # | 9342270007015 |
| Brand | Stinger |
| Shipping Weight | 2.0000kg |
Jeep Heigh10 Infotainment Kit (Includes: Un1810/Mt99-6503/Ipusbd3/Pacswicp2/Stbaa20/Mt70-6503/Bha1817R/Se-Sdin)
