Description:

• Engineered for enhanced workplace safety, this high-visibility hose reel features the unique Helix Ultra-Coil hose layering system and a smooth, controlled return to significantly reduce the risk of dangerous hose whipping. Its bright, high-visibility hose and reel also provide an extra layer of safety by helping to prevent trips and other workplace hazards.

Specifications:

• Hose Length: 20 m
• Hose I.D: 9.5 mm (3/8″)
• Hose O.D: 16 mm (5/8″)
• Leader Hose Length: 2 m
• Hose Material: Reinforced PVC Braided
• Reel/Case Type: Controlled return / Polypropylene
• Auto Lock / Rewind: Yes

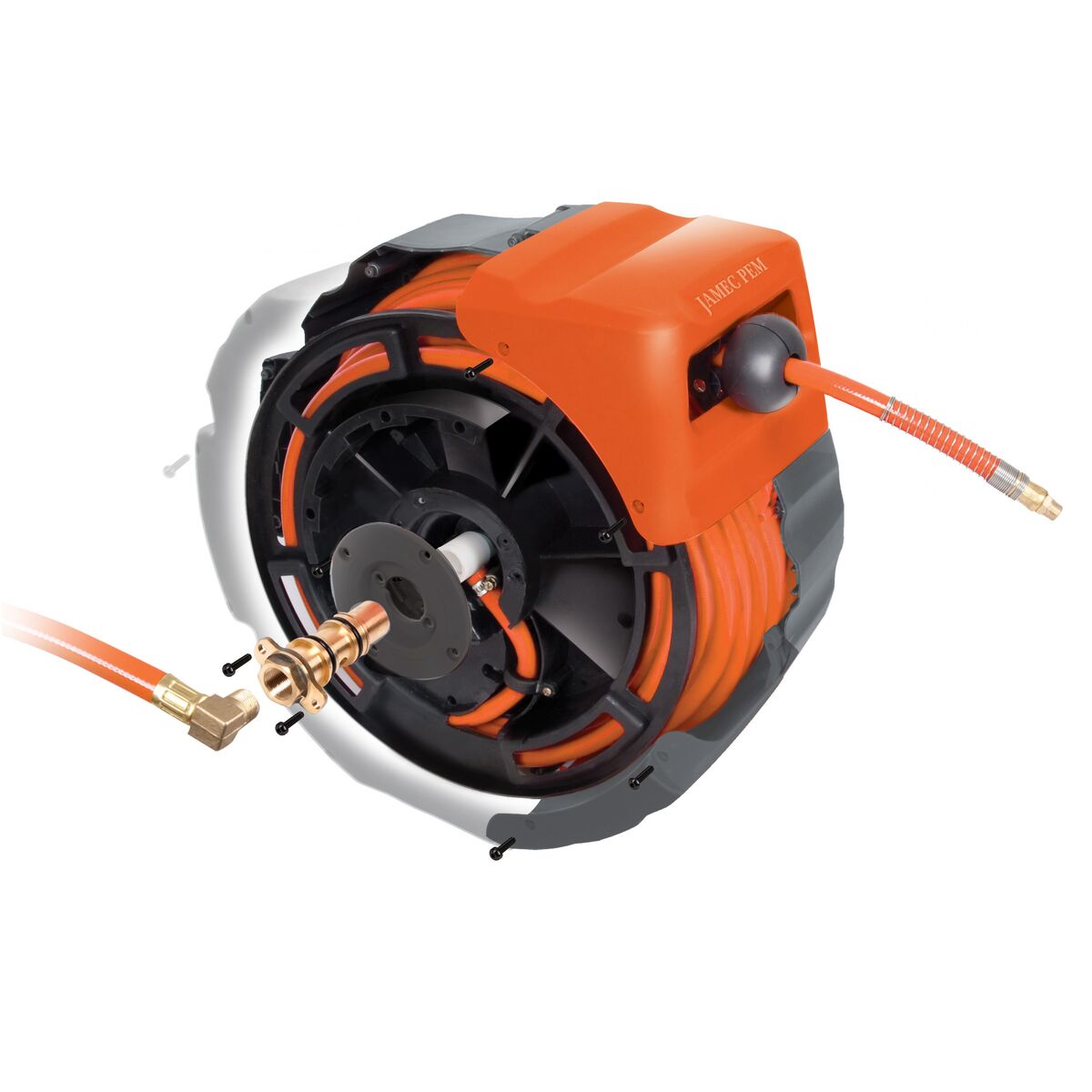

• Hose Layering System: Yes
• Controlled Hose Return: Yes
• Max Working Pressure: 300 psi
• Fitting Size: 1/4″ BSP Male

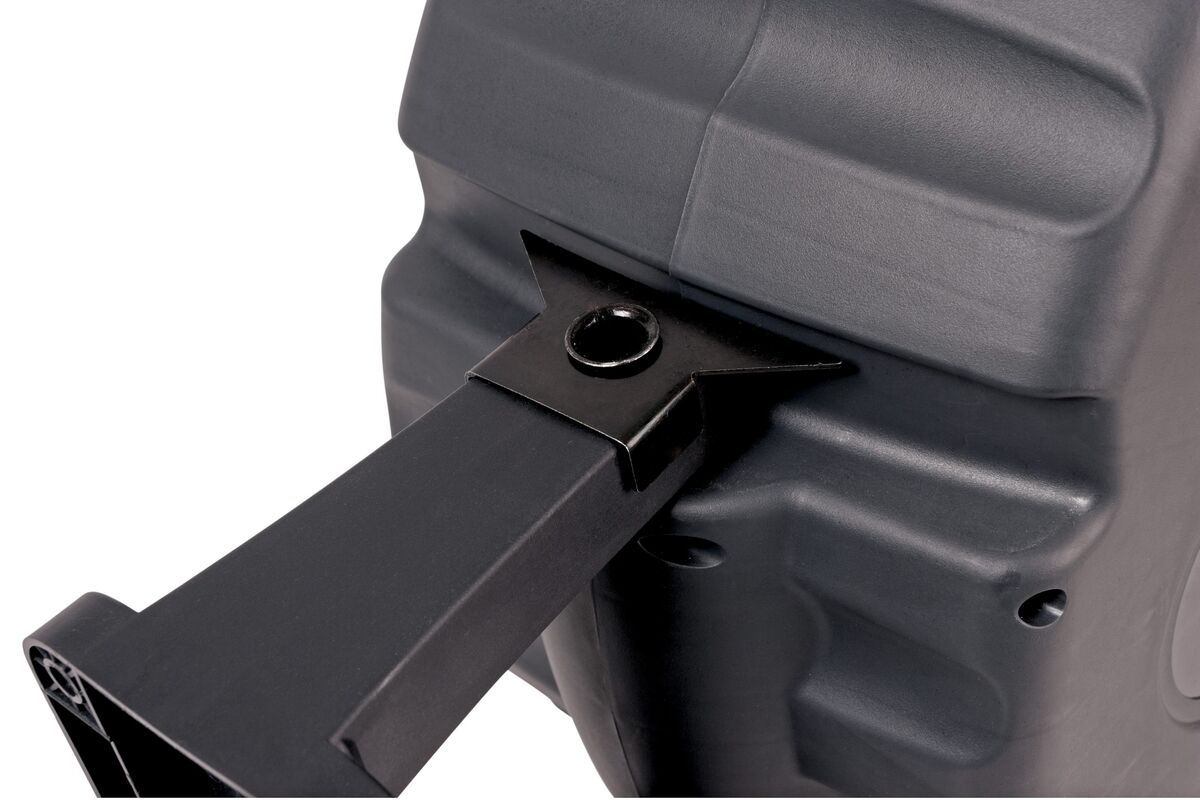

• Bracket: 180 degree pivot
• Weight: 8.8 kg
• Dimensions: 569 L x 246.4 W x 441.6 D mm
• Application: Air
