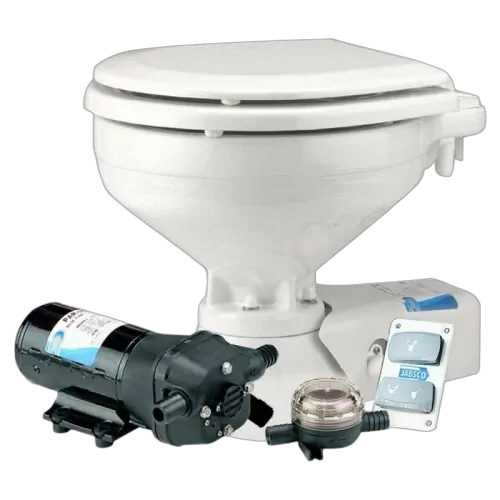

JABSCO Quiet Flush Toilets

Salt Water Flush - Large Bowl - Quiet Flush - Salt Water Toilet

Includes a Par-Max 4 electric diaphragm pump

In-line pump filter

2 metres of white 20mm connection hose, and

A modern 3-way toilet control panel.

Toilet size : 370mm wide x 500mm deep x 370mm high

J10-127 12 volt Jabsco 37245-1092

QUIET FLUSH marine toilets are an innovation from Jabsco to improve the performance, comfort and appearance of electric marine toilets and make life on-board more comfortable.

The QUIET FLUSH system is an electric toilet system that dramatically reduces the noise level of the flush pump to make life on board more comfortable for all crew members, even those sleeping off watch!

The QUIET FLUSH system basically works the same way and includes the same features as standard electric Jabsco toilets, with some important additional features.

Salt water intake : Utilises a very quiet electric Par-Max 4 diaphragm pump to draw salt water into the toilet for flushing and rinsing of the bowl. This pump can be remotely mounted in a convenient position. It replaces the noisy impeller driven flush pump that is normally housed in the base of the electric toilet.

All QUIET FLUSH toilets include:

Powerful macerator discharge pump that breaks up waste and evacuates the toilet. A modern 3-way control panel that allows you to select a normal flush and drain cycle or to raise or lower the water level. 2 metres of white hose to connect to either the solenoid valve or the salt water intake pump.

All toilets have connections for 20mm (3/4") intake hose and both 25mm (1") and 38mm (1 1/2") outlet hose.

Includes hygienic vitreous china marine toilet bowl in either standard compact size or larger household type bowl giving additional comfort. Includes contoured base, motor cover, fastening covers and stylish white enamelled wood seat & lid for easy cleaning and sleek appearance.

Options:

Quiet-Flush Toilets - SALT Water Flush - Includes a Par-Max 4 electric diaphragm pump, in-line pump filter, 2 metres of white 20mm connection hose and a modern 3-way toilet control panel.

Standard Compact Bowl Quiet Flush Salt Water Toilet - Toilet size : 350mm wide x 450mm deep x 350mm high

J10-125 12 volt Jabsco 37245-0092

J10-126 24 volt Jabsco 37245-0094

Large Bowl Quiet Flush Salt Water Toilet - Toilet size : 370mm wide x 500mm deep x 370mm high

J10-127 12 volt Jabsco 37245-1092

J10-128 24 volt Jabsco 37245-1094

Quiet Flush Toilets - FRESH Water Flush - Includes solenoid valve and breaker assembly to prevent backflow into the fresh water system and a modern 3-way control panel.

Standard Compact Bowl Quiet Flush Fresh Water Toilet - Toilet size : 350mm wide x 450mm deep x 350mm high

J10-121 12 volt Jabsco 37045-0092

Large Bowl Quiet Flush Fresh Water Toilet -Toilet size : 370mm wide x 500mm deep x 370mm high

J10-123 12 volt Jabsco 37045-1092
