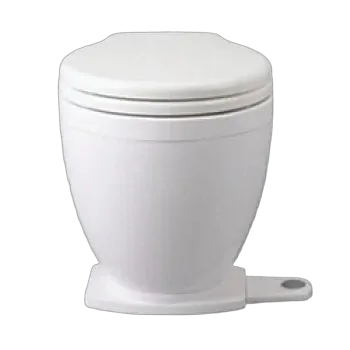

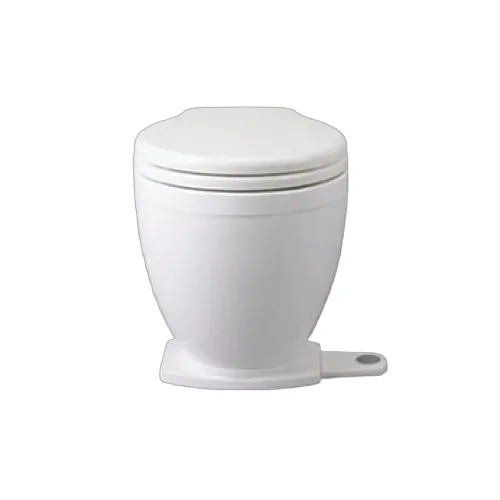

Jabsco LITE-Flush Toilet - 12 Volt

With Footswitch Control - Salt Water Flush (J10-152)

JABSCO LITE-Flush Electric Toilets - Salt Water Flush

J10-152 12 volt Lite-Flush with foot switch Jabsco 58500-0012

NEW lightweight space saving contemporary design electric toilet to give your bathroom a modern stylish look. The toilet has a high quality plastic outer casing with a ceramic inner bowl.

The innovative design offers low power usage and low water consumption to maximise holding tank capacity. They have an extremely quiet, virtually silent, integral raw water rinse pump and a non-clogging, macerating, waste pump system housed wholly within the toilet, to save space on board. The lite-flush has the same mounting footprint, fixing points and hose attachments as the Jabsco standard manual toilet for ease of installation and true retro-fit.



2 models are available -

Base Footswitch Model - left or right fitting. Uses an integral footswitch to control the operation of the toilet. Push once to fill bowl, push again to flush. Choice of wet or dry bowl.

Control Panel Model - uses a wall mounted multi-function one touch control pad offering 4 options - fill, quick flush, flush or empty

Some of the features of the Lite-Flush toilet are -

Lightweight (11 Kg) and compact, spacesaving stylish design

NEW efficient Jabsco technology gives virtually SILENT operation

Efficient, very quiet, Jabsco electric diaphragm water intake pump

Non-clogging large bore centrifugal flush pump macerates waste

Can use as little as 1 litre of water per flush

Choice of leaving bowl wet or dry after use

Choice of quick or full flush and variable settings

Crevice-free contours for hygiene and easier cleaning

Slow-close seat and lid won't bang shut

Anti-odour water lock in pump housing so bowl can be left dry

Low power consumption - less than 1 amp/hour per day

Easy retro-fit if replacing a Jabsco manual toilet

Toilet discharges up to 1.5 metres above the base of the toilet

Water intake pump self primes up to 2.4 metres

Easy access to flush and rinse pumps for servicing

Choice of footswitch or control pad operation

3/4" 19mm water inlet - 1 1/2" 38mm discharge outlet

Compact size : 373mm height, 402mm depth, 342mm / 401mm width

Options:

Lite-Flush Toilet With Wall Mount Control Panel - Includes complete Lite-flush electric toilet with a wall mounted multi-function "one touch" control pad with 3 metre link cable, fitted quick connector and heat shrink seal. The control pad has 4 easy one-touch settings - fill, quick flush, flush and empty. In addition the owner can set the control at any time so the bowl is left wet or dry.

J10-150 12 volt Lite-Flush with control panel (Jabsco 58500-1012)

J10-151 24 volt Lite-Flush with control panel (Jabsco 58500-1024)

Lite - Flush Toilet With Foot Switch Control - Includes complete Lite-Flush electric toilet with an integral foot operated switch. Simply press down once to add water to the bowl and press again to flush and discharge.

J10-152 12 volt Lite-Flush with foot switch (Jabsco 58500-0012)

J10-153 24 volt Lite-Flush with foot switch (Jabsco 58500-0024)
