Isotherm Classic Compact Systems - Air Cooled - 'L' Evaporator Type.
12-24 volt fan cooled refrigeration units suitable for mounting in new or existing ice boxes. The fan cooled compressor can be mounted up to two metres away from the evaporator box or plate. Units are supplied pre-gassed with re-openable quick-fit connectors for ease of installation. Low voltage cut off and radio interference suppression are fitted as standard. Temperature is adjusted by a rotary thermostat incorporating an on/off switch. Connection of the evaporator plate to the compressor requires only a 30mm hole to be drilled in the ice box compartment wall. Utilises R134A ozone friendly refrigeration gas.
| Part Number | Volume* Fridge/Freezer | Evaporator Type | Compressor Type | Average Power** Consumption | Maximum Power Consumption | Compressor Dimensions (H x W x L) | Evaporator Dimensions (H x W x L) | Weight |
|---|---|---|---|---|---|---|---|---|
| BLA-381507 | 125L/40L | 'L' | BD35F | 0.7 A/hr@12V | 3.5 amps@12V | 155mm x 160mm x 270mm | 210mm x 170mm x 400mm | 9kg |
* Freezer volume is calculated at approximately one third of the refrigerator volume capability. Freezer thermostat required if used as freezer.
** Indicates average power consumption at +6ºC in refrigeration space using a typical cooler box with standard insulation at an ambient temperature of +22ºC.
| SKU | 381507 |
|---|---|
| Barcode # | 9319786129272 |
| Brand | Isotherm |
| Shipping Weight | 9.1600kg |

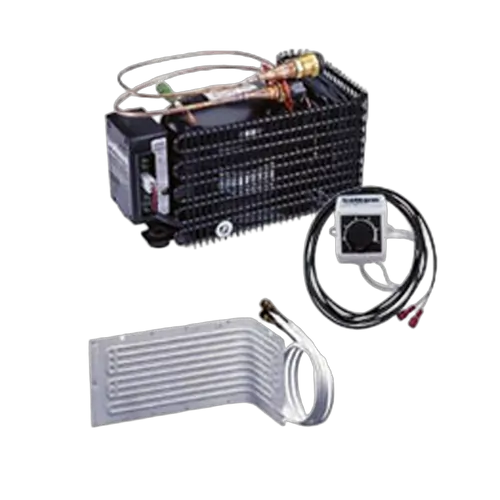

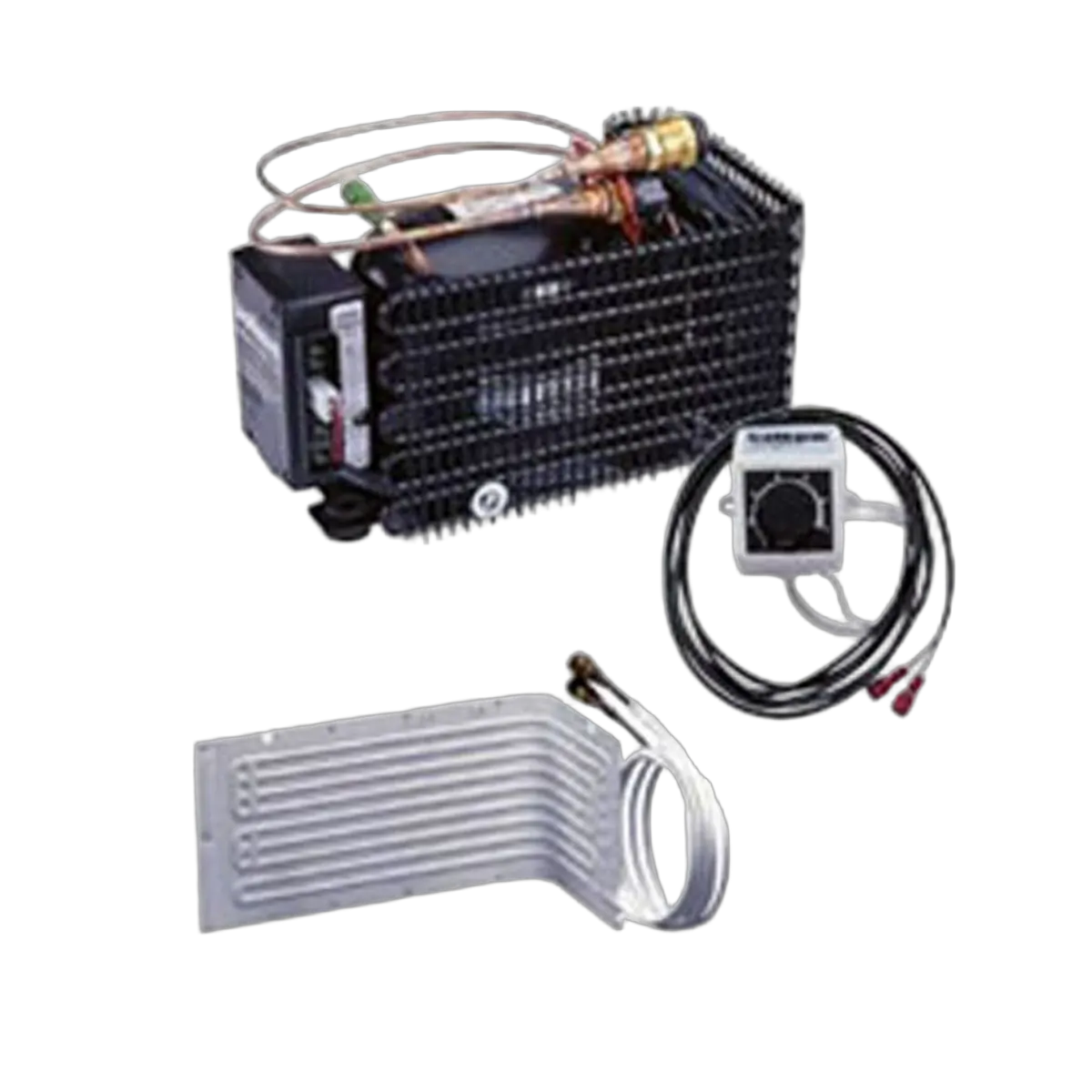

Isotherm Compact Classic System 125/40L L Evaporator
