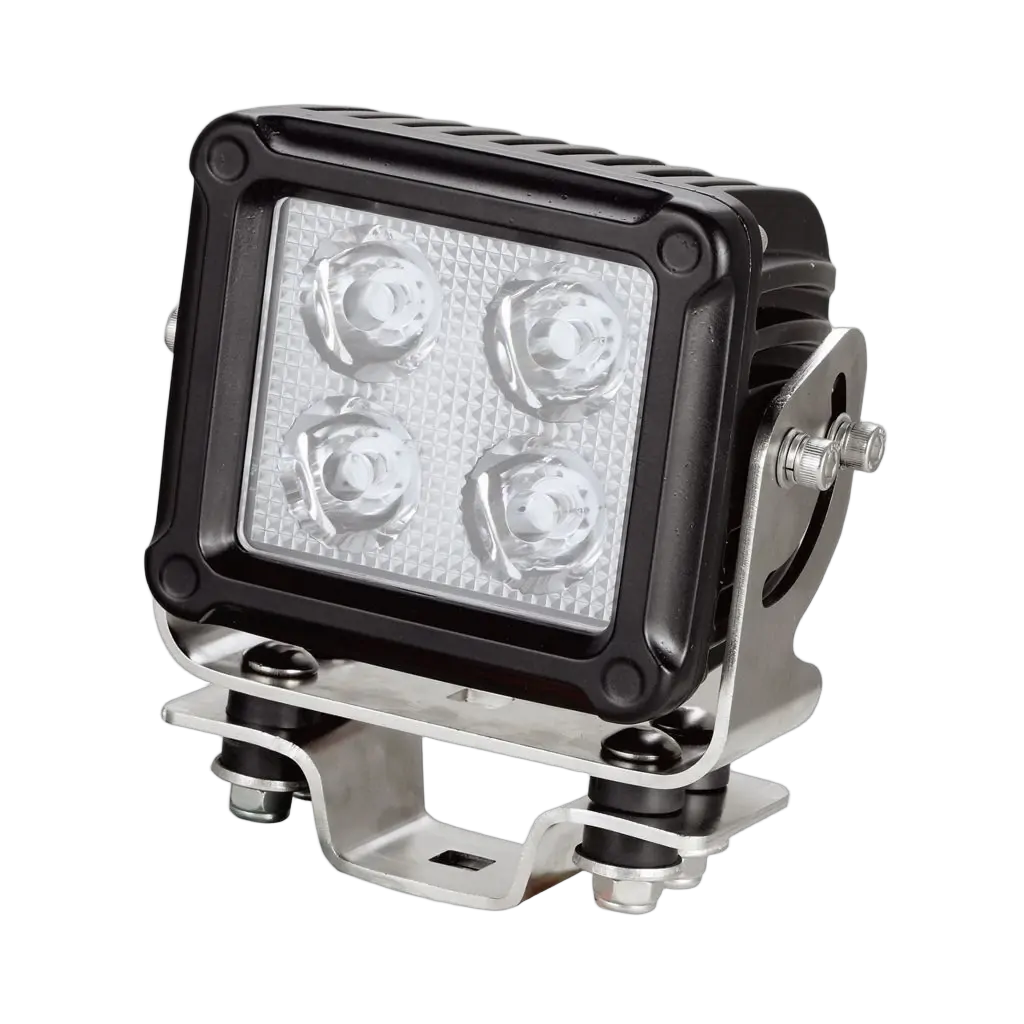

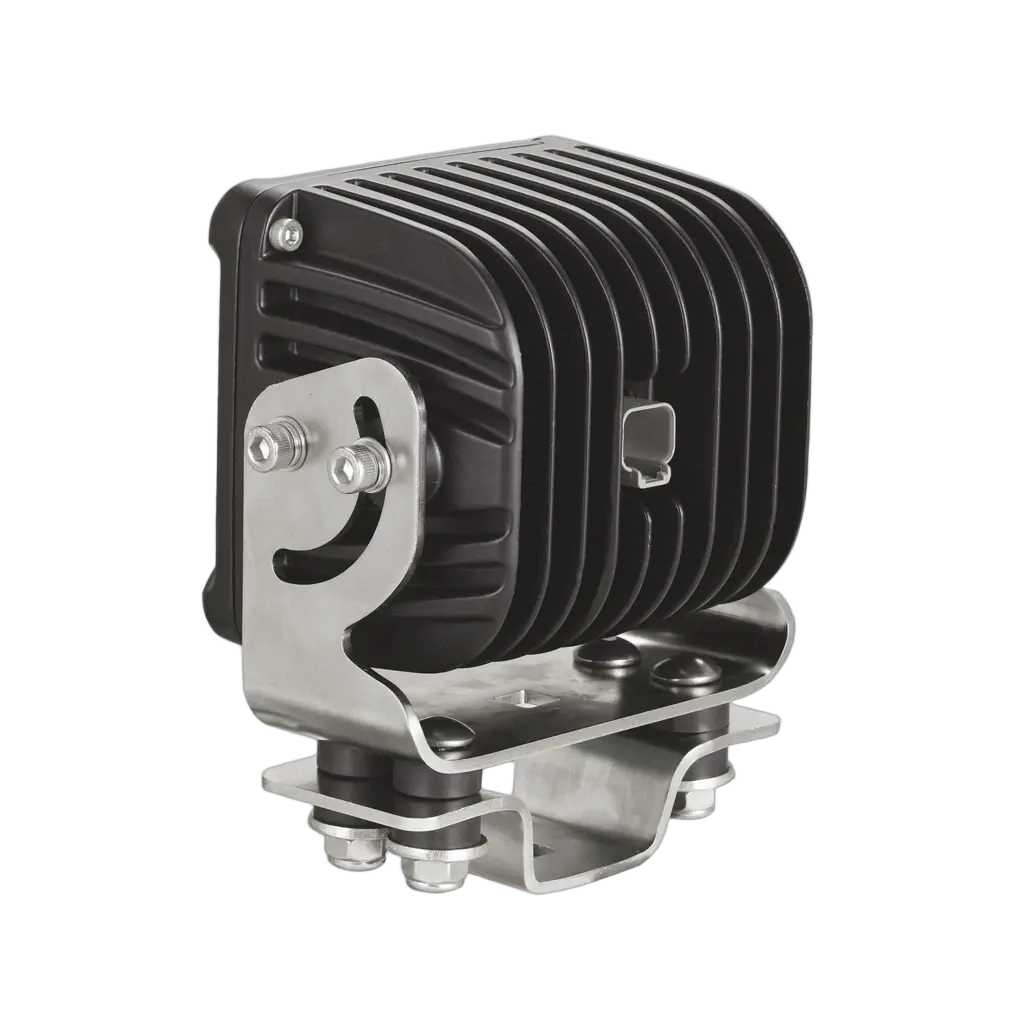

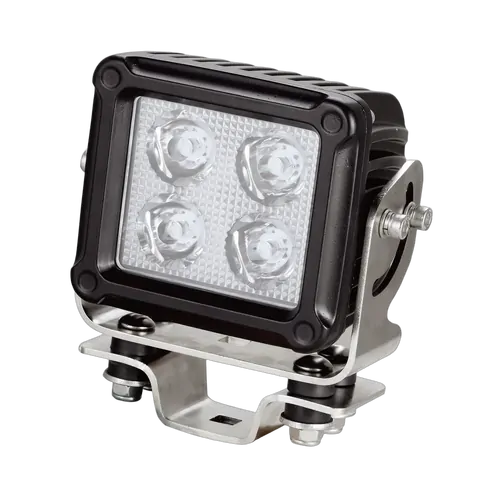

Ignite 4.9" Square LED Worklamp 9 - 36 Volt 60 Watt
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy Housing with integrated
6063 Extruded Aluminium Heat-Sink
Stainless Steel Single Bolt Rubber dampened Mounting Bracket and Stainless Steel Mounting Hardware

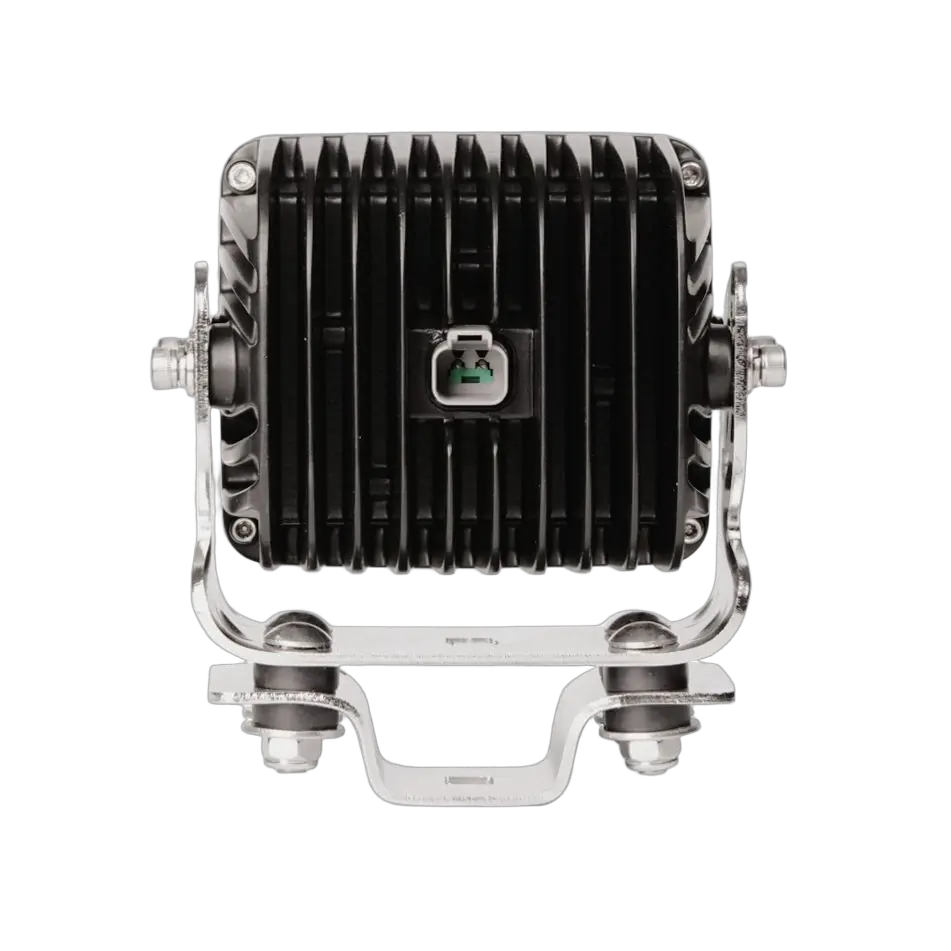

In-Built 2 Pin Deutsch Plug in back of housing
Over and Under Voltage Protection
Reverse Polarity Protection
15° Spot (Pencil) Beam Pattern
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R10, CE Approved and EMC Compliant, CISPR 25 Class 4 Certified
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
_,___ Effective Lumens, 6,380 Raw Lumens and 6,500K
4 x 15 Watt High Intensity LumiLEDs LED's
3.3amps @ 12 Volt and 1.65amps @ 24 Volt Current Draw
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Polycarbonate Lens
Light Transmittance >95%
Beam Type |
Spot |
Depth (mm) |
84 |
Height (mm) |
152 |
Mount |
Single Bolt |
No. of LED |
4 |
Series |
Other |
Shape |
Square |
Type |
LED |
Voltage |
Multivolt |
Watts |
60W |
Width (mm) |
126 |
SKU |
IWL415S |
Barcode # |
9323327945320 |
Brand |
Ignite |
