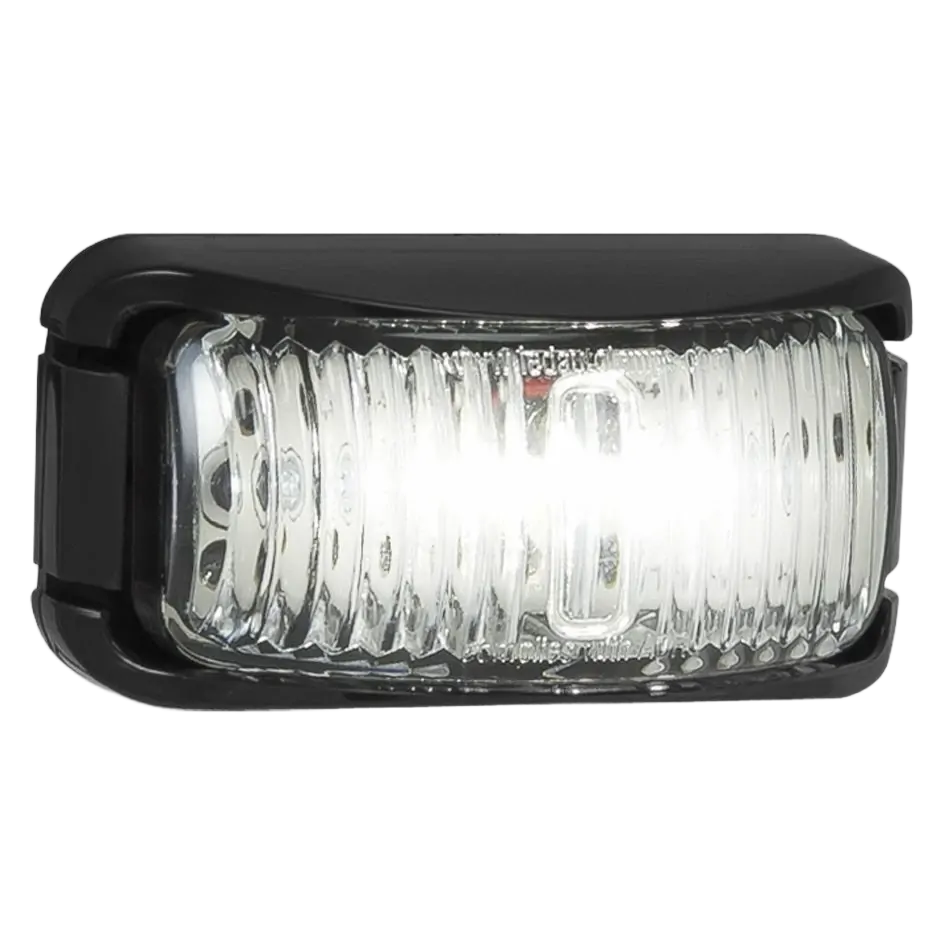

Ignite LED Front End Position Outline Marker Lamp 12/24 Volt
160mm Sheathed with 2 wires
10,000 Hours LED Lifespan
Fully encapsulated circuitry
Sealed against Dust and Moisture
ADR 49/00 Front Position Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
IP67 Rating
White Illumination
Blister Qty: 1
5 Year Warranty
.
ISL432CA is the matching Amber LED Front End Outline Marker Lamp Clear Lens
ISL432A is the matching Supplementary Side Indicator Lamp
ISL432AR is the matching 160mm Cable version Side Marker Lamp
ISL432ARB is the matching 2.5m Cable version Side Marker Lamp
ISL432R is the matching Rear End Outline Marker Lamp
2 x High Intensity White LED's
0.05amps at 12 Volt and 0.06amps at 24 Volt Current Draw
Clear Hardened Acrylic Lens with New Magnified pattern lens
Black ABS Plastic Housing with mounting screws included
Surface Mount, low mounting depth for easy installation
